STA-CR02 High temp 1260C with alumina ceramic fiber blanket
Product Introduction:
Aluminum silicate ceramic fiber blanket is manufactured from aluminum silicate fiber bulk spinning from kaolinite, alumina silicon dioxide and zircon sand, which been series processing of needling ,cutting and rollings, including 1260°C Standard, 1260°C High pure, 1360°C High Aluminum, 1430°C Zirconium ceramic fiber blanket.
The ceramic fiber blanket with the advantage of uniform quality, smoothly surface ,pure white color, completely inorganic ,good tensile strength, toughness and fiber structure, so there are no flames when heating for the first time , The working temperature ranges from 950°C to 1430 °C.

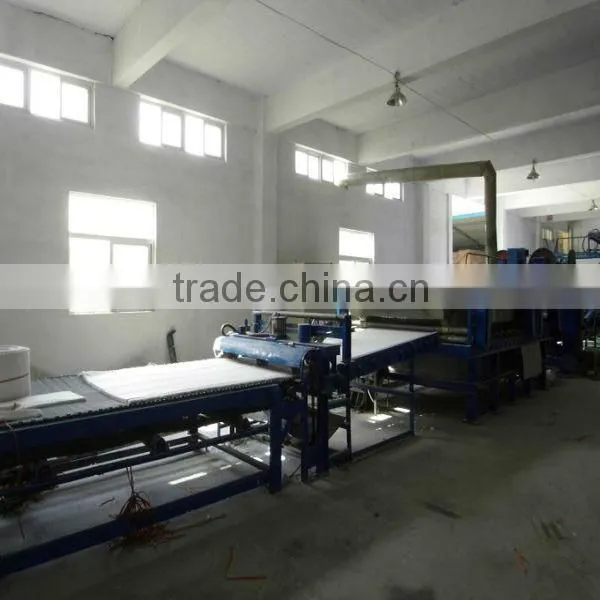

The production process is melting raw materials into liquid with an electric current power , unaffected by most chemicals(except hydrofluoric&acids and concentrated alkalic) , the dust and waste residue are cleaned by dirt catcher.
Now we have got approval of ISO9001:2000,and got many certificates like CE ,SASO,SGS and so on ,our insulation products have been selling to Germany ,UK, Italy, USA, Australia, Japan, Koran ,Turkey ,Israel, UAE ,Saudi Arabia, India ,Sweden ,Poland ,Argentina, Malaysia ,Philippines and other 30 countries.
Product Features
- Low thermal conductivity, low thermal capacity
- Excellent thermal stability and good resistance to heat shock
- Excellent tensile strength
- Good anti-stripping performance
- Good Sound-absorbing performance
- Non-brittleness material, good flexibility
- Excellent machining performance
- Resistance to wind and erosion, long service life
- Excellent heat insulation, fire prevention, sound absorption performance
Product Application

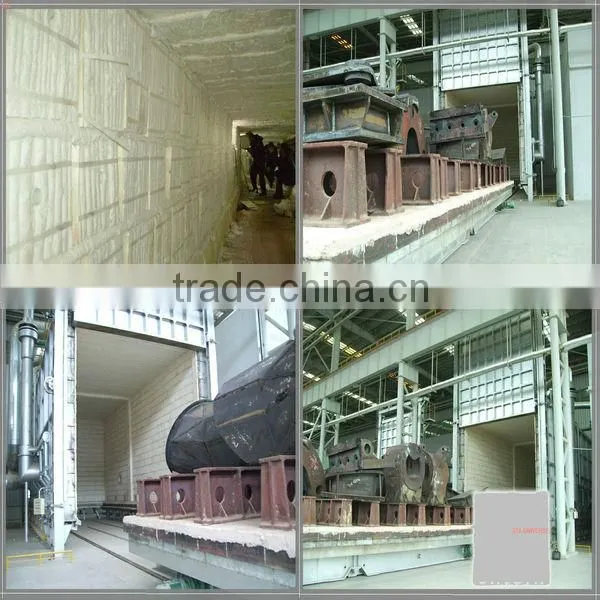

- The industry kiln, heating device, high temperature pipe lining
- Power boiler, gas turbine and heat and nuclear power insulation
- Chemical industrial high temperature equipment and heating equipment lining
- Fireproof and heat insulation for high building
- High-grade household appliances thermal insulation device
- High temperature filtration etc
Product Operation Method and Notice: The product has excellent machining performance, during the process, it can be cut into any necessary size, please wear protective measures when to operate, such as gloves, mask glasses , harmless to the human body, without any side effects.
Product Technical Specifications:
Item |
Standard |
High Pure |
High Aluminum |
Alu-Zirconium |
Zirconium |
|
Classification Temp (°C) |
1260 |
1260 |
1360 |
1360 |
1430 |
|
Working Temp (°C) |
≤1050 |
≤1100 |
≤1200 |
≤1200 |
≤1350 |
|
Color |
Pure White |
Pure White |
Pure White |
Pure White |
Pure White |
|
Bulk Density (Kg/m3) |
64-160 |
64-160 |
96-160 |
96-160 |
96-160 |
|
Permanent Linear Shrinkage(%) |
1000°CX24h≤3 |
1100°CX24h≤3 |
1200°CX24h≤3 |
1350°CX24h≤ 3 |
||
Thermal Conductivity (w/m.k)(128Kg/m3) |
0.09(400°C) 0.16(800°C) |
0.09(400°C) 0.16(800°C) |
0.12(600°C) 0.20(1000°C) |
0.12(600°C) 0.20(1000°C) |
0.16(800°C) 0.20(1000°C) |
|
Tensile Strength (Mpa)(128Kg/m3) |
0.08-0.12 |
0.08-0.12 |
0.08-0.12 |
0.08-0.12 |
0.08-0.12 |
|
Chemical Composition(%) |
AL2O3 |
45-46 |
47-49 |
52-55 |
45-46 |
39-40 |
AL2O3+SIO2 |
97 |
99 |
99 |
- |
- |
|
AL2O3+SIO2+ZrO2 |
- |
- |
- |
99 |
99 |
|
ZrO2 |
- |
- |
- |
5-7 |
15-17 |
|
Fe2O3 |
≤1.0 |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
|
Na2O+K2O |
≤0.5 |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
|
Size(mm) |
Length:3600 & 7200 &14640 Width:610 &1220 Thickness:8-60; As customers drawings. |
|||||
Package |
Plastic weaving bag and cartons |
|||||
