Oil Content Analyzer/Oil Content Meter

Name: Oil Content Analyzer/Oil Content Meter
Brand: Gathering
SKU: 111341701

US$ 1 - 1,000,000 MOQ: 1 Piece

Key Specifications

Place of Origin:

Chongqing, China

Brand Name:

Gathering

Model Number:

15PPM Bilge Alarm

Chongqing Gathering Marine Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Chongqing, China

Brand Name Gathering

Model Number 15PPM Bilge Alarm

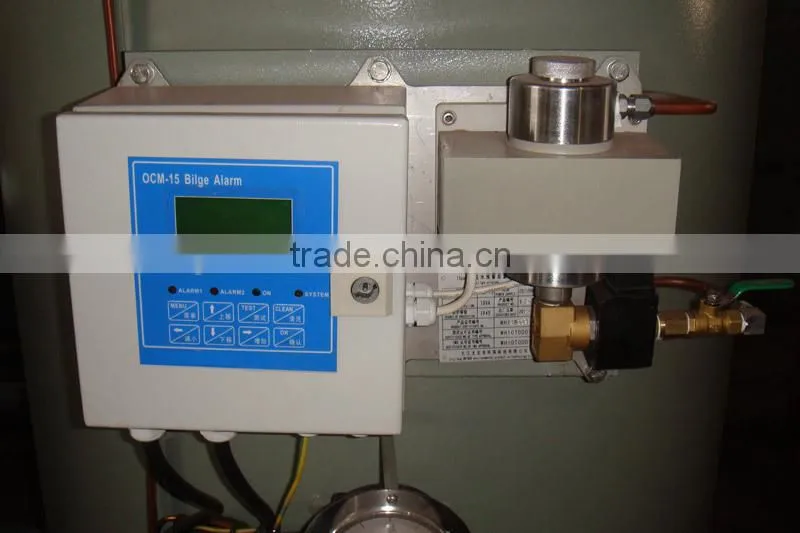

Bilge Alarm/ Oil Content Analyzer/ Oil Content Meter

Product Description

The bilge water alarm device has been designed specifically for use in continuous monitoring of

oil-in-bilge water, 15 ppm alarm and control of discharge, detection, memory and enquiry of alarm status. It is

applicable to detect boiler condensate water. And it applies to oil and chemical industries as well.

Compact and robust construction

Low maintenance

Small dimensions

Easy installation

Continuous on-line work

Works adjustment

Easy zero adjustment via push buttons (+-5ppm)

Details

Range:	0 – 30 mg/l can exceed to 50mg/l
Accuracy	Better than 5mg/L
Linearity	better than 2 %
Display	LCD display
Power Supply:	220VAC/110VAC ± 10%
Consumption:	10 VA
Alarm Points:	1-15ppm
Alarm Points works set:	15ppm
Alarm 1 delay	0-10 second.
Alarm 2 delay	0-10 second
Alarm output	Two way relays output
Alarm relay output contact value	5A, 250VAC
Alarm relay output feedback signal test	Two way working status contact testing
Alarm Indication:	Red LED's
Output Signal:	4 - 20 mA, reversible Ri < 500 ohm
Sample Water Pressure:	0.01 -6 bar
Sample Flow:	approx. 0.2 - 4 l/min depend on pressure
Ambient Temperature:	0 to + 55° C
Sample Water Temperature:	+ 1 to + 80° C
Size (over all):	360 mm W x 240 mm H x 105 mm D
Degree of Protection:	IP 45
Weight:	8kg
Pipe Connections:	R 1/4" Female
Standard	IMO.Res.MEPC.107(49)
