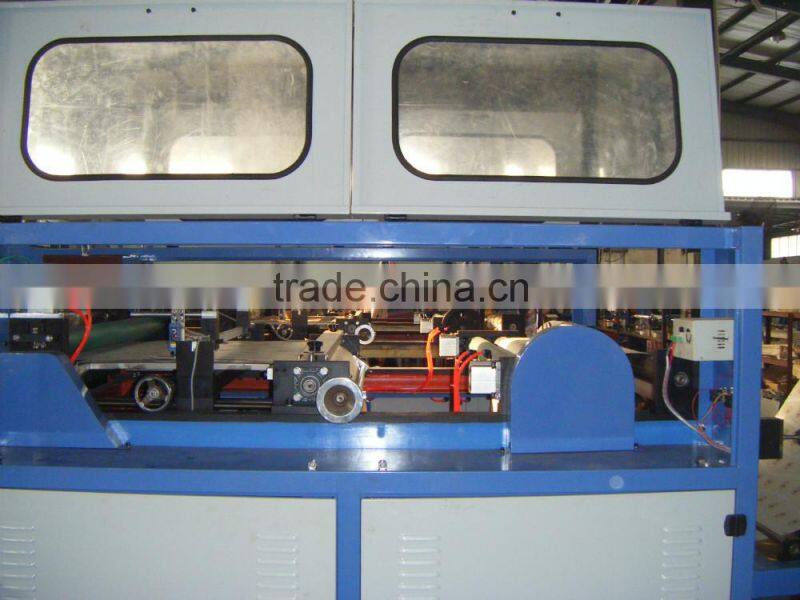

2015 Hot Sale Autopaper cup die cutting machine
Use:
Use range of the die cutting machine is applicable global post-press general mechanical equipment. For example paper cups, sugar smoke wine packaging, food packaging, aquaculture packaging, daily chemical packaging, agricultural and sideline products industry packaging, etc.
Features:
It adopts micro-computer, human-computer control interface, servo positioning, alternating current frequency converter, automatic counting, manual pneumatic lock plate, photoelectric correcting deviation system, electromagnetic clutch, centralized oil lubrication, overload protection and distinctive gearing. So it guarantees smooth operations of returning paper and feeding paper, precise positioning and orderly withdrawing. All the key parts and controls of the machine are imported products and finish machining. Such installation can realize the machine in steady pressure, precise positioning, smooth moving, safety and reliability during the machine's operation.
Main technical parameters:
Model |
AMQ 930 |
Press mark max. area |
880*500mm |
Press cut line length |
<25 |
Working speed |
80-110times/min |
Main motor power |
7.5KW |
Applicationpaper |
150~450g/m2 |
Air source |
1.0m3/min; 0.8Mpa customer-owned |
Weight |
6T |
Dimension |
4550mm*2100mm*1700mm |
