CLC-Q2 High Speed Flexo Printer Slotter Die-cutter Stacker Machine From GUANGZHOU
- GUANGZHOU OR SHENZHEN
- T/T D/P D/A
You May Like
-
CLC-Q5 High Speed Carton Box Making Machine Prices Guangzhou
-
CLC-Q5 Guangzhou CLC Machinery Carton Box Making Machine for Corrugated Industrial
-
CLC-Q6 High Performance Corrugated Carton Box Making Machine Price From Guangzhou CLC Machinery
-
CLC-Q2 Guangzhou CLC Machinery Carton Box Making Machine Prices
-
CLC-Q5 Flexo Printer Slotter Die-cutter Stacker Carton Box Making Machine Price From CLC Machinery
-
Semi Automatic Gluing Machine/ Cardboard Glueing Machine(HL-2600)
Product Details
| Type | Automactic Carton Box Printing Machine |
Product Description
CLC-Q2-0920/1224/1424-4SD China Top Sale Automatic Flexo Printer Slotter Die-cutter & Auto Hydraulic Stacker, Corrugated Carton Box Making Machines, Case Maker, from GUANGZHOU CLC PACKAGING&CARTON MACHINERY CO., LTD, Exported to Asia (Malaysia, Thailand), Middle East (Jordan, Saudi Arabia), Russia, Africa (South Africa, Mali, Guinea), South America, Mexico, USA & etc...
♦ Function
Automatic Flexo Printer Slotter Die-cutter With Stacker is used to make complete corrugated cartons automatcally, this machine can finish Feeding, Printing, Slotting or Die-cutting,stacking at one time, this machine can greatly improve the working efficiency, reduce cardboard wastage, labor cost, and increase the benefits of manufacturers.
♦ Features
1. The machine adopted touch screen at each unit of machine that could be adjusted automatically . It will cut lots of time while operating. Each unit is inter-connected by PLC, and date setting in touch screen is able to order the specific action. Easy-view and conveniently adjustable is available.
2. 250 sheets per minute when runs at the top speed. It could be efficient to produce one hundred thousand pieces of carton of daily productivity.
3. It can connect with Auto Pre-Feeder Equipment or Auto Strapping Machine, 3-5 workers for whole production line is available.
4. Adopts excellent materials and parts. All the rollers are chrome plated and harden treated; all the gears are ground by Germany High-precise gear grinding machine, the precision grade up to 6.5; all the bearings adopts JAPAN NSK/NTN/IKO.
5. All the motors & electric parts adopts international brands, such as HL, CPG, EMERSON, SCHNEIDER, OMRON and etc...
♦ Technical Parameters

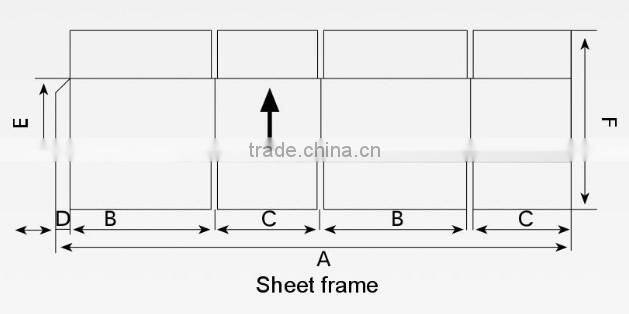

Model Technical date (MM) | CLC-Q2-0920 | CLC-Q2-1224 | CLC-Q2-1628 | |||
Sheet Length (A) | Max. Size | 2200 | 2400 | 2800 | ||
Min. Size | 700 | 720 | 850 | |||
Sheet Width (F) | Continuous Feed | 900 | 1200 | 1600 | ||
Skip Feed | 1200 | 1400 | 1800 | |||
Min. Width | 280 | 350 | 480 | |||
Max. Printing area (FxA) | 900x2000 | 1160x2400 | 1600x2800 | |||
Slotting Space
| Reverse knife | Max. size(B) | 900 | 1100 | 1240 | |
Min. size(B) | 250 | 260 | 320 | |||
Max. size(C) | 750 | 950 | 1350 | |||
Min. size(C) | 100 | 100 | 100 | |||
Normal knife | Max. size | 850 | 1040 | 1040 | ||
Min. size | 150 | 160 | 160 | |||
Slot Depth | Max. Size | 250 | 320 | 450 | ||
Box Height (E) | Min. Size | 110 | 110 | 160 | ||
Max. Die-cutting Area | 850x1950 | 1150x2350 | 1530x2750 | |||
Working Speed | Top mechanical speed ( pcs/min.) | 220 | 200 | 160 | ||
Standard Producing speed ( pcs/min.) | 150-200 | 120-180 | 80-130 | |||
Thickness of Paperboard | 2-11 | 2-11 | 2-11 | |||
Thickness of Printing plate | 7.2 | 7.2 | 7.2 | |||
CLC-Q2 Serials Each Unit Discreption:
Feeding Unit
Mechanical Lead edge feeder
Integrated computer and Main control panel available in the feeding unit.
Upper vacuum dust removal system & dust brusher.
Feeding gaps and front stop are manual with self-lock. The side guider, back stop is motorized.
- Units opening & closing is motorized and pneumatically locked. And can be auto ZERO.

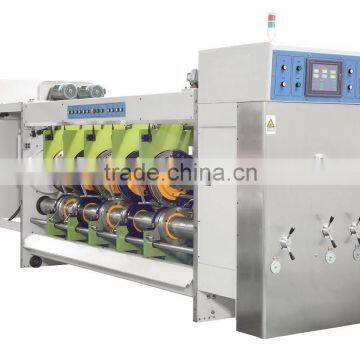

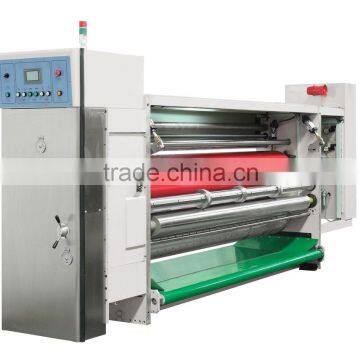

Printing Unit
Rubber Roller or Chambered doctor blade system is requested.
Roll-To-Roll transfer, The surface of lower pressure roller was treated with sand blasting.
Steel anilox roller or Ceramic anilox roller is requested.
Variable frequency drive control of PHASE, auto ZERO and auto RESET. Transversal position is motorized with digital display.
Inking Roller, Lower pressure Roller, Pull Roll is manual adjusted by self-locking.
- Brake function is available when machine separating.

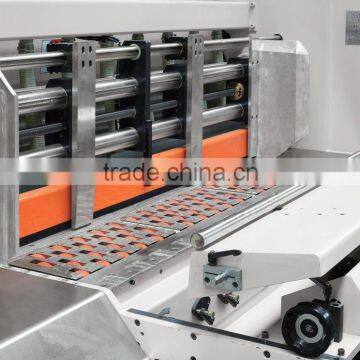

Slotting Unit
Six shaft transfer: Pre-creaser- Creaser- Slotter, The shafts were precisely dual-ground.
Single–Shaft slotting is adopted, with precise alignment of front and back knife.
Transversal position, Box height and PHASE are motorized with digital display on the central control screen.
Feeding gaps is manual adjusted with self-lock.
Auto ZERO is available.
- Order management is available, it can save 999 orders.
Die cutting unit
Shaft-head was treated with lock structure, not welding, given strong capacity of bearing pressure.
Hardened steel cover with pneumatic-lock cylinder set at upper roller can hence durability of using.
Mechanical differential structure is applied for the adjustment of transverse register. The adjustment range is ±30mm.
Adopts mechanical line speed compensating system, which min. the error of die cutting.
PHASE, Transversal position is motorized with digital display and feeding gaps are manual adjusted with self lock.
- The gap of die cutting cylinder is motorized with digital display.
§ Following items can be Featured as customers requests:
√ Back Kick Feeder
√ Ceramic anilox roller

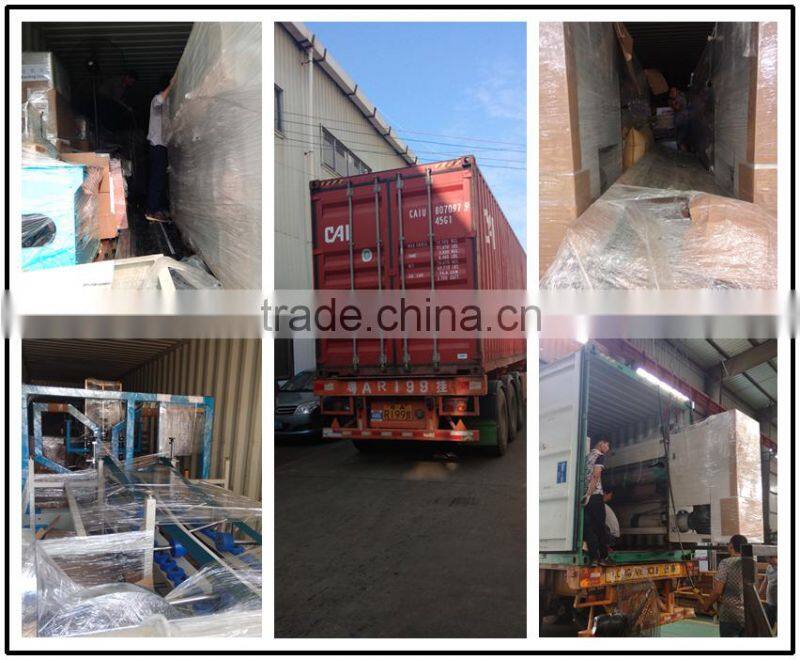

♦ Packaging:
The machine will be saperated in to each unit, and each unit will be packed independently with iron base, cardboard, and bopp film, and will be fixed well inthe container.
♦ Shipping:
A good & fast shipping company will choose by us to make sure less troubles during delivery, or customer can indicated which shipping company he prefer.
♦ Before Sales Service:
1. We will study and reply your Inquiries, Email or Messages within 24hours; Will provided you with pressional suggestions.
2. Will guide you to visit some of our customer's factory to checking our machine working conditions.
3. Will meeting with Both Electric and Mechnical Engineer for professional expleination of our machines, any questions will be answered by them.
4. Customer factory reference is avilable if we have customer in your region.
♦ After Place Order:
1. Will offer fundation drawing, and other necessary documents once received the deposit from customer.
2. Will follow with manufacturing day by day, and send your machine pictures during assemble regularly.
♦ Delivery the machine:
1. Will delivery the machine on time, and choose the good shipping company to avoid unnecessary troubles.
2. Will supply all the documents for custom clearance, our company CLC Machinery have ability for exporting and importing.
3. Will follow with customer for custom clearance in case any support needed.
♦ After Delivery (After Sales Service):
1. Will dispatch our Engineer for Installation & Training for 15 days for Flexo printer machine.
2. Will delivery some Quickly Consumble Parts when delivery the machine.
3. If any problem happened during machine working, once received customer's email, will reply it within 1hour to check details problems, and will teach customer how to solve this problem within 24hours; if any spare parts or damaged parts needed for this machine, will send it within 24hours in we have in stock, if not will send it within 3days.
4. Quality Warranty: One years. Consumable parts excluded. CLC will provide its whole life service for our valuable customers.
♦ Brief Introuduce of CLC Machinery:
Guangzhou CLC Packaging&Carton Machinery Co., Ltd is a professional manufacturer of Carton Box Making Machines, such as Flexo Printer Slotter Die-cutter Inline Folder Gluer & Counter Ejector (Case maker, Flexo Inline Folder Gluer), Flexo Printer Slotter Die-cutter & Auto Stacker, Automatic Folder Gluer (Stitcher), Pre-feeder, Semi-auto Stitcher, Semi-auto Gluer, Thin Edge Slitter and etc. since 2003.
Our Cohesive &Professional R&D group lead by two Taiwan Specialists and several Chinese Senior Engineers, dedicated to develop Fully Automatic High Qality, high precision Printing Machine and Economic Printing machine for our customers. We acomply with ISO9001:2000 and adopts 6S for factory managment.
CLC Machinery received praise from both overseas and domestic customers, our machines was widthly exported to Malaysia, Thailand, Russia, Midd-East, South American, USA, South Africa and etc...
We are warmly welcome you to visit us at any moment.
Pictures:

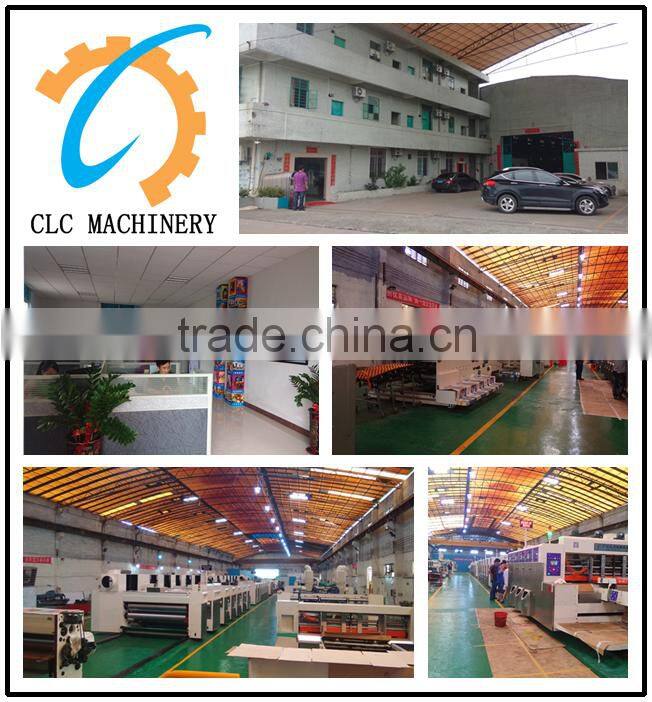

Picture of Guangzhou CLC Packaging&Carton Machinery Co., Ltd
Picture of Guangzhou CLC Packaging & Carton Machinery Foshan Branch Co., Ltd

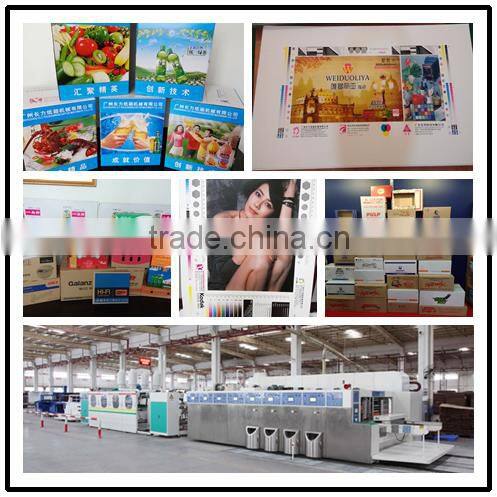

Customer's visiting, Exhibition, Installation
Printed Sample&Carton Smaple
♦ Why choose CLC Machinery?
1. CLC Machinery is located in Guangzhou, which is the initial city for exporting & importing products, technologies.
2. CLC Machinery is a professional manufacturer for Carton Box Making Machines since 2003, and we are working together with Two Taiwan experienced Specilists for continuously improvement..
3. Machine quality warranty, CLC Machinery comply with ISO9001:2000 internation standard, and adapted 6S management system, with CE certificate, and avilable for SGS, BV.
4. Service Guarantee, reference to "Our Service".
♦ Is CLC Machinery factory or trading company?
Guangzhou CLC Packaging Machinery is Located in Pingyicun Industrial Zone, Shibi Street, Panyu District, Guangzhou, we manufacturer, export carton box making machines with our own export certificate.
♦ How can we trust you & your company?
We are warmly welcome customer to visit our factory before place order, in this case we can know more about each other, and also strongly invite customer to inspect the machine before delivery to make sure the products that we plan to ship is customer's actual order, and we will take pictures of all the detail delivery.
♦ How to find CLC Machinery?
