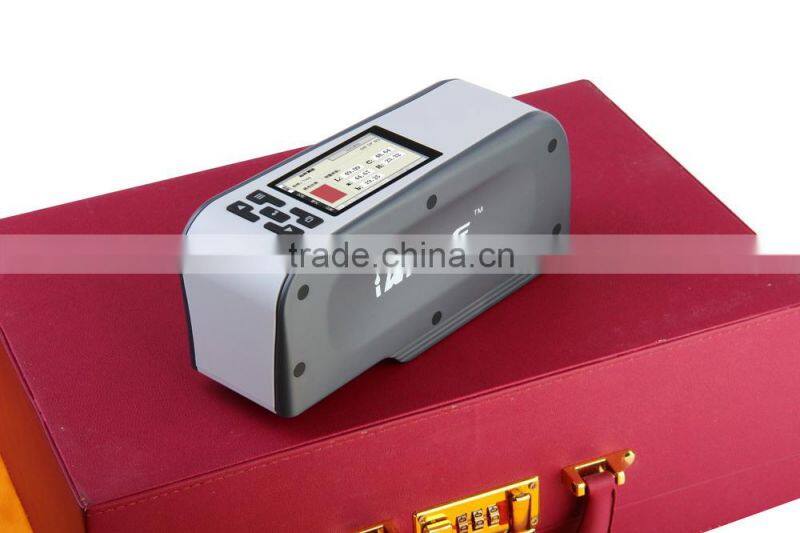

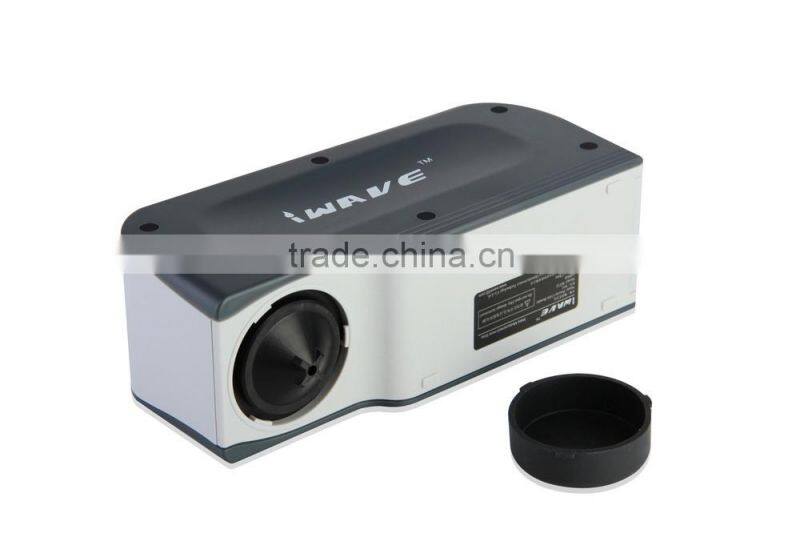

High-end Handheld Colorimeter Digital Electronic Colorimeter
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
iwave
Model Number:
WF-32
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Loop Security EAS LanyardUS$ 0.01 - 0.1MOQ: 10000 Pieces -
EAS Accessories EAS LanyardUS$ 0.01 - 0.1MOQ: 10000 Pieces
-
New Arrival Eas Short LanyardsUS$ 0.01 - 0.1MOQ: 10000 Pieces
-
16mm/19mm P07 Eas Tag PinNegotiableMOQ: 10000 Pieces
-
Cheapest Portable Colorimeter Cheapest ColorimeterNegotiableMOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
iwave
Model Number
WF-32
Power
Electronic
Usage
Paper Testing Instrument
Portable Colorimeter
Application:
The colorimeter is widely used in plastic, metal, electronic, paint, ink, textile, garment, printing and dyeing,food,
medical, cosmetic, automotive, toy...industries.
It with the below advantages:
Built-in white plate parameters: No need to calibrate each time which realize rapid measurement.
New Integrating Sphere Optical Path Design:Eliminating the stray light of main optical path and auxiliary optical
path. Having the advantages of the highest measurement stability and precision.
Equipped with rechargeable high-capacity Li-ion battery.
Configure software: Connect PC computer to realize more functions.
Cross Platform Measuring Aperture &Small Area Measuring Aperture
Technical Specifications:
| Model | WF32 |
| Display Mode | CIELAB,CIELCH,CIEXYZ,CIELUV,HunterLAB,sRGB |
| Color Difference Formula | E*ab,ECMC,EISO,ECIE94,EFCMⅡ,ELuv,Ehunter,EsRGB |
| Yellowness and Whiteness | Ganci whiteness, ISO brightness, YI yellowness |
| Illumination Condition | CIE Recommendation:8/d 45/0 Optional |
| Light Source | LED blue excitation |
| Sensor | Photodiode array |
| Measurement Caliber | φ4mm/φ8mm/φ16mm Alternative |
| Measurement Condition | Observer:CIE 10° Standard observer Light source:A C D50 D65 F2(CWF) F7 F11(TL84) F12(U30) Contain light way:SCI SCE |
| Measurement Range | L: 0 to 100 |
| Repeated Accuracy | E<0.03 (take the deviation average after 30 times measuring the whiteboard) |
| Table Difference | E<0.2 |
| Measurement Interval | 0.5 Sec. |
| Average Measuring Function | Average measuring frequency: 1-32 times |
| Color Simulation Function | yes |
| Storage Capacity | Type sample data : 100 with testing sample data: 20000 Whiteness/yellowness data: 200 |
| Language Patterns | English/Simplified Chinese/Traditional Chinese |
| Quality Control Software | <Color-Analysis System> software |
| Battery Charging Time | 8 hrs |
| Battery | Li-ion battery, 5000 times Measurement |
| Lifetime of Bulb | 5 years more than 1.6 million measurements |
| Display Screen | TFT true color 2.8inch@(16:9) Resolution ratio:400x240 |
| Interface of External | USB2.0 (USB-B)- data communication with<color analysis system>software RS-232 (115200bps)- connected with micro printer |
| Working Temperature Range | 0℃-40℃(32℉-104℉) |
| Storage Temperature Range | -20℃-50℃(-4℉-122℉) |
| Humidity Range | Relative humidity less than 85%,without condensation |
| Weight | 700g |
| Size | 199*68*90mm |
| Size of Exterior Package | 400*240*340mm |
| Standard Accessories | Standard whiteboard/Standard black cavity/3000mAH Li-ion battery/AC adapter/USB Data line/CD<Color analysis software>/User manual/Warranty card |
| Optional Accessories | Flour measuring device/Liquid measuring device/Micro printer |
