Cheapest Portable Colorimeter Cheapest Colorimeter

Name: Cheapest Portable Colorimeter Cheapest Colorimeter
Brand: iwave
SKU: 111281331
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

iwave

Model Number:

WR-10

Hangzhou East Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name iwave

Model Number WR-10

Power Electronic

Usage Paper Testing Instrument

Portable Colorimeter

Application:

The colorimeter is widely used in plastic, metal, electronic, paint, ink, textile, garment, printing and dyeing,food,

medical, cosmetic, automotive, toy...industries.

It with the below advantages:

Built-in white plate parameters: No need to calibrate each time which realize rapid measurement.

New Integrating Sphere Optical Path Design:Eliminating the stray light of main optical path and auxiliary optical

path. Having the advantages of the highest measurement stability and precision.

Equipped with rechargeable high-capacity Li-ion battery.

Configure software: Connect PC computer to realize more functions.

Cross Platform Measuring Aperture &Small Area Measuring Aperture

Technical Specifications:

Model	WR-10
Color Space	CIELAB
Color Difference Formula	E*ab
Measurement Caliber	φ8mm
Illumination Condition	CIE Recommendation:8/d
Light Source	D65
Sensor	Photodiode array
Observer	CIE 10° Standard observer
Measurement Range	L: 0 to 100
Repeated Accuracy	E<0.08
Table Difference	E<0.2
Measurement Interval	1 Sec.
Storage Capacity	Type sample data : 100 groups with testing sample data: 100 groups
Lifetime of Bulb	5 years more than 1.6 million measurements
Display Screen	TFT true color 2.8inch@(16:9)
Language	English/Simplified Chinese
Interface of External	USB2.0 (USB-B) RS-232 (115200bps)
Working Temperature Range	0℃-40℃(32℉-104℉)
Storage Temperature Range	-20℃-50℃(-4℉-122℉)
Humidity Range	Relative humidity less than 85%,without condensation
Weight	700g
Size	1996890mm
Package Size	400240340mm
Battery Charging Time	8 hrs
Battery	Li-ion battery, 5000 times Measurement

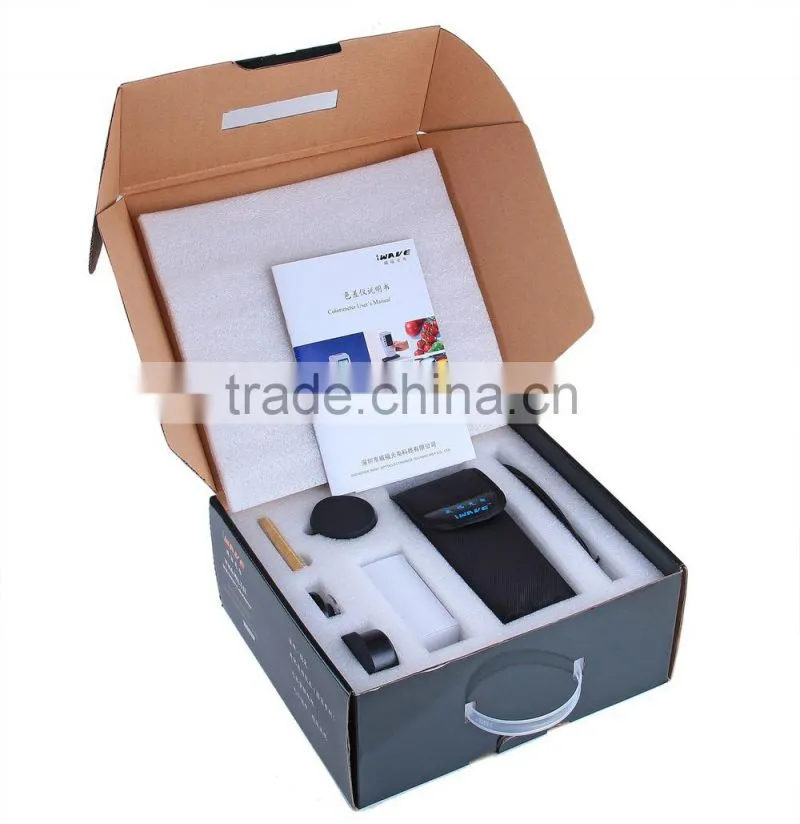

Standard Accessories	AC adapter/ 3000mAH Li-ion battery
Optional Accessories	Flour measuring device/Micro printer
