ISO CE ETCR7000B Large Caliber Clamp Current Meter

Function

Measure AC leakage current, current, there-phase, voltage

Power

6V DC(LR6×4 alkaline dry batteries, continuously working for 12 hours)

Test Mode

Clamp CT, integral mode

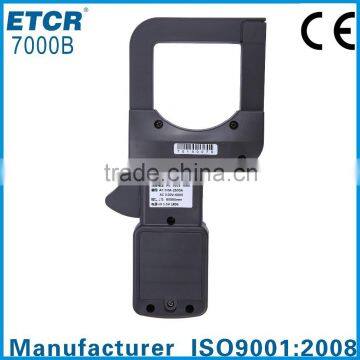

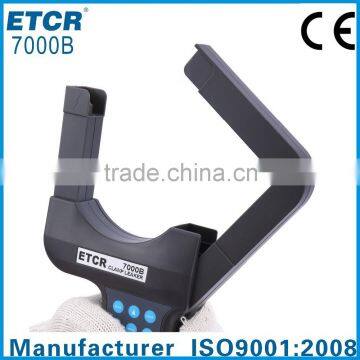

Clamp Size

80mm×80mm(can clamp electric cable of φ80mm, or 96mm×4mm flat cable and steel earth wires)

Current Range

AC 0.0A~2500A

Resolution

0.1A

Voltage Range

AC 0.00V~600V

Measurement Accuracy

(23℃±3℃,below70%RH,  measured wire at the center of the clamp)

0.00mA~300A: ±1.5%±3dgt

300A~1200A: ±2%±3dgt

1200A~2500A: ±3%±3dgt

0.00V~600V: ±1.5%±3dgt

Data Storage

200 sets, “FULL” symbol indicate the memory is full

RS232 Interface

With RS232 interface, download data to computer for analysis and management

Frequency

50Hz ,60Hz automatic identification

Sample Rate

About 2 times/second

Line Voltage

Below AC 600V line measurement

Display Mode

LCD: 128dots×64dots; Display area: 43mm×29mm

Meter Size

Length 275mm×Width 145mm×Height 40mm

Data Hold

“HOLD” symbol appears

Automatic Shutdown

Automatically shutdown about 15 minutes after power on to reduce battery consumption

Weight

1kg(with batteries)

Working Current

50mA with enabled backlight; 25mA with disabled backlight

Humiture

-10℃~40℃; below 80%rh

Insulation strength

AC3700V/rms.(between core and shell)

Safety Specifications

IEC1010-1, IEC1010-2-032, 2 class of pollution, CAT Ⅲ(600V)

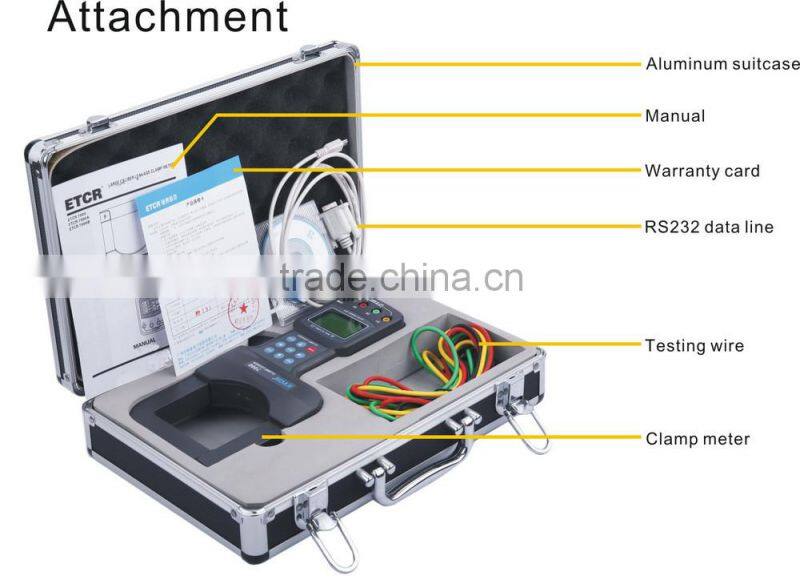

Accessories

Main Unit: 1 pc; Test Line: 4 pcs; RS232 Data Line: 1 pc; Disk: 1 pc; Battery: 4 pcs(AlkalineDryBattery LR6); Case: 1 pc; User Manual: 1 pc; GuaranteeCard: 1 pc; Certification: 1 pc.
