HT206B Multimeter Clamp Meter Multimeter Current 2000V AC Digital Clamp Meter

FOB Price

Negotiable

1 (Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

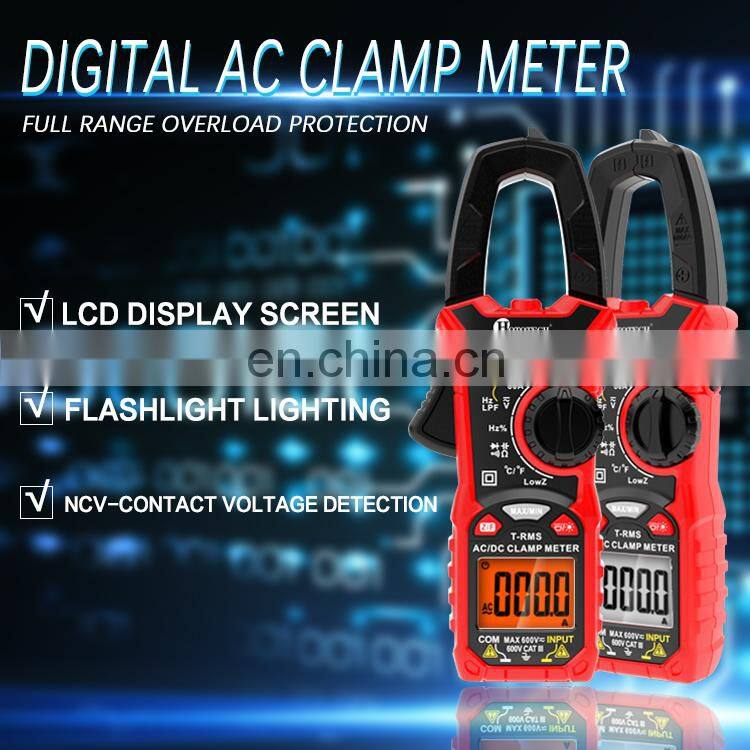

True RMS Digital AC Clamp Meter Pocket Size clamp on earth tester

HT206B-AC Digital Clamp Meter
Specifications	Range	Accuracy
		HT206B
DC Voltage	600V	/
	600mV/6V/60V/600V/600V	±(0.5%+3)
AC Voltage	600V	/
	6V/60V/600V/600V	±(1.0%+3)
AC Current	2A/20A/200A	±(2.5%+5)
Resistance	2KΩ/20KΩ	/
	600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ	±(1.0%+3)
Capacitance	10nF/100nF/1uF/10uF/100uF/1mF/10mF	±(4.0%+3)
Frequency	10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz	±(0.5%+5)
Duty	1%~99%	±(1.0%+2)
Temperature(℃/°F)	-40℃~1000℃	±(1.0%+2)
	-40°F~1832°F	±(1.0%+2)
Counters		6000 counters
Auto/manual range		Auto
Continuity(sound and light alarm)		√
Diode test		√
Data hold		√
NCV(sound and light alarm)		√
Backlight		√
Flashlight		√
Low battery indication		√
Auto power off		√
True RMS		√
LPF		√
Max/MIN		√
LowZ		√
Power	2*AAA(1.5V)batteries
Weight	Appro*.260g
Size	193mm73mm34mm
Safety rating	EN61010-1,-2-030 EN61010-2-033,EN61326-1 CAT III 600V
