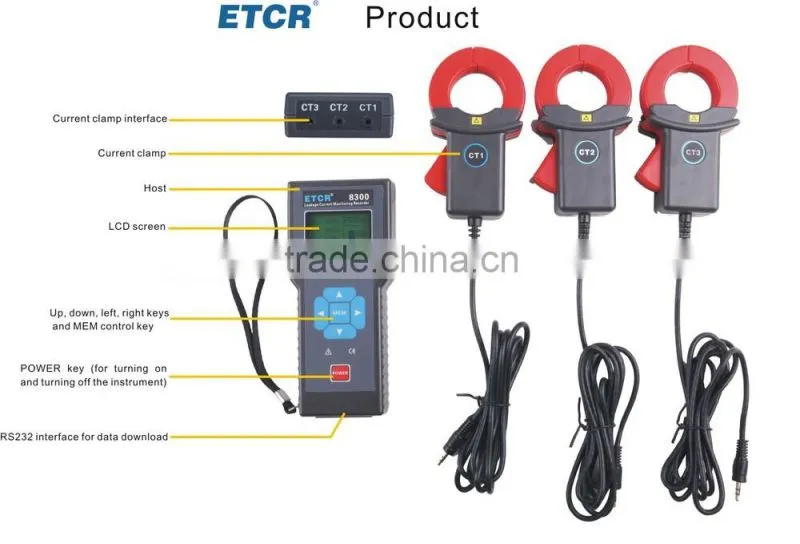

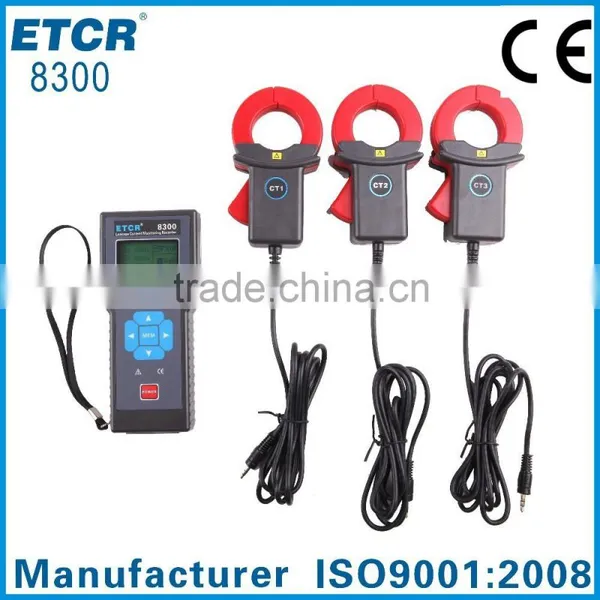

ETCR8300 Three Channel Leakage Monitoring Recorder
Product Information
Product Features
1. Monitoring three-channel AC leakage, current measurement, online monitoring, insulation fault detection, line maintenance
2. Ultra-large capacity: data storage for 3900sets;

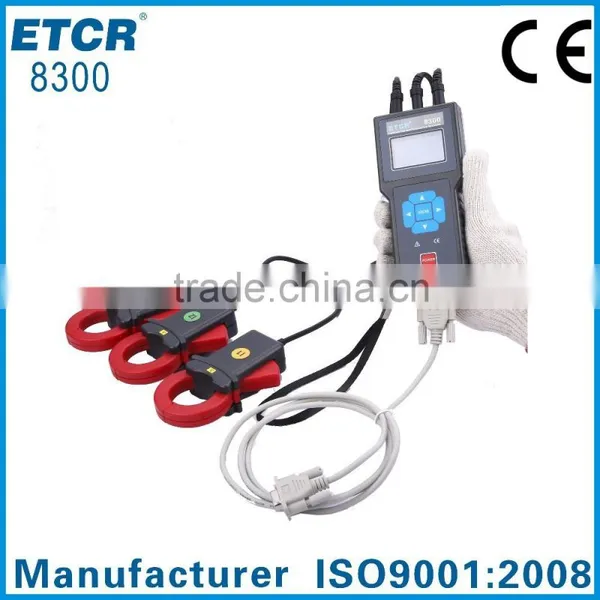

3. RS232 interface data upload function
4. Patent [ZL 2008 2 0188823.1]
5. Long time continuously working: 240h
6. Automatic recording according the time have set within 1~99mins
7. Range: 0.0A~500A
Model Difference
Model |
Range |
Resolution |
Channels |
Clamp size |
ETCR8000 |
0.0A~500A |
0.1A |
One Channel |
35mm×40mm |
ETCR8000B |
0.00mA~20A |
0.01mA |
One Channel |
25mm×30mm |
ETCR8300 |
0.0A~500A |
0.1A |
Three-Channel |
35mm×40mm |
ETCR8300B |
0.00mA~20A |
0.01mA |
Three-Channel |
25mm×30mm |
Technical Specifications
Function |
Measuring Three- channel AC leakage current and AC current, on-line monitoring and recording, locating insulation faults and repairing electrical lines. |
Power Supply |
DC6V, AA alkaline battery 1.5V×4 |
Test Method |
Clamp CT, TRMS |
Range |
0.0A-500A |
Resolution |
0.1A |
Accuracy |
±2%±5dgt |

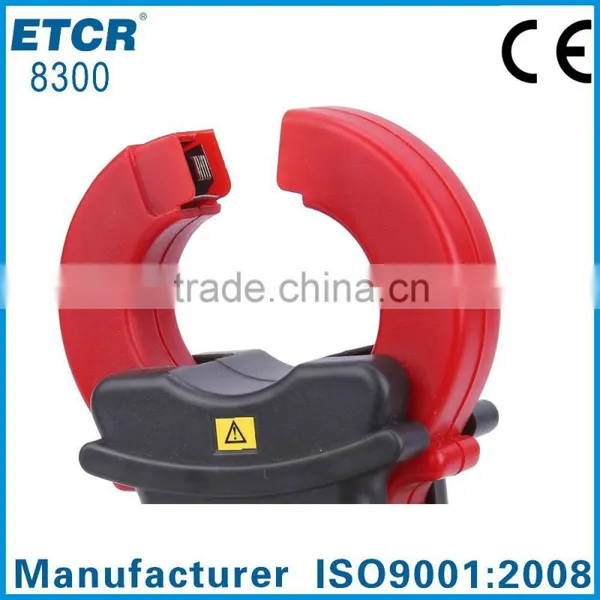

Clamp size |
35mm×40mm |
Dimension of Clamp |
122×70×33(mm) |
Display |
LCD:128dots×64dots;Display:44mm×27mm |
Dimension |
Tester(LWH): 75mm×170mm×30mm |
Mass |
750g(with batteries) |
Shield |
Single layer shielding |
Sample Rate |
2 samples/s |
Data storage |
3900 sets (data loss does not occur after power failure or replacing the battery) |
Time Setting |
Recording internal adjustable from 1 to 99 min, If set to 0 min, the auto-store function is turned off |
Record Time |
Continuously operate for about 10 days at the power-saving mode |
Line Voltage |
Below AC600V |
Overflow |
The “OL” symbol is displayed when a measured value is beyond the measurement range |
Battery Voltage |
A Low-Battery symbol is displayed and the user should replace the battery with a new one when the battery voltage drops to 4.6V to 4.8V. In this case, the measured values are still accurate. |
Rated Power |
About 5mA at the power-saving mode, maximum current consumption: 20mA |
Lead Length |
2m |
Environment |
-20℃~50℃;below 80%rh |
Insulation Resistance |
Higher than 100MΩ, 1000V |
Safety Codes |
IEC1010-1, IEC1010-2-032, Pollution Degree: 2; CAT Ⅲ(600V), IEC61326(EMC standard) |

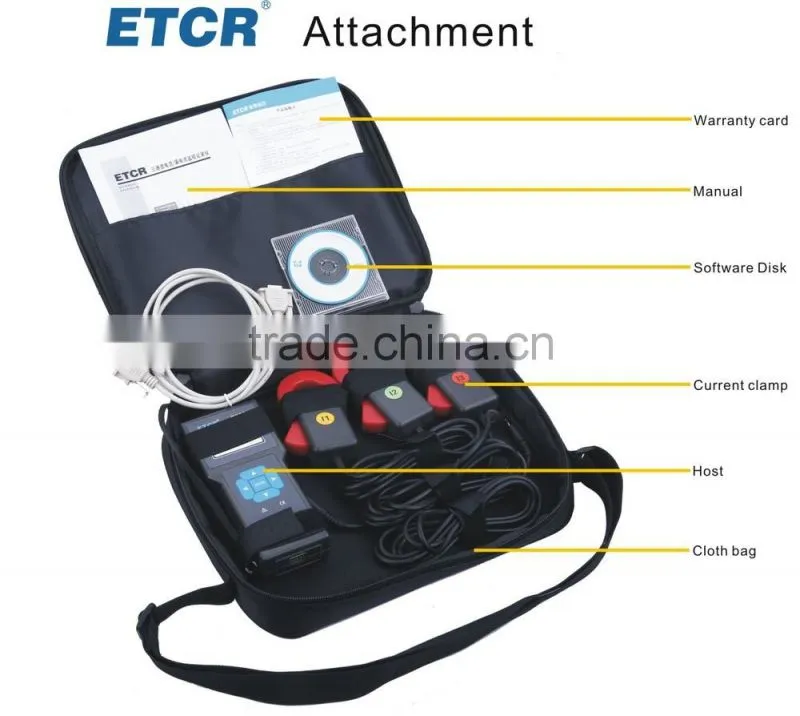

Accessories |
Tester:1pc, Clamp:3pcs, Bag:1pc, RS232 line:1pc; Disk:1pc |
Packing
Packing Case Size(L×W×H):235×210×70(mm)
Weight:1.1Kg
