Place of Origin Guangdong, China
Brand Name ETCR
Model Number ETCR1000C
Display Type Digital Only
Measuring Range --
Accuracy Class --
Supply Voltage 3V
Operating Temperature -10℃~55℃
Dimensions 70*75*30(mm)
Weight 0.18kg, 200g (with batteries)

Best Quality LED Display Non-contact Phase Detectors ETCR1000C

Product information



Best Quality LED Display Non-contact Phase Detectors ETCR1000CBest Quality LED Display Non-contact Phase Detectors ETCR1000C

Product Features

1.Safety Rating CAT III 600V
2.CE EN:61010-1 EN:61010-031
3.Phase Sequence(LED Display)



Technical Specifications

Function

Phase detection (Normal, Reverse, and default), Live wire examination, Simple power inspection, Breakpoints finding and Line maintenance

Power Supply

DC3V AA alkalinebatteries (LR6)×2PCS,continuous use for 70hours

Live Voltage Range

AC70-1000V, 45/65Hz (Sine Wave Continuous Input)

Clamp Wire Size

ø1.6~ø16mm

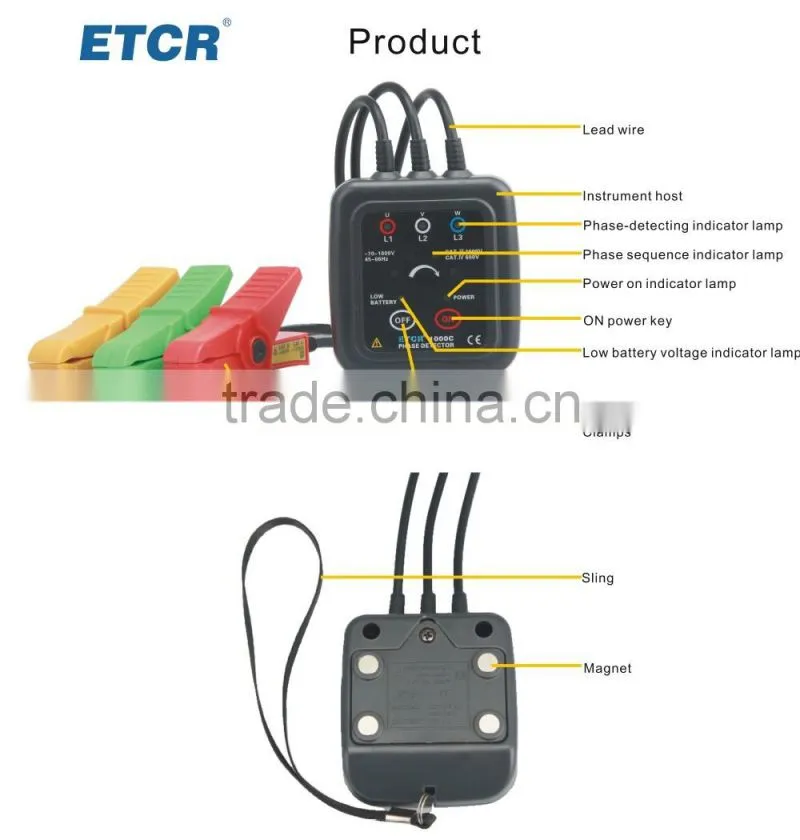

LED display

[positive phase sequence]the four phase-sequence lamps blink in order (clockwise)

[negative phase sequence ]the four phase-sequence lamps blink in order (counterclockwise)

[live-voltage indication]L1,L2,L3 lamps light up

[default phase]L1/L2/L3 lamp light up

[open circuit]L1/L2/L3 lamp is off

Buzzer

[positive phase sequence]the buzzer sounds intermittently

[negative phase sequence]the buzzer sounds continuously

power indication

Power ON lamp: light up(power ON), LOW BATTERY lamp light up

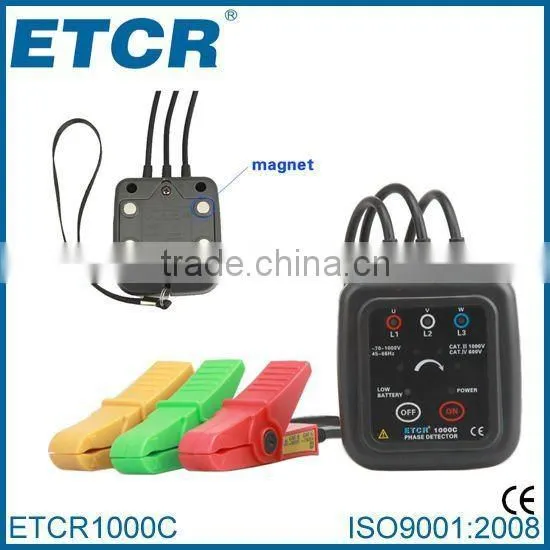

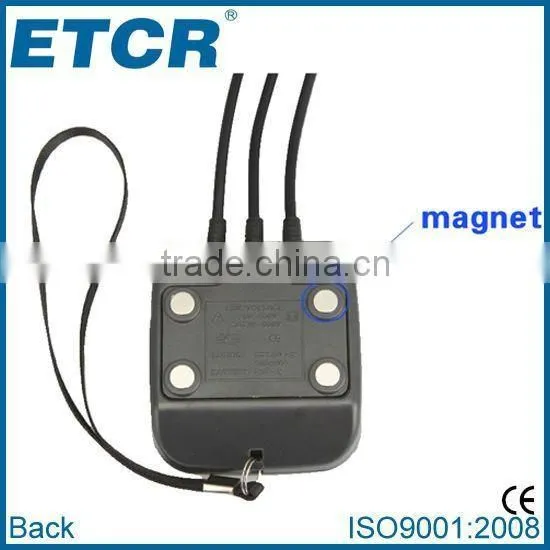

magnetic

Instrument base plate is provided with a magnet, suction hanging in the electrical box, can withstand 800g quality.

Auto Power off

5 minutes after booting up, the meter automatically shutdown.

Dimension

L×W×H: 70mm×75mm×30mm

Clamp Lead Length

0.6m

Weight

200g (with batteries)

Working Temperature

and Humidity

-10℃~55℃;below 80%rh

Temperature

and Humidity for storage

-20℃~60℃;below 90%rh

Maximum Measured

Voltage

AC 1000V

Dielectric Strength

5.4kVrms

Maximum Rated Power

300mVA

Safety rules

EN61010-1:2001,EN61010-031:2002,Pollution degree:2,CAT Ⅲ(600V),transient

over voltage 6000V

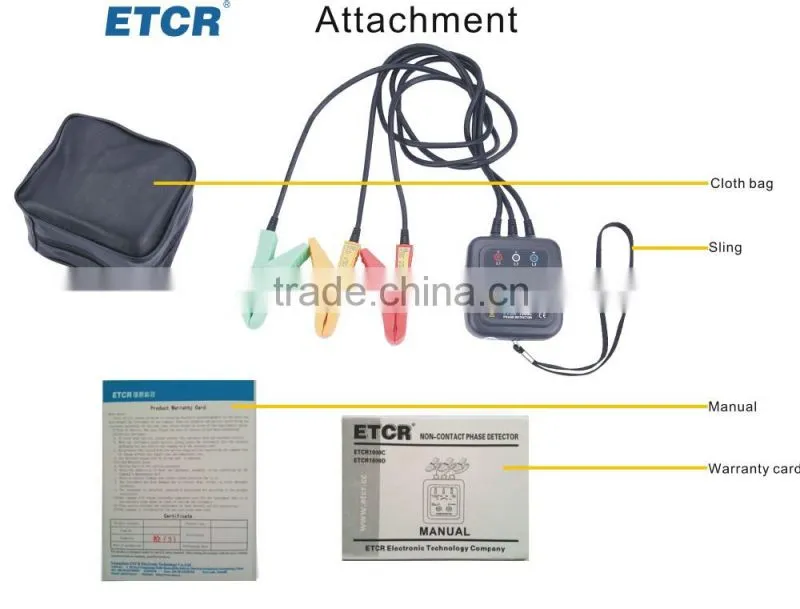

Accessories

Meter:1PC;Cloth bag:1PC
Packing

Packing Size: (L ×W ×H):13 ×7 ×11(cm)

Weight: 0.35Kg
