Laser module, 405nm-980nm dot & line & cross hair industrial laser module for wild explore
instrument, military instrument, surveying instrument, bar code scan instrument, medical instrument, industrial instrument and equipment

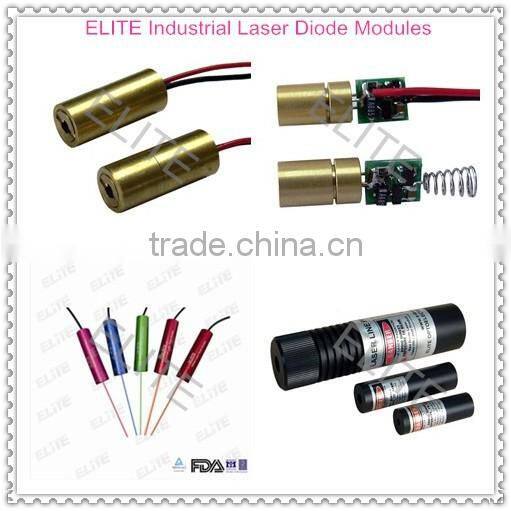

1.Elite Industrial Laser Diode Module Description:
Elite Industrial Laser Diode Modules use high quality laser diode with special designed collimating lens and high stable driven circuit (APC). The characteristics are high reliability, long life span (>10000hrs), and high stability. It’s mainly applied in all kinds of industrial instruments and equipment, field detecting, surveying instruments, military instruments and equipment; gun laser sight, medical apparatus, laser appliance and various of laser apparatus, etc.
2.Elite Industrial Laser Diode Module Features:
a.High quality
b.High brightness
c.High stability and reliability
d.Mini size
e.Low power consumption
f.APC power control
g.Long life operation:>10,000hrs
h.Customized solutions for OEM applications
3.Elite Industrial Laser Diode Module Specifications:
Items |
Specifications |
||||||||
Spectral Range |
Violet |
Blue |
Red |
Infrared |
|||||
Wavelength |
405nm |
450nm |
635nm |
650nm |
780nm |
808nm |
830nm |
850nm |
980nm |
LD power(mW) |
5- 50 |
5-60 |
5~180 |
5~150 |
5~200 |
50~5000 |
5-100 |
5~100 |
20~5000 |
Operating Current |
25~5000mA |
||||||||
Input Voltage |
2.6~5.5VDC |
||||||||
Operating Temp. |
-10°C ~ 50°C |
||||||||
Storage Temp. |
-40°C ~ 80°C |
||||||||
Power Stability |
> 98% (@2.7 ~ 5.5VDC) |
||||||||
> 95% (@-10°C ~ 50°C) | |||||||||
MTTF |
>10000 Hrs. |
||||||||
Circuit Protection |
Static, Surge, and Reverse Polarity Protected |
||||||||
Case Material |
Brass or Aluminum |
||||||||
Beam Pattern |
Dot, Line ,Cross |
||||||||
4.Elite Industrial Laser Module Applications:
a.Laser aiming, positioning and pointing
b.Dimensional scanning
c.Illumination
d.Industrial instrument and equipment
e.Scanning biochemistry
f.Material inspection
g.Medical equipment
h.Scientific equipment
i.Collimation
j.Optics instrument
k.Laser sight
l.Military instrument and equipment
m.Surveying and wild explore instrument
n.Bar code scan
5. Why Choose us?
12 years rich industry experience since 2003
SGS TUV assessed supplier
Have FDA, ISO9001:2008, IEC certificates
Cooperation with Top 500 Global Companies like GE, Corning etc.
6. Packaging & Delivery & Payment Information:
MOQ: 10pcs.
Supply Ability: 100,000pcs per month.
Delivery Time: 10-20 days depending on order quantity.
Shipment Term: FOB Xi’an, China.
Payment Terms: T/T, Western Union, Paypal
Shipping Method: DHL/EMS/TNT Air-Express or sea transportation.
7.Warranty:
We offer 12 months limited warranty for our products. Damage due to misuse, ill treatment and unauthorized modifications and repairs are not covered by our warranty.
8.CAUTION:
The laser light is harmful to human body especially to eye no matter what directly or indirectly. The laser beam shall be observed or adjusted through infrared camera or equivalent.
9.Elite Factory:
10.Elite Production Process:
11.Meet us on Exhibitions:
a.Shot Show Exhibition held in USA in January.
b.Laser World of PHOTONICS held in Germany in June.
c.Laser World of PHOTONICS held in China in March.
