FDA Approved 5mW 635nm Red Line Laser Module Fan Angle 90degree

Elite Optoelectronics Co., Ltd.
5Yrs
FDA Approved 5mW 635nm Red Line Laser Module Fan Angle 90degree thumbnail-1
FDA Approved 5mW 635nm Red Line Laser Module Fan Angle 90degree thumbnail-2
FDA Approved 5mW 635nm Red Line Laser Module Fan Angle 90degree thumbnail-3
FDA Approved 5mW 635nm Red Line Laser Module Fan Angle 90degree thumbnail-4
FDA Approved 5mW 635nm Red Line Laser Module Fan Angle 90degree thumbnail-5
FDA Approved 5mW 635nm Red Line Laser Module Fan Angle 90degree photo-1

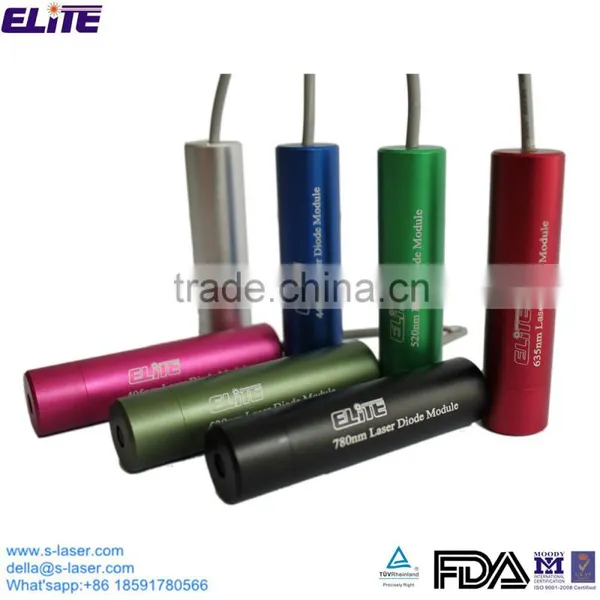

FDA Approved 5mW 635nm Red Line Laser Module Fan Angle 90degree photo-2
FDA Approved 5mW 635nm Red Line Laser Module Fan Angle 90degree photo-3
FDA Approved 5mW 635nm Red Line Laser Module Fan Angle 90degree photo-4

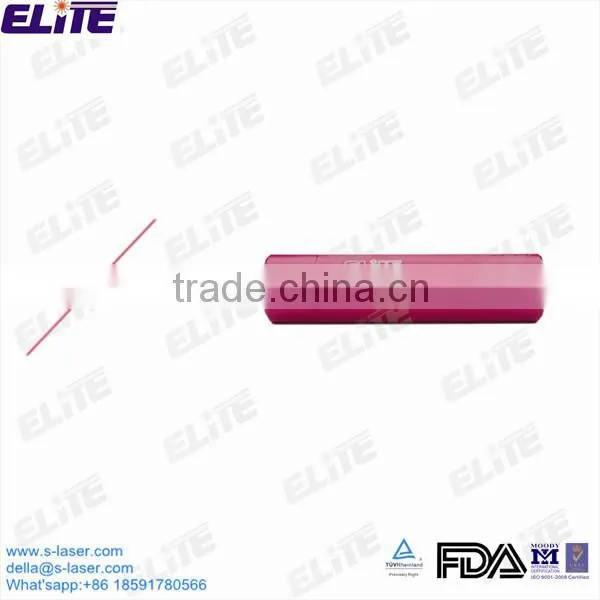

FDA Approved 5mW 635nm Red Line Laser Module Fan Angle 90degree photo-5
US$ 50 - 200 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shaanxi, China
Brand Name:
ELITE
Model Number:
635nm Line Laser Module
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Xi'an Shaanxi China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shaanxi, China
Brand Name ELITE
Model Number 635nm Line Laser Module

Laser Module, 635nm Laser Module, 3mW-90mW 635nm Laser Diode Module Line Beam with Built-in PD and Fan Angle 5°-130°

1.Elite 635nm Laser Diode Module Description:

635nm laser diode modules with built-in PD greatly improved its reliability and stability, which is helpful to the miniaturized of products.



It can be widely used into industrial instruments and equipments, outdoor testing instruments and equipment etc.



2.Elite 635nm Laser Diode ModuleFeatures:
a. High stability and high reliability

b. Compact size

c. Low power consumption

d. Customized solutions for OEM applications



3.Elite 635nm Laser Diode Module (Line Beam)Specifications:

Model

Wave

Length

Output Power

Driver

Fan Angle

Line Thickness

Dimensions

EL63L05IP1

635nm

<3.0mw

APC

120°

<1mm(@1m)

Dia.8x25mm

EL63L05IG2

635nm

<3.0mw

APC

5°- 130°

<3mm(@5m)

Dia.10x35mm

EL63L05IG3

635nm

<2.8mw

APC

5°- 130°

<3mm(@10m)

Dia.10x35mm

EL63L05IG9

635nm

<3.0mw

APC

5°- 130°

<1mm@1m)

Dia.8x25mm

EL63L10IG2

635nm

<6.0mw

APC

5°- 130°

<3mm(@5m)

Dia.8x25mm

EL63L10IG3

635nm

<5.6mw

APC

5°- 130°

<3mm(@10m)

Dia.10x35mm

EL63L10IG9

635nm

<6.0mw

APC

5°- 130°

<1mm(@1m)

Dia.12x40mm

EL63L20IG2

637nm

<12.0mw

APC

5°- 120°

<3mm(@5m)

Dia.10x35mm

EL63L20IG3

637nm

<11.0mw

APC

5°- 130°

<3mm(@10m)

Dia.12x40mm

EL63L20IG9

637nm

<12.0mw

APC

5°- 130°

<1mm(@1m)

Dia.14x50mm

EL63L30IG2

637nm

<18.0mw

APC

5°- 130°

<4mm(@10m)

Dia.12x40mm

EL63L30IG3

637nm

<16.0mw

APC

5°- 130°

<3mm(@10m)

Dia.14x50mm

EL63L30IG9

637nm

<18.0mw

APC

5°- 130°

<1mm(@10m)

Dia.16x70mm

EL63L40IG2

640nm

<24.0mw

APC

5°- 130°

<4mm(@10m)

Dia.12x40mm

EL63L40IG3

640nm

<22.0mw

APC

5°- 130°

<3mm(@10m)

Dia.14x50mm

EL63L40IG9

640nm

<24.0mw

APC

5°- 130°

<1mm(@1m)

Dia.16x70mm

EL63L60IG2

640nm

<35.0mw

APC

5°- 130°

<6mm(@20m)

Dia.14x50mm

EL63L60IG3

640nm

<33.0mw

APC

5°- 130°

<5mm(@20m)

Dia.16x70mm

EL63L60IG9

640nm

<35.0mw

APC

5°- 130°

<1mm(@1m)

Dia.20x70mm

EL63L90IG2

640nm

<55.0mw

ACC

5°- 130°

<8mm(@30m)

Dia.14x50mm

EL63L90IG3

640nm

<50.0mw

ACC

5°- 130°

<6mm(@30m)

Dia.16x70mm

EL63L90IG9

640nm

<55.0mw

ACC

5°- 130°

<1mm(@1m)

Dia.20x70mm

EL63L150IG2

640nm

<90.0mw

ACC

5°- 130°

<8mm(@30m)

Dia.16x60mm

EL63L150IG3

640nm

<85.0mw

ACC

5°- 130°

<6mm(@30m)

Dia.20x70mm

EL63L150IG9

640nm

<90.0mw

ACC

5°- 130°

<1mm(@1m)

Dia.22x70mm



4. Elite 635nm Laser Diode ModuleApplications:

a. Laser alignment and positioning

b. Industrial instruments and equipments

c. Outdoor testing Instruments

d. Other OEM applications……



5. Why Choose us?

12 years rich industry experience since 2003

SGS TUV assessed supplier

Have FDA, ISO9001:2008, IEC certificates

Cooperation with Top 500 Global Companies like GE, Corning etc.



6. Packaging & Delivery & Payment Information:

MOQ: 10pcs.

Supply Ability: 100,000pcs per month.

Delivery Time: 10-20 days depending on order quantity.

Shipment Term: FOB Xi’an, China.

Payment Terms: T/T, Western Union, Paypal

Shipping Method: DHL/EMS/TNT Air-Express or sea transportation.



7.Warranty:

We offer 12 months limited warranty for our products. Damage due to misuse, ill treatment and unauthorized modifications and repairs are not covered by our warranty.



8.CAUTION:

The laser light is harmful to human body especially to eye no matter what directly or indirectly. The laser beam shall be observed or adjusted through infrared camera or equivalent.



9.Elite Factory:

FDA Approved 5mW 635nm Red Line Laser Module Fan Angle 90degree



10.Elite Production Process:

FDA Approved 5mW 635nm Red Line Laser Module Fan Angle 90degree



11.Meet us on Exhibitions:

a.Shot Show Exhibition held in USA in January.

b.Laser World of PHOTONICS held in Germany in June.

c.Laser World of PHOTONICS held in China in March.

FDA Approved 5mW 635nm Red Line Laser Module Fan Angle 90degree





Contact Info.:



Mrs. Della Wang

Elite Optoelectronics Co., Ltd.

Tel:+86-29-68590602 Ext.811

Fax:+86-29-65890728

Whatsapp:+86-18591780566

Mail:della(at)s-laser(dot)com

Skype:Cinderella19831129
