Air Cooled Condenser for Cold, Freezer and Deep-freezing Storage for Fruit, Meat and Vegetable, Etc Storage

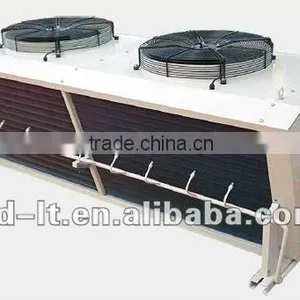

Air Cooled Condenser for Cold, Freezer and Deep-freezing Storage for Fruit, Meat and Vegetable, Etc Storage thumbnail-1

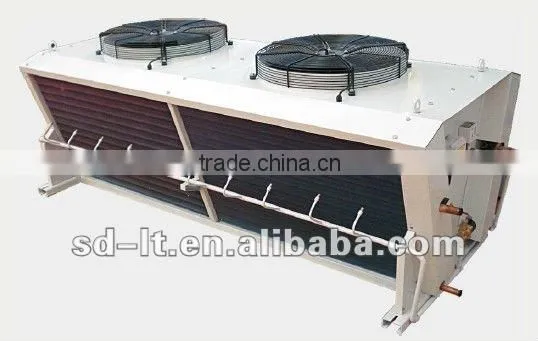

Air Cooled Condenser for Cold, Freezer and Deep-freezing Storage for Fruit, Meat and Vegetable, Etc Storage photo-1
Negotiable MOQ: 5 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Other, Condenser, FN FNV FNS FNP types
Place of Origin:
Shandong, China
Brand Name:
LYTTE or LUTE
Contact Supplier Request Quote Chat Now
Shandong Lvte Air Conditioning System Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Condenser, FN FNV FNS FNP types
Place of Origin Shandong, China
Brand Name LYTTE or LUTE
Model Number FN FNS FNP FNV
Certification CE

Specifications

air cooled condenser
-High-quality steel plate with sprayed surface;
-Beautiful appearance;
-High quality heat exchange;



Product Description



Air Cooled Condenser for Cold, Freezer and Deep-freezing Storage for Fruit, Meat and Vegetable, etc Storage

Air Cooled Condenser for Cold, Freezer and Deep-freezing Storage for Fruit, Meat and Vegetable, etc Storage

Introduction
Air cooled condenser is a kind of cooling devices by utilizing air which connected with Freon refrigeration equipments.
Now we produce FN, FNS type and FNV type air cooled condenser, Air side outlet for FN&FNS type and Air top outlet for FNV type.
Features
1. The outcovering is made of high-quality steel plate with sprayed surface to ensure corrosion resistance, beautiful appearance;
2. Coil adopted staggered permutation,and tighted to fit with Aluminum sheet to ensure high efficiency heat exchange;
3. Application for R22,R134a,R404a,R407C etc. refrigerant;

4. Units adopted 2.8MPa air tightness test and system sewage discharge treatment;
5. FNS condenser utilized large air volume and low speed internal motors with low noise,beautiful appearance; Application for refrigerant equipments which demand high requirements of noise;
6. FNV condenser have the features of large windward side, high quality heat exchange; external rotor motors used.
Models Specifications
FN S ----- 80 A
FN---Condenser Products Code
S---Type: S(Low Noise Type); V(Air Top Outlet Type); P(Water Spray Type); None(Standard Type)
80---Heat Exchange Area

A---Version Code
FN Type: Standard Models: FN-2 to FN-180
Overall Size:



Air Cooled Condenser for Cold, Freezer and Deep-freezing Storage for Fruit, Meat and Vegetable, etc Storage

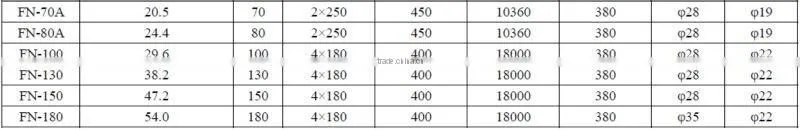

FN Type Models Technical Data Sheet: Air Cooled Condenser for Cold, Freezer and Deep-freezing Storage for Fruit, Meat and Vegetable, etc StorageAir Cooled Condenser for Cold, Freezer and Deep-freezing Storage for Fruit, Meat and Vegetable, etc Storage

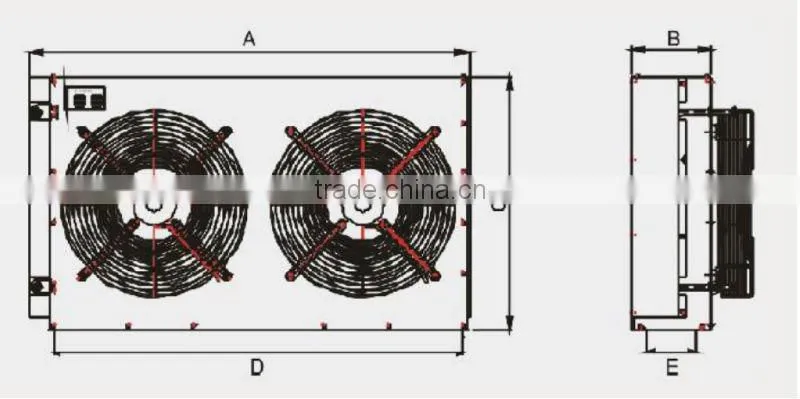

FN Type Models Overall Size and Installation Size:

Air Cooled Condenser for Cold, Freezer and Deep-freezing Storage for Fruit, Meat and Vegetable, etc StorageAir Cooled Condenser for Cold, Freezer and Deep-freezing Storage for Fruit, Meat and Vegetable, etc Storage

Overall Size

Air Cooled Condenser for Cold, Freezer and Deep-freezing Storage for Fruit, Meat and Vegetable, etc Storage

FNS Type Models Technical Data Sheet:

Air Cooled Condenser for Cold, Freezer and Deep-freezing Storage for Fruit, Meat and Vegetable, etc Storage

FNS Type Models Overall Size and Installation Size:

Air Cooled Condenser for Cold, Freezer and Deep-freezing Storage for Fruit, Meat and Vegetable, etc Storage

Overall Size

Air Cooled Condenser for Cold, Freezer and Deep-freezing Storage for Fruit, Meat and Vegetable, etc Storage

FNV Type Models Technical Data Sheet:

Air Cooled Condenser for Cold, Freezer and Deep-freezing Storage for Fruit, Meat and Vegetable, etc Storage

FNV Type Models Overall Size and Installation Size:

Air Cooled Condenser for Cold, Freezer and Deep-freezing Storage for Fruit, Meat and Vegetable, etc Storage

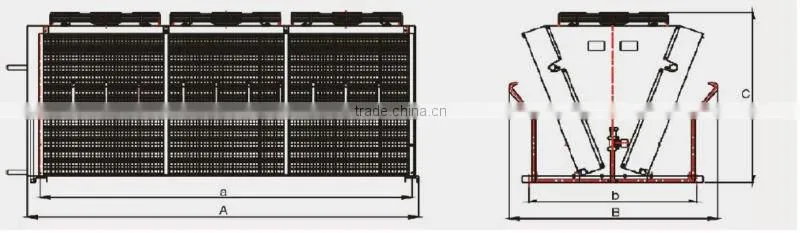

Overall Size

Air Cooled Condenser for Cold, Freezer and Deep-freezing Storage for Fruit, Meat and Vegetable, etc Storage

FNP Typ e Mo dels Technical Dat a Sheet:

Air Cooled Condenser for Cold, Freezer and Deep-freezing Storage for Fruit, Meat and Vegetable, etc Storage

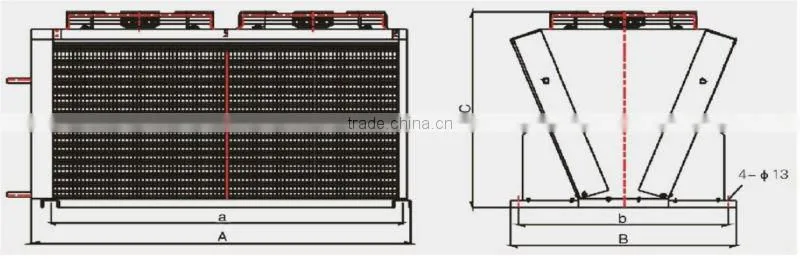

FNP Type Models Overall Size and Installation Size:

Air Cooled Condenser for Cold, Freezer and Deep-freezing Storage for Fruit, Meat and Vegetable, etc Storage
