Specifications
-High efficient outer grooved copper tube;-Compact structure,high heat transfer efficiency;
-Good quality welding;
Air Conditioner Parts, Condenser Shell Tube, Shell&Tube Type Water-cooled Condenser
Introduction:
1. The products are made in strict accordance with the National Standard and supervised under the National authority so the quality of the products can be ensured;We have specially manufacturing license for it.
2. The inner copper tube is high efficient outer grooved copper tube which is produced by the professional manufacturer. Large heat exchange area and hidh efficiency;
3. Products undergo strict pneumatic and hydraulic presure test,with 2.8Mpa for sheels and 1.0Mpa for Pipes;
4. The LTWS seris condenser is designed in a compact structure,high heat transfer efficiency and utilized for air-conditioning equipment;
5. The LTFWS seris condenser is designed in a bigger vessel with a liquid receiver;
6. The products has air evacuating devices,is convenient to evacuate unsolvable gas to improve the safety an efficiency of the products;
7. Supper Cooling pipes are employed to improve the efficiency;
8. Good quality welding makes it no debris and impurities left.
Condenser Design Condition:
Temperature of Cooling Watter In;T1=30°C
Temperature of Cooling Watter Out;T2=35°C
Condensing Temperature;Tc=40°C
Cooling Water Velocity:V=1.5-2m/s
Model Code
(F)WS---03
(F)WS-Products Series Name; F-With Liquid Reciver
03-Capacity Code(USRT)
LTFWS Models

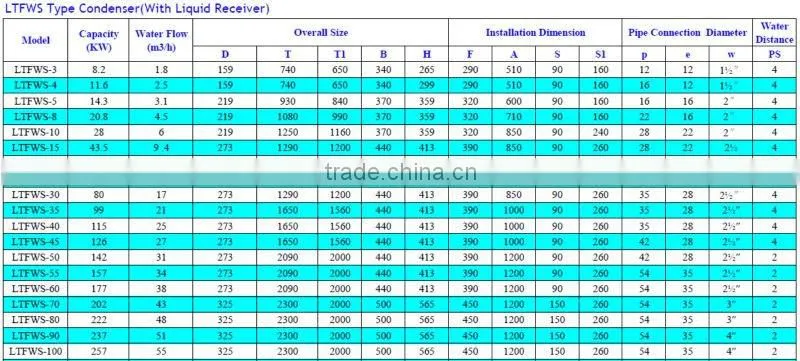

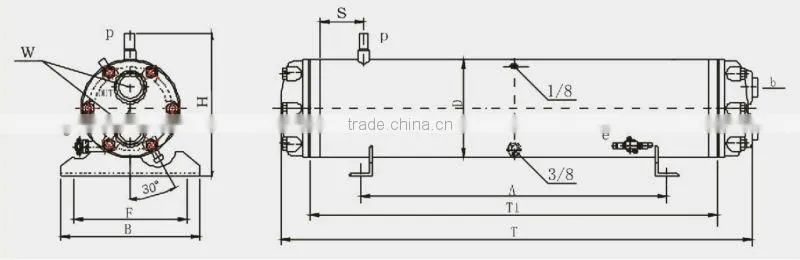

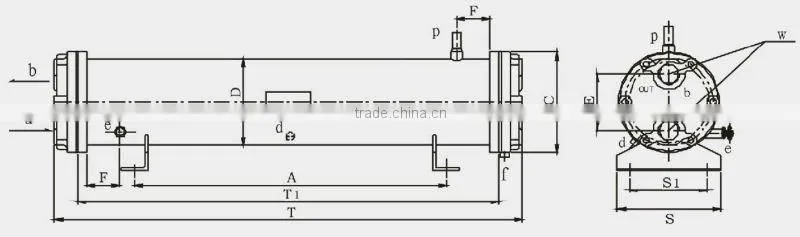

LTFWS-3 to LTFWS-60 Overall Size

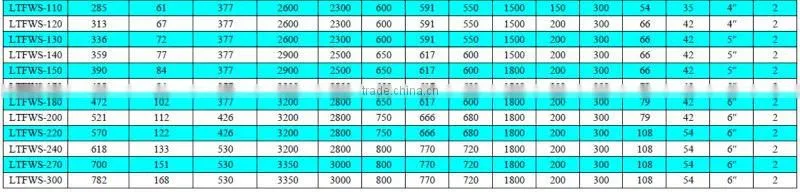

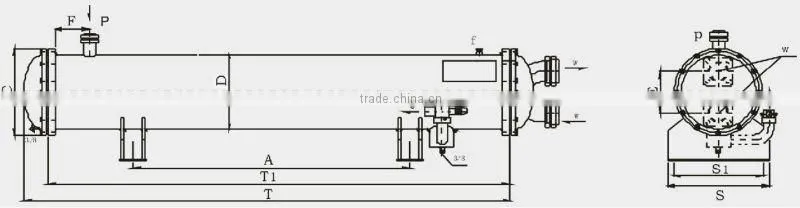

LTFWS-70 to LTFWS-150 Overall Size

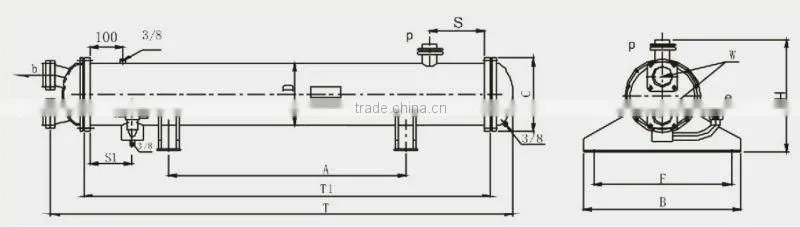

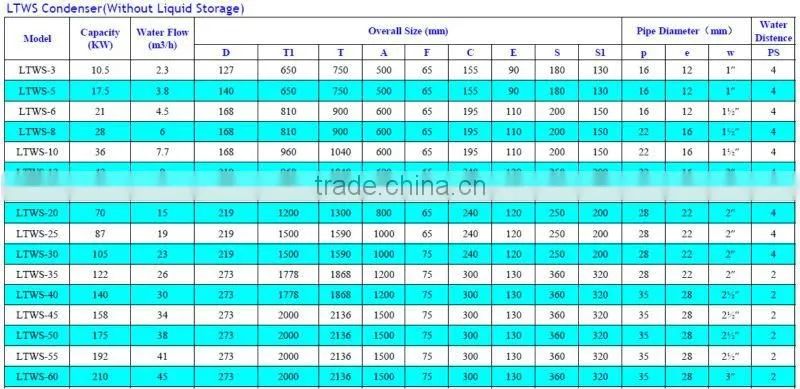

LTWS Models
LTWS Models

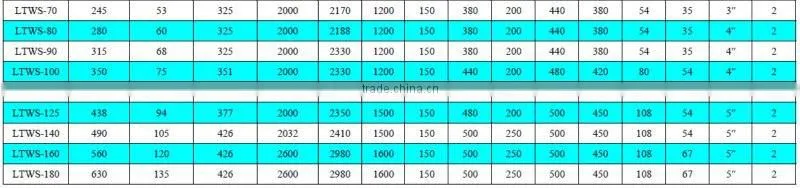

LTWS-70 to LTWS-180 Overall Size
Technical Data Sheet for Water Cooled Condenser
