Evaporative Air Cooler
Negotiable
MOQ: 10 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
LYTTE or OEM Service-Air Cooler
Model Number:
LTEV-Air Cooler
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DL Series Air Cooler/Evaporator for Refrigeration Cold RoomUS$ 59 - 3,999MOQ: 10 Sets -
D Series Air Cooler/EvaporatorUS$ 50 - 4,998MOQ: 10 Sets
-
LTEV Series Air Cooler/Evaporator for FreezerUS$ 59 - 1,999MOQ: 10 Units
-
DD Series Air Cooled Evaporator For Refrigerant Cold RoomUS$ 60 - 5,999MOQ: 1 Set
-
Air Cooler/Evaporator High Efficiency Good Quality Evaporator/Heat Exchanger for Food Fresh,cold Room and QuickUS$ 199 - 899MOQ: 10 Units
Place of Origin
Shandong, China
Brand Name
LYTTE or OEM Service-Air Cooler
Model Number
LTEV-Air Cooler
Type
Other, Evaporator, Refrigerant Parts for Cold Room
Application
Refrigeration Parts
Certification
CE
Specifications
Air Cooler for Freezer-Air Cooled Cooler
-For Freezer or Coled Room
-Room Temperature: 0~8
-Large production output

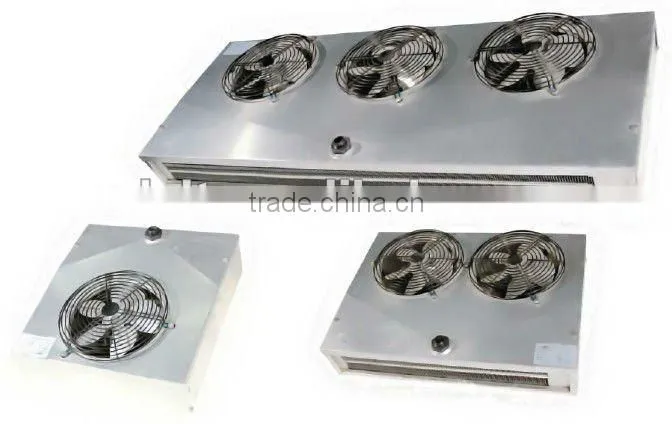

Evaporative Air Cooler
Introduction
LTEV Series Air Cooler/Evaporator is a kind of cooling equipments which is put in freezer and used with Freon refrigeration equipment; suitable for 0°C~8°C freezer.
Features:
1)Material of outer covering:Aluminum-magnesium alloy; Corrosion
resistance&Nice appearance;
2)Coil adopted staggered permutation,and tighted to fit with Aluminum
sheet to ensure high efficiency heat exchange;
3)Double Fin Distance(4.5/9.0) Structure;
4)Ceiling type installation;Convenient disassembly and clean.
Models:
| Model | Nominal heat exchange KW |
Area Sq.m |
Tube volume dm³ |
Fan | |||
| Air Flow(m³/h) | Diameter(mm) | Power(W) | Voltage(V) | ||||
| LTEV-40 | 0.3 | 1.4 | 0.33 | 220 | 200 | 1X40 | 410 |
| LTEV-60 | 0.4 | 2.3 | 0.48 | 220 | 200 | 1X40 | 410 |
| LTEV-100 | 0.63 | 2.4 | 0.54 | 220 | 200 | 2X40 | 820 |
| LTEV-130 | 0.85 | 3.8 | 0.8 | 220 | 200 | 2X40 | 820 |
| LTEV-180 | 1.28 | 4.8 | 1.07 | 220 | 200 | 3X40 | 1230 |
| LTEV-290 | 1.76 | 7.7 | 1.61 | 220 | 200 | 3X40 | 1230 |
| Notes:Normal Cooling-Freezer Temperature 0°C; Heat Transfer Temperature Difference 8°C. | |||||||

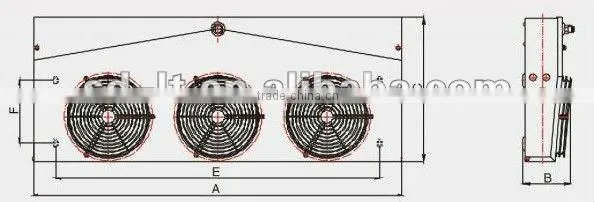

Overall Size and Installation Size
| Model | Interface pipe diameter(mm) | Discharge Pipe |
Installation Size(mm) | ||||
| Inlet outlet | A | B | C | E | F | ||
| LTEV-40 | Φ9.52 Φ9.52 | 1″ | 410 | 152 | 435 | 280 | 190 |
| LTEV-60 | |||||||
| LTEV-100 | Φ9.52 Φ9.52 | 610 | 152 | 435 | 480 | 190 | |
| LTEV-130 | |||||||
| LTEV-180 | Φ12 Φ16 | 1110 | 152 | 435 | 980 | 190 | |
| LTEV-290 | |||||||
