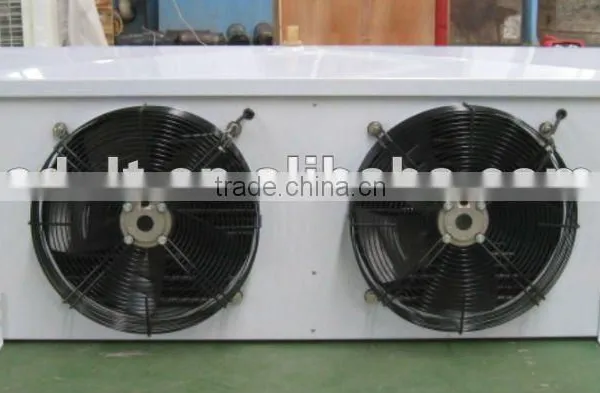

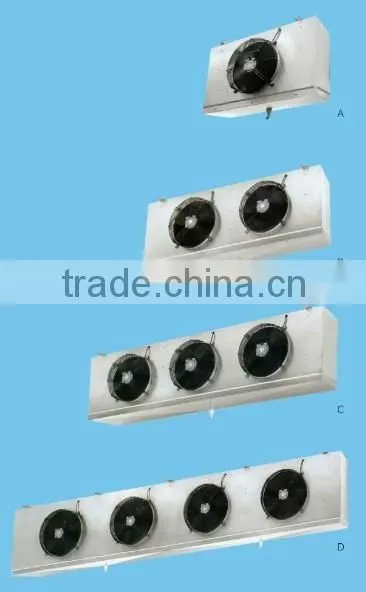

DL Series Air Cooler/Evaporator for Refrigeration Cold Room

DL Series Air Cooler/Evaporator for Refrigeration Cold Room thumbnail-1
DL Series Air Cooler/Evaporator for Refrigeration Cold Room photo-1
US$ 59 - 3,999 MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
LYTTE or OEM Service-Air Cooler
Model Number:
DL-Air Cooler(-5℃~5℃)
Contact Supplier Request Quote Chat Now
Shandong Lvte Air Conditioning System Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name LYTTE or OEM Service-Air Cooler
Model Number DL-Air Cooler(-5℃~5℃)
Type Other, Evaporator, Heat Exchange Air Cooler
Application Refrigeration Parts
Certification CE

Specifications

Refrigeration Air Cooler
-Evaporative Air Cooler
-Air Cooler for Cold Room
-High Efficiency
-Advantage Refrigeration Parts

DL Series Air Cooler/Evaporator for Refrigeration Cold Room

Introduction:

D series Air Cooler/Evaporator is a kind of cooling equipments which used with refrigerant units application for different cold rooms. It is clasified three category including DL, DD, DJ by different cold room temperature. DL series applied for 0°Cpreservation cold room; DD series applied for about -18°C cold storage; DJ series applied for -25°C frozen storage.

Features

1.Unit Outcovering adopts high-quality steel, spraied the surface and corrosion resistance;Good appearance;

2.Coil adopted staggered permutation,and tighted to fit with Aluminum sheet to ensure high efficiency heat exchange;

3.Stainless steel electric heating tubes are uniformly distributed in the coil pipes, good defrosting effeciency;

4.Double water disk structure, which can effectively prevent the water tray freeze;

DL Series: Application for  -5°C~5°C

Model Specifications:

D    L   19/45   3    A

D: Products Series Code

L:Temperature(L:-5°C~5°C)

19:Nominal heat exchange

45:Fan Diameter

3: Fan Quantity

A:380V/3P/50HZ;B:220V/1P/50HZ;C:220V/3P/60HZ;D:220V/1P/60HZ;E:110V/1P/60HZ(D,E Fan Diameter≤500mm)

Kinds of Models as Following:

DL Series(Distance:4.5mm)

Model Cooling Capacity KW
DT=7K  T0=-7°C		 Area    Tube volume Air Flow Range Fan
Power		 Defrosting Power(KW)
R22 R404A Sq.m dm³ m³/h m W Coil Water wheel
DL2.2/311A 2.2 2.3 7 1.4 1500 9 90 1 0.5
DL3.5/311A 3.5 3.7 11 2.4 1500 9 90 1.5 0.5
DL4.7/312A 4.7 4.9 14 3.1 3000 9 180 1.8 0.9
DL6/312A 6 6.3 26 4.4 3000 9 180 2.7 0.9
DL9/352A 9 9.5 35 6.1 4500 10 280 2.7 0.9
DL12.5/402A 12.5 13.1 43 7.9 7000 13 360 3.6 1.2
DL14.5/402A 14.5 15.2 52 9.4 7000 13 360 4.8 1.2
DL17/402A 17 17.9 61 11 7000 13 360 6 1.2
DL25/502A 25 26.3 87 15.6 12000 17 900 7.5 1.5
DL29/453A 29 30.5 104 19.1 13500 17 750 8 2
DL36.5/503A 36.5 38.3 122 22.4 18000 19 1350 8 2
DL42/503A 42 44.1 156 25.6 18000 19 1350 10 2
DL49/503A 49 51.5 182 32 18000 19 1350 12 2
DL59/504A 59 62 208 38.7 24000 19 1800 13 2.6
DL70/554A 70 73.5 260 45.1 30000 25 2400 15.6 2.6
DL84/554A 84 88.2 306 58 30000 25 2400 18.6 2.6
DL103/604A 103 108.2 371 70.9 42000 25 3120 20.8 2.6
DL112/634A 112 117.6 390 77.3 46000 25 3200 23.4 5.2
DL122/634A 122 128.1 463 83.7 46000 28 3200 26 5.2

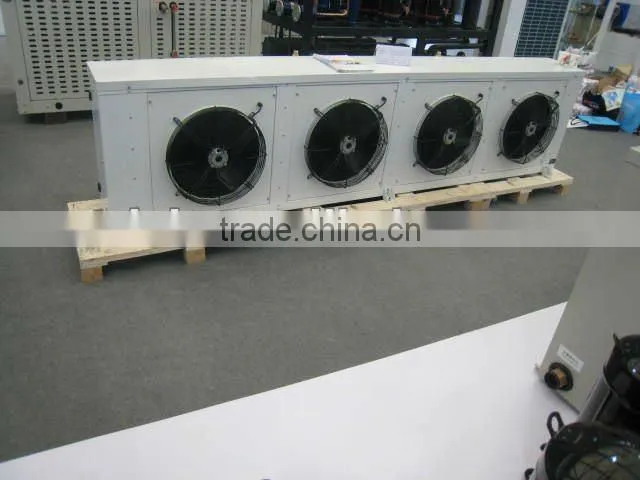

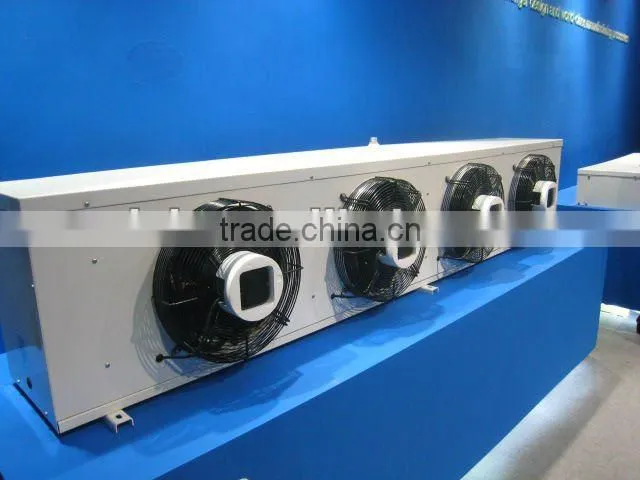

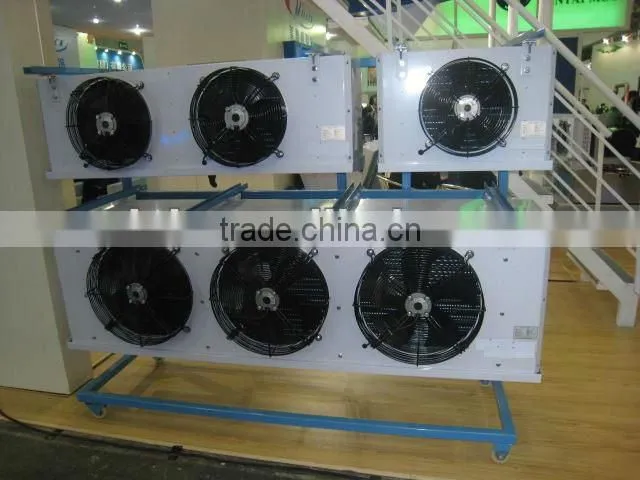

Products in Factory:

DL Series Air Cooler/Evaporator for Refrigeration Cold RoomDL Series Air Cooler/Evaporator for Refrigeration Cold RoomDL Series Air Cooler/Evaporator for Refrigeration Cold RoomDL Series Air Cooler/Evaporator for Refrigeration Cold Room
