Specifications
Detailed Product DescriptionAir Evaporator
-For -15~-20C cold room
-Air Cooler,CE Certificate
-Fin space:6mm;

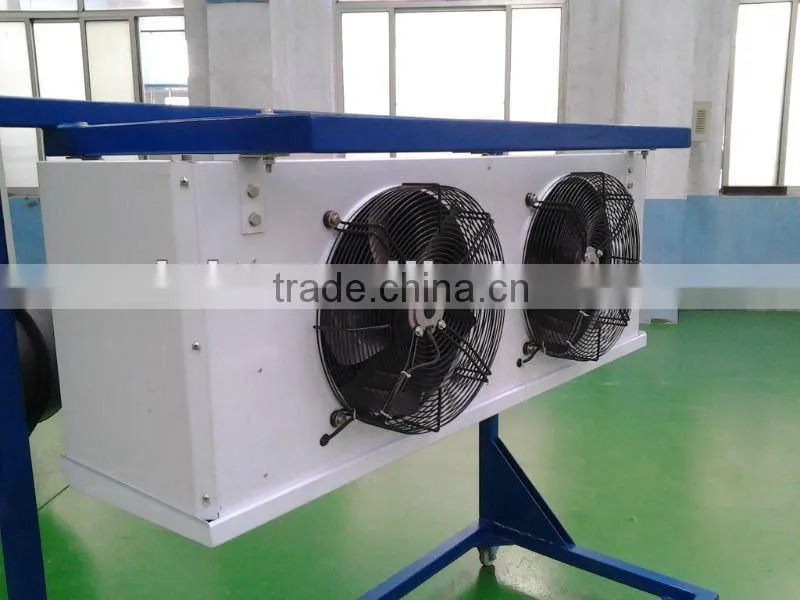

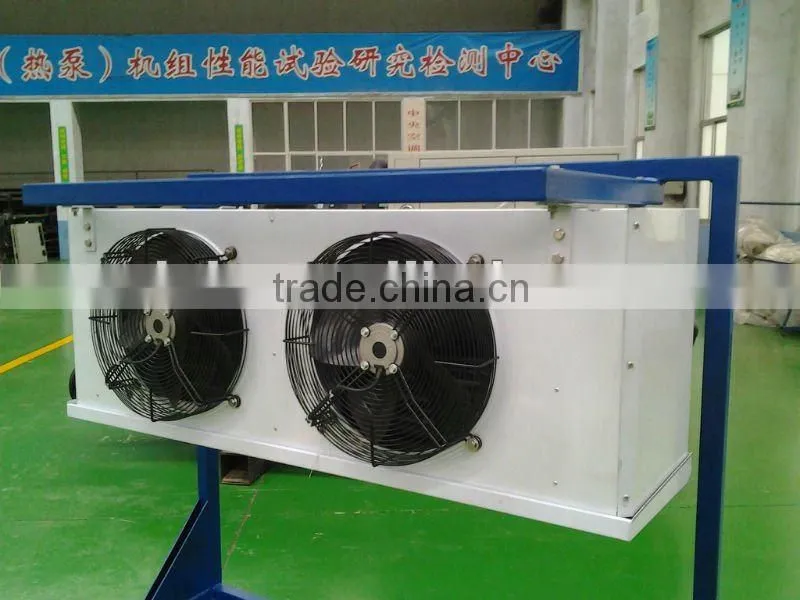

DD Series Air Cooled Evaporator for Refrigerant Cold Room
Introduction
D series Air Cooler/Evaporator is a kind of cooling equipments which used with refrigerant units application for different cold rooms. It is clasified three category including DL, DD, DJ by different cold room temperature. DL series applied for 0°Cpreservation cold room; DD series applied for about -18°C cold storage; DJ series applied for -25°C frozen storage.
Features
Unit Outcovering adopts high-quality steel, spraied the surface and corrosion resistance;Good appearance;
Coil adopted staggered permutation,and tighted to fit with Aluminum sheet to ensure high efficiency heat exchange;
Stainless steel electric heating tubes are uniformly distributed in the coil pipes, good defrosting effeciency;
Double water disk structure, which can effectively prevent the water tray freeze;
D D 19/45 3 A
D: Products Series Code D:Temperature(L:-5°C~5°C;D:-15°C~-20°C;J:Below -25°C) 19:Nominal heat exchange 45:Fan Diameter 3:Fan Quantity
A:380V/3P/50HZ;B:220V/1P/50HZ;C:220V/3P/60HZ;D:220V/1P/60HZ;E:110V/1P/60HZ(D,E Fan Diameter≤500mm)
| DD Series(Fin Distance:6.0mm) | DD Series(Distance:6.0mm) | ||||||||
| Model | Cooling Capacity KW DT=7K T0=-25°C |
Area | Tube volume | Air Flow | Range | Fan Power |
Defrosting Power(KW) | ||
| R22 | R404A | m2 | dm3 | m³/h | m | W | Coil | Water wheel | |
| DD1.4/311A | 1.4 | 1.5 | 5.5 | 1.4 | 1500 | 9 | 90 | 1 | 0.5 |
| DD2.3/311A | 2.3 | 2.4 | 8.5 | 2.4 | 1500 | 9 | 90 | 1.5 | 0.5 |
| DD3/312A | 3 | 3.2 | 11 | 3.1 | 3000 | 9 | 180 | 1.8 | 0.9 |
| DD4.5/312A | 4.5 | 4.7 | 20 | 4.4 | 3000 | 9 | 180 | 2.7 | 0.9 |
| DD6/352A | 6 | 6.3 | 27 | 6.1 | 4500 | 10 | 280 | 2.7 | 0.9 |
| DD7.5/402A | 7.5 | 7.9 | 33 | 7.9 | 7000 | 13 | 360 | 4.8 | 1.2 |
| DD9/402A | 9 | 9.5 | 40 | 9.4 | 7000 | 13 | 360 | 6 | 1.2 |
| DD11/402A | 11 | 11.6 | 47 | 11 | 7000 | 13 | 360 | 7.2 | 1.2 |
| DD15.5/502A | 15.5 | 16.3 | 67 | 15.6 | 12000 | 17 | 900 | 7.5 | 3 |
| DD19/453A | 19 | 20 | 80 | 19.1 | 13500 | 17 | 750 | 8 | 4 |
| DD24/503A | 24 | 25.2 | 94 | 22.4 | 18000 | 19 | 1350 | 10 | 4 |
| DD29/503A | 29 | 30.5 | 120 | 25.6 | 18000 | 19 | 1350 | 12 | 4 |
| DD32/503A | 32 | 33.6 | 140 | 32 | 18000 | 19 | 1350 | 14 | 4 |
| DD38/504A | 38 | 39.9 | 160 | 38.7 | 24000 | 19 | 1800 | 14 | 5.2 |
| DD47/554A | 47 | 49.4 | 200 | 45.1 | 30000 | 25 | 2400 | 15.6 | 5.2 |
| DD58/554A | 58 | 60.9 | 235 | 58 | 30000 | 25 | 2400 | 20.8 | 5.2 |
| DD72/604A | 72 | 75.6 | 285 | 70.9 | 42000 | 25 | 3120 | 26 | 5.2 |
| DD79/634A | 79 | 83 | 300 | 77.3 | 46000 | 25 | 3200 | 28.6 | 5.2 |
| DD88/634A | 88 | 92.4 | 356 | 83.7 | 46000 | 28 | 3200 | 33.8 | 5.2 |
