Semi-Hermetic Screw Compressor Middle Temperature aCompressor Racks for ice making,chillered water making.etc



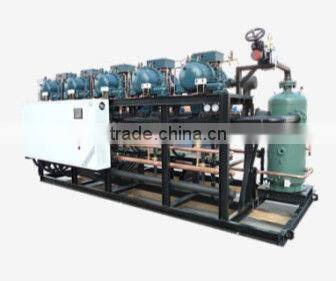

JZHLG Series Semi-Hermetic Screw Compressor Middle
Temperature Compressor Racks(With Hanbell Screw Compressor)

Products Description

    With the rapid development of the refrigeration equipment market, large preservation storages, low-temperature freezing storage, ice making equipment are more and more used. JZHLG series products feature by their structures of multi-Hanbell compressors paralleled together to form one intergrated systems. This products are applicable to large size and rooms, ice making, chilled water making etc with temperature requirement ranging 5°C~5°C and -20°C~-15°C. The products are equipped with muti protection devices for wrong direction, overheating,overloading, overhigh discharging temperature, overlower oil level, oil flow, and high and low pressure etc. The refrigeration system has multi-phase cap regulation system to save energy significantly.

Features

-Used new type 5:6 asymmetric rotor semi-closed screw compressors, high efficiency, long life, low noise, etc.
-Adopted the change of cooling load to multi-lever energy regulation, effectively reduce energy consumption.
-Compressor coil temperature protection; exhaust temperature protection; low oil levels; Hydraulic differential protection; High&Low Pressure Portection

 Model Details:
--Water Cooled Single Compressor Series R22 Units
1.Temperature:-5°C~5°C                    Models: JZHLGS-30M---JZHLGS-150M(30HP-150HP)
2 Temperature: -20°C~-15°C             Models: JZHLGS-30L---JZHLGS-150L(30HP-150HP)
--Water Cooled 2 Compressors Series R22 Units
3.Temperature:-5°C~5°C                    Models: JZHLGS2-60M---JZHLGS3-220M(60HP-220HP)
4.Temperature:-20°C~-15°C              Models: JZHLGS2-60L---JZHLGS3-250L(60HP-250HP)
--Water Cooled 3 Compressors Series R22 Units
5.Temperature:-5°C~5°C                    Models: JZHLGS3-90M---JZHLGS3-210M(90HP-210HP)
6.Temperature:-20°C~-15°C              Models: JZHLGS3-90L---JZHLGS3-300L(90HP-300HP)
--Air Cooled Single Compressor Series R22 Units
1.Temperature:-5°C~5°C                    Models: JZHLGF-30M---JZHLGF-150M(30HP-150HP)
2.Temperature: -20°C~-15°C             Models: JZHLGF-30L---JZHLGF-150L(30HP-150HP)
--Air Cooled 2 Compressors Series R22 Units
1.Temperature:-5°C~5°C                    Models: JZHLGF2-60M---JZHLGF2-250M(60HP-250HP)
2.Temperature: -20°C~-15°C             Models: JZHLGF2-60L---JZHLGF2-250L(60HP-250HP)
--Air Cooled 3 Compressors Series R22 Units
1.Temperature:-5°C~5°C                    Models: JZHLGF2-90M---JZHLGF2-240M(90HP-240HP)
2.Temperature:-20°C~-15°C              Models:JZHLGF3-90L---JZHLGF3-300L(90HP-300HP)

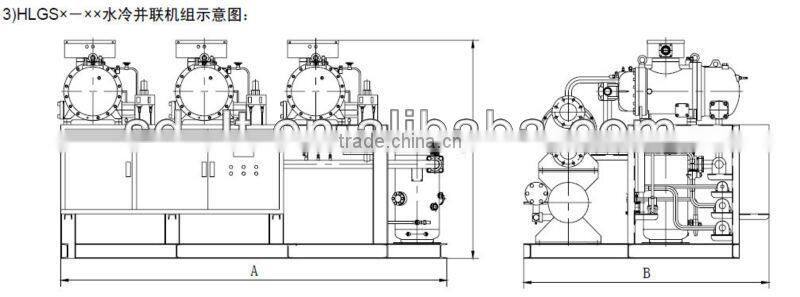

Technical Data Sheet for Water Cooled Semi-Hermetic Screw Compressor Racks (part)

Models Specifications :

 JZ   H   LG   F   2 --  100   M   F   Y
Notes: JZ:LVTE Company Products Code      H:Products Series Code
LG:Compressor Type Code: LG—Semi-closed screw comprssors        F:Cooling Way: F—Air-Cooled; S—Water-Cooled
2:Compressor Quantity:Others—Signle       100:Compressor power input(HP)
M:Temperature Code:M—Temperature:-5°C~8°C;L—Temperature:-20°C~-15°C

F:Compressor Model:F-Fusheng;Others—Hanbell
Y:Refrigerant:Y—R404A;A—R410A;C—R407C;Others—R22

1.Water Cooled Single Compressor Series R22 Units

  Design Working Condition: Evaporation Temperature -7°C;Cooling Water Temperature In/Out 30°C/35°C.
Temperature:-5°C~5°C.

Model JZHLGS-			30M	40M	50M	60M
Compressor	Model		RC2-100B	RC2-140B	RC2-180B	RC2-230B
	Type		Semi-hermetic Screw Comprssors
	Energy Regulation		66%-100%			50%-75%-100%
Capacity Power Input	Evaporation Temperature -5°C	Capacity(KW)	66.9	91.2	119.8	159
		Power(KW)	21.9	28.9	36.2	48.4
	Evaporation Temperature -7°C	Capacity(KW)	61.8	84.3	110.7	146.9
		Power(KW)	21.6	28.4	35.6	47.5
	Evaporation Temperature -10°C	Capacity(KW)	54.7	74.7	98.1	130.2
		Power(KW)	21	27.7	34.7	46.3
Applicable Room Temperature(°C)			-5°C~5°C
Refrigerant			R22
Power Supply			380V/3P/50HZ
Max Current		A	69	91	121	158
Condenser	Type		Efficient Shell and Tube Heat Exchanger
	Rated Water Flow (m3/h)		19	26	34	45
	Interface Diameter		DN65	DN65	DN80	DN80
Interface	Gas Diameter(mm)		Φ54	Φ54	Φ67	Φ76
	Liquid Diameter(mm)		Φ28	Φ28	Φ35	Φ35
Size	A(mm)		1700	1700	2150	2300
	B(mm)		670	670	680	770
	C(mm)		1100	1100	1100	1250
Installation Size a×b (mm)			120×390	120×390	120×390	1200×500

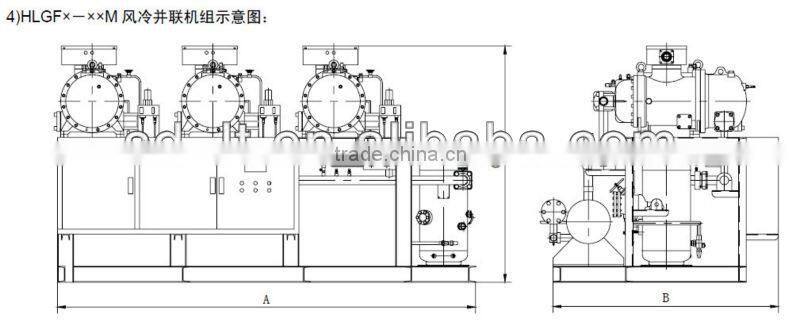

  Technical Data Sheet for Air Cooled Semi-Hermetic Screw Compressor Racks (part)

  Air Cooled Single Compressor Series R22 Units

 Design Working Condition: Evaporation Temperature -7°C;Ambient Temperzture 35°C.Temperature:-5°C~5°C.

Model JZHLGF-			30M	40M	50M	60M
Compressor	Model		RC2-100B	RC2-140B	RC2-180B	RC2-230B
	Type		Semi-hermetic Screw Comprssors
	Energy Regulation		66%-100%			50%-75%-100%
Capacity Power Input	Evaporation Temperature -5°C	Capacity(KW)	57.1	78	102.5	136
		Power(KW)	26.1	34.3	43.1	57.5
	Evaporation Temperature -7°C	Capacity(KW)	52.6	71.8	94.4	125.2
		Power(KW)	25.6	33.8	42.3	56.5
	Evaporation Temperature -10°C	Capacity(KW)	46.3	63.3	83.2	110.4
		Power(KW)	25	32.9	41.3	55.1
Applicable Room Temperature(°C)			-5°C~5°C
Refrigerant			R22
Power Supply			380V/3P/50HZ
Max Current		A	69	91	121	158
Interface	Gas in Diameter(mm)		Φ54	Φ54	Φ67	Φ76
	Liquid in Diameter(mm)		Φ28	Φ28	Φ35	Φ35
	Gas Out Diameter(mm)		Φ42	Φ42	Φ42	Φ54
	Liquid Out Diameter(mm)		Φ35	Φ35	Φ35	Φ35
Size	A(mm)		1730	1730	2300	2300
	B(mm)		700	700	700	770
	C(mm)		1100	1100	1100	1250
Installation Size a×b (mm)			1000×390	1000×390	1200×390	1200×390
