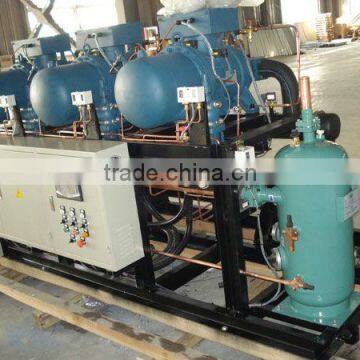

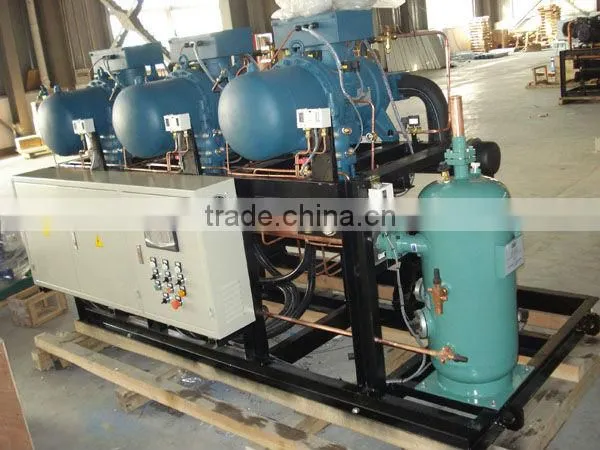

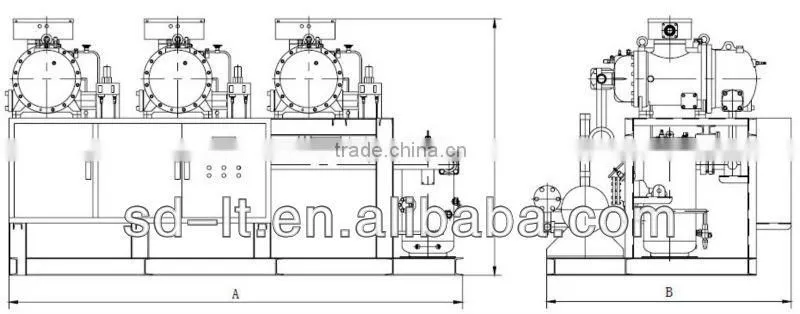

JZHLG Series Middle Temperature Screw Compressor Racks

Specifications

JZHLG Series Middle Temperature Screw Compressor Racks

Screw Compressor Racks Features

Used new type 5:6 asymmetric rotor semi-closed screw compressors, high efficiency, long life, low noise, etc.

Adopted the change of cooling load to multi-lever energy regulation, effectively reduce energy consumption.

Compressor coil temperature protection; exhaust temperature protection; low oil levels; Hydraulic differential protection; High&Low Pressure Protection.

Models Specifications

JZH LG F 2 --100 M F Y

JZH-LVTE Company Products Code

LG-Compressor Type Code: LG—Semi-closed screw comprssors

F-Cooling Way: F—Air-Cooled; S—Water-Cooled

2-Compressor Quantity:Others—Signle

100-Compressor power input(HP)

M-Temperature:M—Temperature:-5°C~5°C;L—Temperature:-20°C~-15°C

F-Compressor Brand:F-Fusheng;Others—Hanbell

Y-Refrigerant:Y—R404A;A—R410A;C—R407C;Others—R22

Model Details:

Water Cooled Compressor Racks; R22 Units

A. Temperature:-5°C~5°C(Middle and High Temperature Type)

a. Water Cooled Single Compressor Racks Models: JZHLGS-30M---JZHLGS-150M(30HP-150HP)

b. Water Cooled 2 Compressors Racks Models: JZHLGS2-60M---JZHLGS2-220M(60HP-220HP)

c. Water Cooled 3 Compressors Racks Models: JZHLGS3-90M---JZHLGS3-210M(90HP-210HP)

B. Temperature: -20°C~-15°C (Middle and Low Temperature Type)

a. Water Cooled Single Compressor Racks Models: JZHLGS-30L---JZHLGS-150L(30HP-150HP)

b. Water Cooled 2 Compressors Racks Models: JZHLGS2-60L---JZHLGS2-250L(60HP-250HP)

c. Water Cooled 3 Compressors Racks Models: JZHLGS3-90L---JZHLGS3-300L(90HP-300HP)

Air Cooled Compressor Racks; R22 Units

A. Temperature:-5°C~5°C(Middle and High Temperature Type)

a. Air Cooled Single Compressor Racks Models: JZHLGF-30M---JZHLGF-150M(30HP-150HP)

b. Air Cooled 2 Compressors Racks Models: JZHLGF2-60M---JZHLGF2-250M(60HP-250HP)

c. Air Cooled 3 Compressors Racks Models: JZHLGF3-90M---JZHLGF3-240M(90HP-240HP)

B. Temperature: -20°C~-15°C (Middle and Low Temperature Type)

a. Air Cooled Single Compressor Racks Models: JZHLGF-30L---JZHLGF-150L(30HP-150HP)

b. Air Cooled 2 Compressors Racks Models: JZHLGF2-60L---JZHLGF2-250L(60HP-250HP)

c. Air Cooled 3 Compressors Racks Models: JZHLGF3-90L---JZHLGF3-300L(90HP-300HP)

Water Cooled Compressor Racks; R22 Units

A. Temperature:-5°C~5°C(Middle and High Temperature Type)

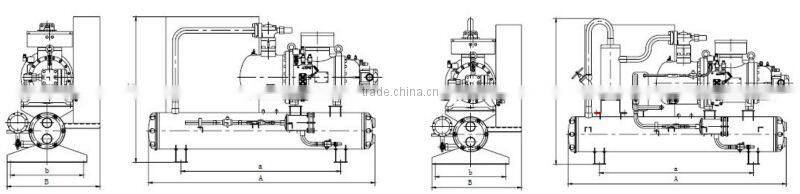

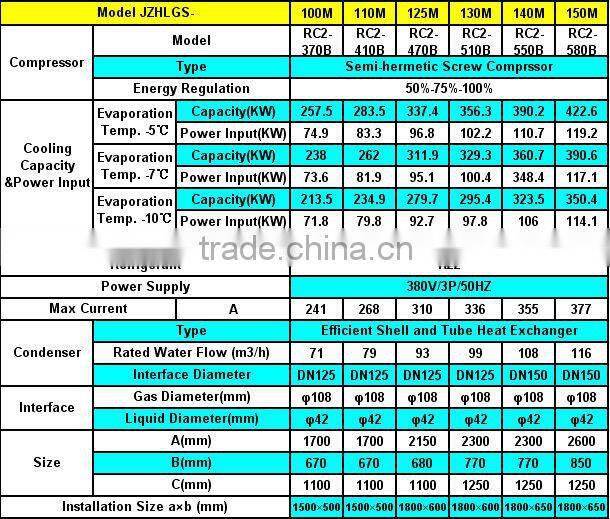

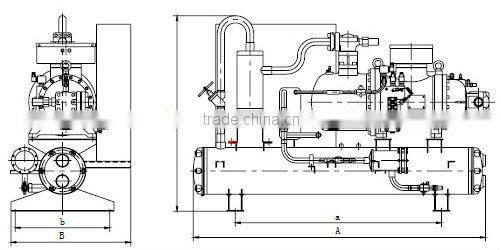

a. Water Cooled Single Compressor Racks Models: JZHLGS-30M---JZHLGS-150M(30HP-150HP)

Design Working Condition: Evaporation Temperature -7; Cooling Water Temperature In/Out 30°C/35°C.

JS-01(1) JS-01(2)

Water Cooled Compressor Racks; R22 Units

A. Temperature:-5°C~5°C(Middle and High Temperature Type)

b. Water Cooled 2 Compressors Racks Models: JZHLGS2-60M---JZHLGS2-220M(60HP-220HP)

Design Working Condition: Evaporation Temperature -7; Cooling Water Temperature In/Out 30°C/35°C.

JS-02(1) JS-02(2)

Water Cooled Compressor Racks; R22 Units

A. Temperature:-5°C~5°C(Middle and High Temperature Type)

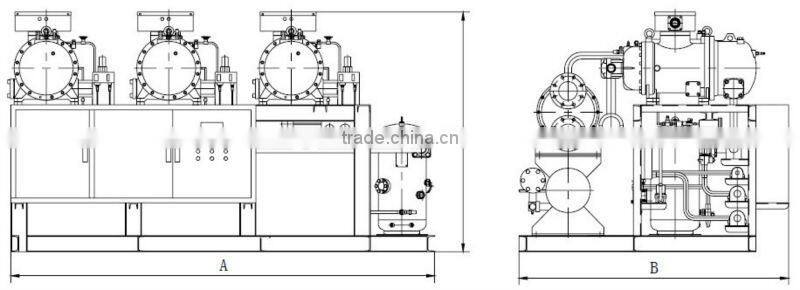

c. Water Cooled 3 Compressors Racks Models: JZHLGS3-90M---JZHLGS3-210M(90HP-210HP)

Design Working Condition: Evaporation Temperature -7; Cooling Water Temperature In/Out 30°C/35°C.

JS-03

Water Cooled Compressor Racks; R22 Units

B. Temperature:-20°C~-15°C(Middle and Low Temperature Type)

a. Water Cooled Single Compressor Racks Models: JZHLGS-30L---JZHLGS-150L(30HP-150HP)

Design Working Condition: Evaporation Temperature -23°C; Cooling Water Temperature In/Out 30°C/35°C.

Operating with Economizer.

JS-04(1) JS-04(2)

Water Cooled Compressor Racks; R22 Units

B. Temperature:-20°C~-15°C(Middle and Low Temperature Type)

b.Water Cooled 2 Compressors Racks Models: JZHLGS2-60L---JZHLGS2-250L(60HP-140HP)

Design Working Condition: Evaporation Temperature -23°C; Cooling Water Temperature In/Out 30°C/35°C.

Operating with Economizer.

JS-05(1) JS-05(2)

Water Cooled Compressor Racks; R22 Units

B. Temperature:-20°C~-15°C(Middle and Low Temperature Type)

c. Water Cooled 3 Compressors Racks Models: JZHLGS3-90L---JZHLGS3-300L(90HP-300HP)

Design Working Condition: Evaporation Temperature -23°C; Cooling Water Temperature In/Out 30°C/35°C.

Operating with Economizer.

JS-06

Air Cooled Compressor Racks; R22 Units

A. Temperature:-5°C~5°C(Middle and High Temperature Type)

a. Air Cooled Single Compressor Racks Models: JZHLGF-30M---JZHLGF-150M(30HP-150HP)

Design Working Condition: Evaporation Temperature -7°C;Ambient Temperature 35°C.

JS-07(1) JS-07(2)

Air Cooled Compressor Racks; R22 Units

A. Temperature:-5°C~5°C(Middle and High Temperature Type)

b. Air Cooled 2 Compressors Racks Models: JZHLGF2-60M---JZHLGF2-250M(60HP-250HP)

Design Working Condition: Evaporation Temperature -7°C;Ambient Temperature 35°C.

JS-08(1) JS-08(2)

Air Cooled Compressor Racks; R22 Units

A. Temperature:-5°C~5°C(Middle and High Temperature Type)

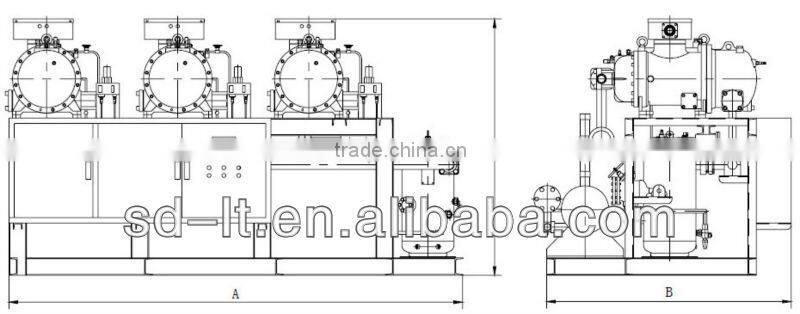

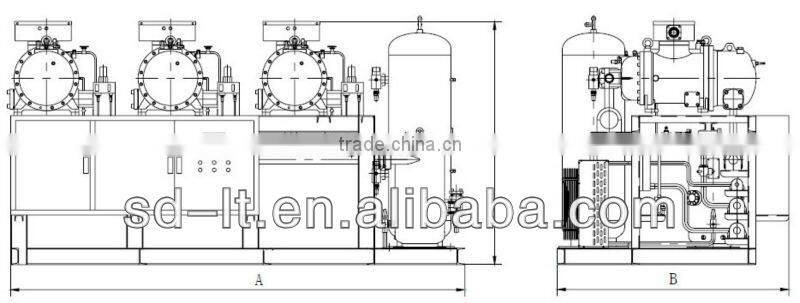

c. Air Cooled 3 Compressors Racks Models: JZHLGF3-90M---JZHLGF3-240M(90HP-240HP)

Design Working Condition: Evaporation Temperature -7°C;Ambient Temperature 35°C.

JS-09

Air Cooled Compressor Racks; R22 Units

B. Temperature:-20°C~-15°C(Middle and Low Temperature Type)

a. Air Cooled Single Compressor Racks Models: JZHLGF-30L---JZHLGF-150L(30HP-150HP)

Design Working Condition: Evaporation Temperature -23°C;Ambient Temperature 35°C. Operation with Economizer.

JS-10(1) JS-10(2)

Air Cooled Compressor Racks; R22 Units

B. Temperature:-20°C~-15°C(Middle and Low Temperature Type)

b. Air Cooled 2 Compressors Racks Models: JZHLGF2-60L---JZHLGF2-250L(60HP-250HP)

Design Working Condition: Evaporation Temperature -23°C;Ambient Temperature 35°C. Operation with Economizer.

JS-11(1) JS-11(2)

Air Cooled Compressor Racks; R22 Units

B. Temperature:-20°C~-15°C(Middle and Low Temperature Type)

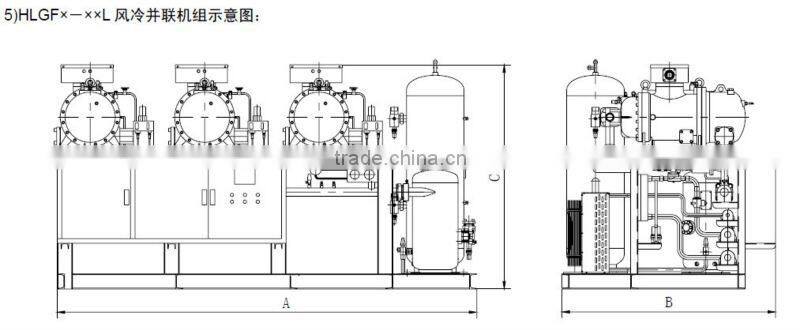

c. Air Cooled 3 Compressors Racks Models: JZHLGF3-90L---JZHLGF3-300L(90HP-300HP)

Design Working Condition: Evaporation Temperature -23°C;Ambient Temperature 35°C. Operation with Economizer.

JS-12(1) JS-12(2)
