Specifications
Screw Compressor Racks:1.semi-closed screw compressors
2.high efficiency
3.long life
4.Middle Temperature
Hanbell Screw Compressor Middle Temperature Screw Compressor Racks
Models Specifications
JZH LG F 2 --100 M F Y
JZH-LVTE Company Products Code
LG-Compressor Type Code: LG—Semi-closed screw comprssors
F-Cooling Way: F—Air-Cooled; S—Water-Cooled
2-Compressor Quantity:Others—Signle
100-Compressor power input(HP)
M-Temperature:M—Temperature:-5°C~5°C;L—Temperature:-20°C~-15°C
F-Compressor Brand:F-Fusheng;Others—Hanbell
Y-Refrigerant:Y—R404A;A—R410A;C—R407C;Others—R22
Model Details:
Water Cooled Compressor Racks; R22 Units
A. Temperature:-5°C~5°C(Middle and High Temperature Type)
a. Water Cooled Single Compressor Racks Models: JZHLGS-30M---JZHLGS-150M(30HP-150HP)
b. Water Cooled 2 Compressors Racks Models: JZHLGS2-60M---JZHLGS2-220M(60HP-220HP)
c. Water Cooled 3 Compressors Racks Models: JZHLGS3-90M---JZHLGS3-210M(90HP-210HP)
B. Temperature: -20°C~-15°C (Middle and Low Temperature Type)
a. Water Cooled Single Compressor Racks Models: JZHLGS-30L---JZHLGS-150L(30HP-150HP)
b. Water Cooled 2 Compressors Racks Models: JZHLGS2-60L---JZHLGS2-250L(60HP-250HP)
c. Water Cooled 3 Compressors Racks Models: JZHLGS3-90L---JZHLGS3-300L(90HP-300HP)
Air Cooled Compressor Racks; R22 Units
A. Temperature:-5°C~5°C(Middle and High Temperature Type)
a. Air Cooled Single Compressor Racks Models: JZHLGF-30M---JZHLGF-150M(30HP-150HP)
b. Air Cooled 2 Compressors Racks Models: JZHLGF2-60M---JZHLGF2-250M(60HP-250HP)
c. Air Cooled 3 Compressors Racks Models: JZHLGF3-90M---JZHLGF3-240M(90HP-240HP)
B. Temperature: -20°C~-15°C (Middle and Low Temperature Type)
a. Air Cooled Single Compressor Racks Models: JZHLGF-30L---JZHLGF-150L(30HP-150HP)
b. Air Cooled 2 Compressors Racks Models: JZHLGF2-60L---JZHLGF2-250L(60HP-250HP)
c. Air Cooled 3 Compressors Racks Models: JZHLGF3-90L---JZHLGF3-300L(90HP-300HP)

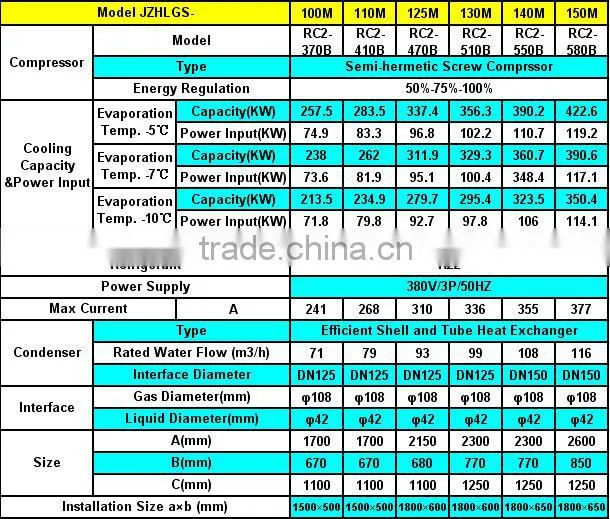

Water Cooled Compressor Racks; R22 Units
A. Temperature:-5°C~5°C(Middle and High Temperature Type)
a. Water Cooled Single Compressor Racks Models: JZHLGS-30M---JZHLGS-150M(30HP-150HP)
Design Working Condition: Evaporation Temperature -7; Cooling Water Temperature In/Out 30°C/35°C.
JS-01(1) JS-01(2)

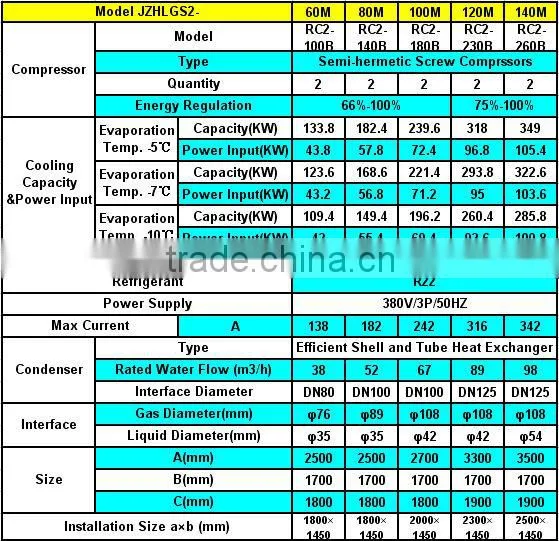

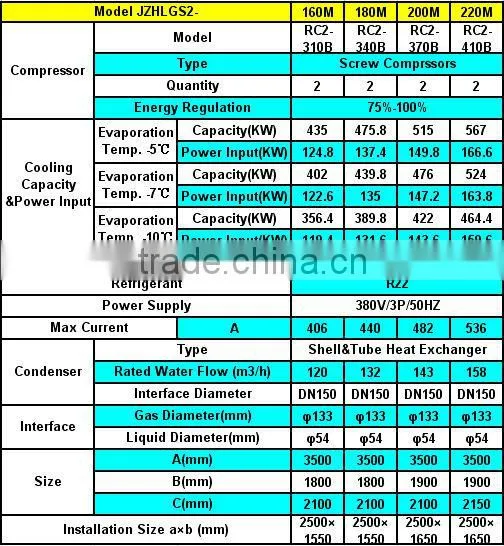

Water Cooled Compressor Racks; R22 Units
A. Temperature:-5°C~5°C(Middle and High Temperature Type)
b. Water Cooled 2 Compressors Racks Models: JZHLGS2-60M---JZHLGS2-220M(60HP-220HP)
Design Working Condition: Evaporation Temperature -7; Cooling Water Temperature In/Out 30°C/35°C.
JS-02(1) JS-02(2)

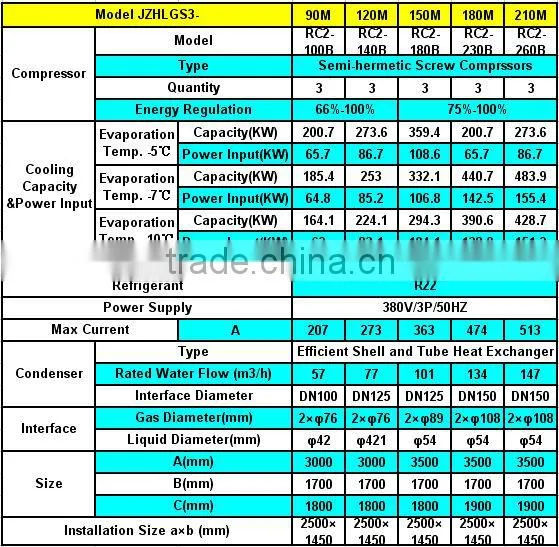

Water Cooled Compressor Racks; R22 Units
A. Temperature:-5°C~5°C(Middle and High Temperature Type)
c. Water Cooled 3 Compressors Racks Models: JZHLGS3-90M---JZHLGS3-210M(90HP-210HP)
Design Working Condition: Evaporation Temperature -7; Cooling Water Temperature In/Out 30°C/35°C.
JS-03

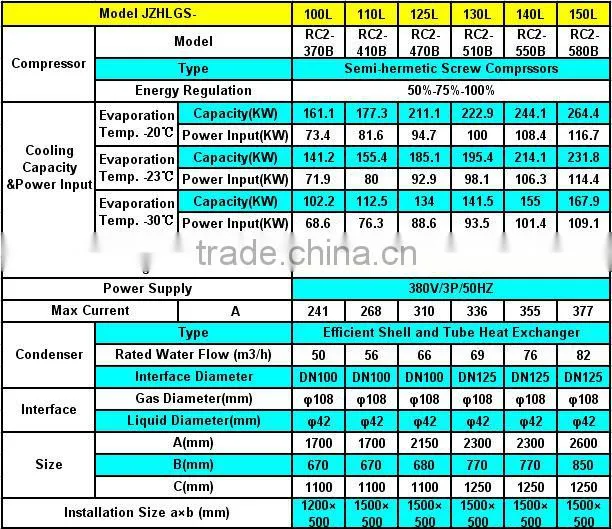

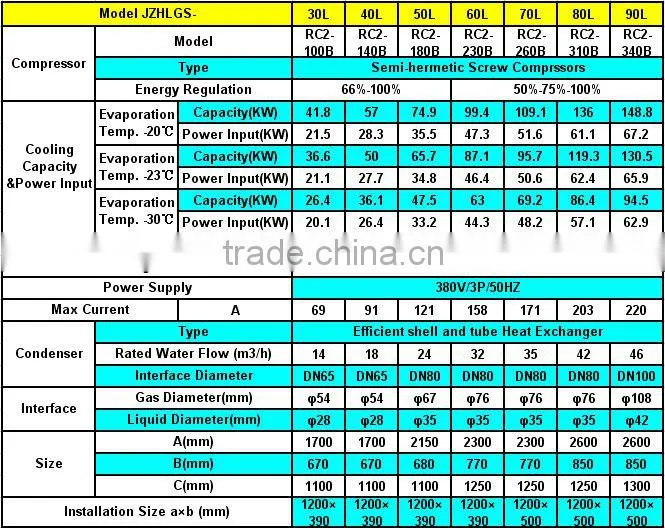

Water Cooled Compressor Racks; R22 Units
B. Temperature:-20°C~-15°C(Middle and Low Temperature Type)
a. Water Cooled Single Compressor Racks Models: JZHLGS-30L---JZHLGS-150L(30HP-150HP)
Design Working Condition: Evaporation Temperature -23°C; Cooling Water Temperature In/Out 30°C/35°C.
Operating with Economizer.
JS-04(1) JS-04(2)

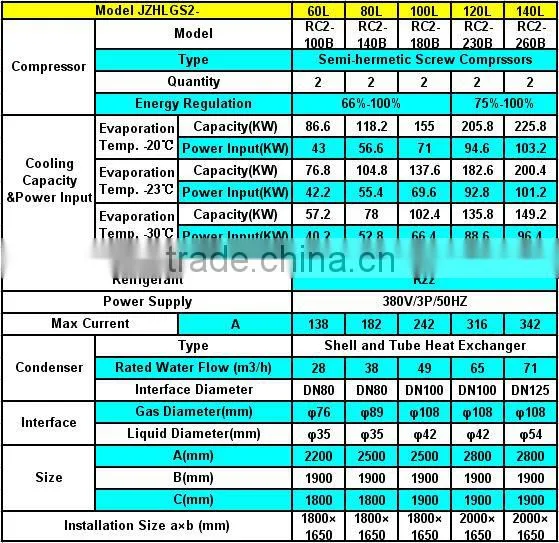

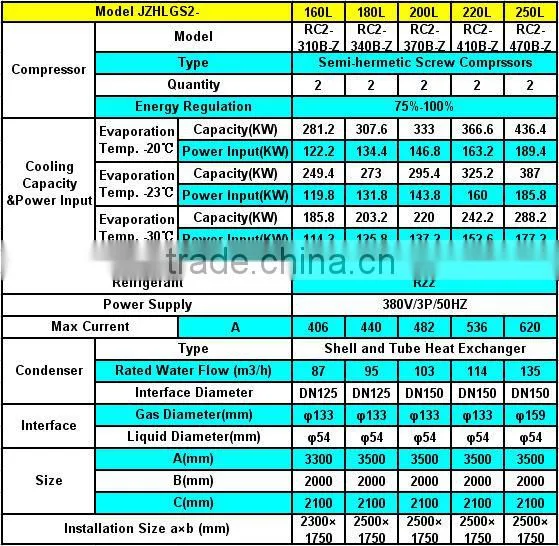

Water Cooled Compressor Racks; R22 Units
B. Temperature:-20°C~-15°C(Middle and Low Temperature Type)
b.Water Cooled 2 Compressors Racks Models: JZHLGS2-60L---JZHLGS2-250L(60HP-140HP)
Design Working Condition: Evaporation Temperature -23°C; Cooling Water Temperature In/Out 30°C/35°C.
Operating with Economizer.
JS-05(1) JS-05(2)

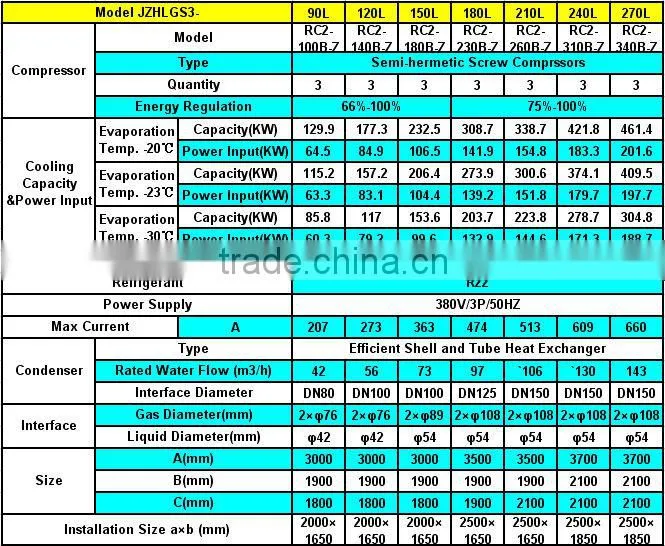

Water Cooled Compressor Racks; R22 Units
B. Temperature:-20°C~-15°C(Middle and Low Temperature Type)
c. Water Cooled 3 Compressors Racks Models: JZHLGS3-90L---JZHLGS3-300L(90HP-300HP)
Design Working Condition: Evaporation Temperature -23°C; Cooling Water Temperature In/Out 30°C/35°C.
Operating with Economizer.
JS-06
Air Cooled Compressor Racks; R22 Units
A. Temperature:-5°C~5°C(Middle and High Temperature Type)
a. Air Cooled Single Compressor Racks Models: JZHLGF-30M---JZHLGF-150M(30HP-150HP)
Design Working Condition: Evaporation Temperature -7°C;Ambient Temperature 35°C.
JS-07(1) JS-07(2)
Air Cooled Compressor Racks; R22 Units
A. Temperature:-5°C~5°C(Middle and High Temperature Type)
b. Air Cooled 2 Compressors Racks Models: JZHLGF2-60M---JZHLGF2-250M(60HP-250HP)
Design Working Condition: Evaporation Temperature -7°C;Ambient Temperature 35°C.
JS-08(1) JS-08(2)
Air Cooled Compressor Racks; R22 Units
A. Temperature:-5°C~5°C(Middle and High Temperature Type)
c. Air Cooled 3 Compressors Racks Models: JZHLGF3-90M---JZHLGF3-240M(90HP-240HP)
Design Working Condition: Evaporation Temperature -7°C;Ambient Temperature 35°C.
JS-09
