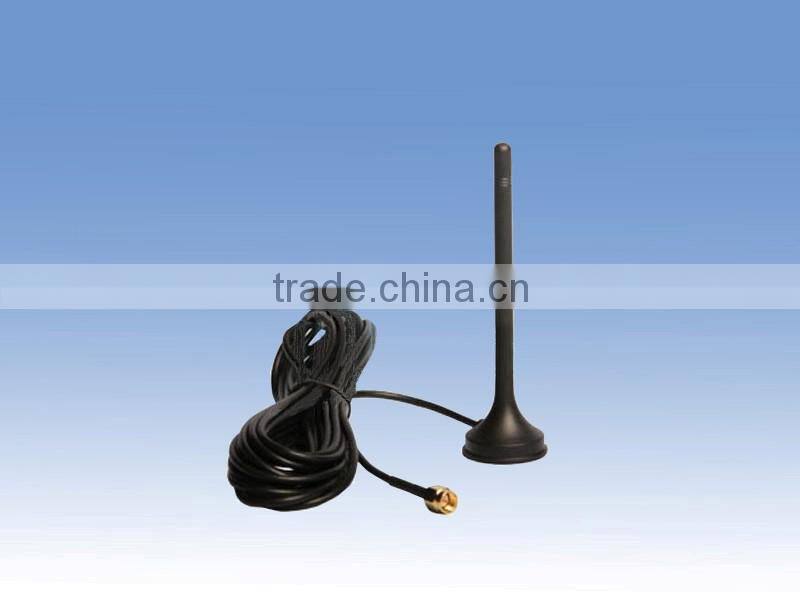

Help CenterGSM CDMA Antenna 800 Mhz Antenna
Related Products
-
SD34/Magnetic Antenna With RG174 CableUS$ 15.00 - 15.00MOQ: 100 Pieces -
SDD5/GSM CDMA Rubber AntennaUS$ 15.00 - 15.00MOQ: 100 Pieces
-
SD30/GSM CDMA Mini Magnetic Antenna With 3cm MagneticUS$ 15.00 - 15.00MOQ: 100 Pieces
-
800-2500Mhz in Building Wireless Antenna/WIFI/4G/LTE/GSM/CDMA/3G Patch Panel AntennaUS$ 5.00 - 5.00MOQ: 50 Pieces
-
900/1800MHZ Short Rubber Duck Gsm Antenna/right Angle Wireless Antenna 5km 10km 20km 30kmUS$ 2 - 3MOQ: 1 Piece
Electrical specifications | |
Frequency Range(MHz) |
800/1900 |
900/1800 | |
Impedance(ohm) |
50 |
Gain (dBi) |
4.5 |
Polarization |
Vertical |
Radiation |
Omni |
VSWR |
≤1.5 |
Maximum input power (W) |
50 |
Mechanical specifications | |
Connector |
SMA-Male |
Height |
315mm |
Diameter of Chassis |
42mm |
Coaxial Cable |
RG-58U |
Length of Cable |
5 m |
Reflector material |
Stainless Steel |
Color |
Black |
Operating temperature (℃) |
-40~80 |
Packaging & Shipping | |
MOQ |
10 piece (small or trial order), 100pcs for bulk order |
Packaging |
ShengDa Standard Package |
Loading Port |
XIAMEN |
Express Delivery |
DHL/UPS/FEDEX/EMS/TNT |
Terms of Payment |
T/T, Western Union, Paypal |
Our Services |
1.17 years experience .Shengda communication Ltd.,which mainly produce mobile antenna, Hand held antenna and marine antenna, base station antenna,yagi antenna products. |
2. Our sales will reply your inquiry in 24 working hours. |
3. Customized design is available, OEM are welcomed. |
4. Excellent after-sales service. |
Company Information |
Address: 16 Building BaoLong,XinHua North Road,Quanzhou City,Fujian Province,362000 China |
Tel: +86-595-28060697 Fax: +86-595-28060697 |
Skype ID:shengdacom |
