Specifications
Air Cooled ChillerCooling Capacity 10-140KW
Hermetic Scroll Compressor
Air Conditioning Cooling
R22, R134a, R410a, R407C

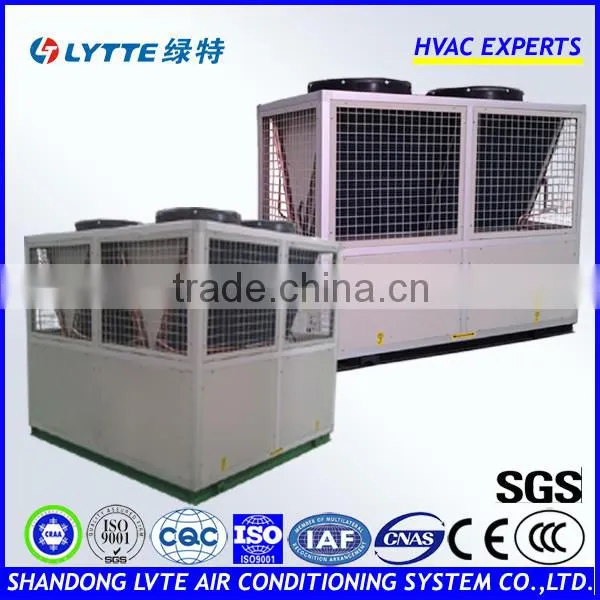

LTWF Series 10-140KW Air Cooled Chiller for Air Conditioning Cooling
Brief Introduction of LTWF(R) Series Air Cooled Chiller, 10-140KW Chiller
1) There are varity of CHILLER models capacities from 10kw to 140kw for different application.
2) CHILLER Units with V type heat exchanger: panels, frame and base are made from galvanized steel protected with polyester powder painting to ensure total resistance to atmospheric agents.
3) Chiller Units with U type heat exchanger: bearing structure in aluminum, panels in stainless steel,
4) 3-phase scroll type or piston type compressor, with built-in thermal overload cut-out and crank-case heater, mounted on rubber vibration damper.
5) External rotor type axial fans, equipped with three phase direct drive motors, low noise 8 poles, protection level IP54, provided with a protective outlet grille.
6) Chiller Evaporator built with high efficiency tube in tube type heat exchanger, factory insulated with flexible close cell material.
7) Chiller Condenser built with seamless copper tubes mechanically expanded into hydrophilic aluminum fins.
8) Chiller Refrigerant circuit complete with charge valves, filter drier, sight glass, gas-liquid separator, thermostatic expansion valve, high & low pressure switch. The heat pump unit is completed also with 4-way valve, liquid receiver and one way valve.
9) Hydraulic circuit built with galvanized pipe, complete with water discharge connection for tube in tube heat exchanger and flange type hydraulic connectors in two directions easy for connections from both sides of the units.
10) Electric panel consist of: compressor contactor, fan motor contactor, compressor protection breaker, fan protection breaker, phase sequence relay and microprocessor with function display (display only for master/packaged unit).
11) Automatic operation dramatically reducing repair cost thanks to reliable microprocessor system.
12) OPTIONAL
♦ Paddle flow switch;
♦ Metallic filter for hydraulic circuit;
♦ Water pump;
♦ Rubber antivibration mounting.
♦ Heat recovery functions
Model Specification for LTWF Air Cooled Chiller, 10-140KW Chiller:
LT W F (R) -- 10 A U
LT: Company Products Code
W: Scroll Compressor/P: Piston Comperssor
F: Air Cooled Type
R: Heat Pump/--: Chiller
10: Cooling Capacity(KW)
A:Refrigerant Type; --:R22/A: R407C/B:R410A/C:R134A
U: Finned heat exchanger type; U:U type coil/V: V type Coil
Air Cooled Chiller Model Specification:
* Ambient temperature 35ºC; evaporator water in/out 12/7 ºC;
** In the nominal water flow condition the pressure drop is between this range.
*** Sound pressure measured at a distance of 1 m and a height of 1.5 m above the ground in a dear field.
****Evaporator has the demands of Shell and Tube Heat Exchanger, Tube inTube Heat Exchanger etc. please notice when order, thanks.
* Ambient temperature 35ºC; evaporator water in/out 12/7 ºC;
** In the nominal water flow condition the pressure drop is between this range.
*** Sound pressure measured at a distance of 1 m and a height of 1.5 m above the ground in a dear field.
****Evaporator has the demands of Shell and Tube Heat Exchanger, Tube inTube Heat Exchanger etc. please notice when order, thanks.
Chiller, Air Cooled Chiller Delivery by Container:
Chiller, Air Cooled Chiller CE Certificate:
