Specifications
Air Cooled Modular Chiller1. Modular Type, Capacity expand to 1000KW
2. R22,R407C,R134A Available
3. Chiller Type
4. CE,ISO

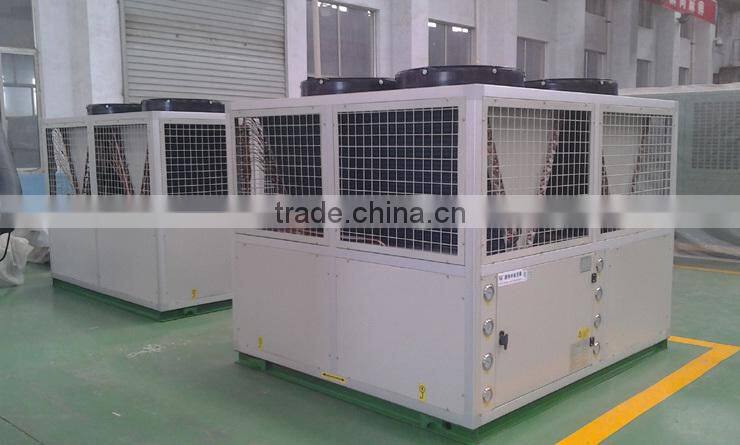

Air Cooled Modular Chiller
Founded in 2002, located in International Kite Capital Weifang City, Near Beijing and Qingdo Port. We are professional manufacturer of HVAC Equipments including Chiller (Air Cooled Chiller, Water Cooled Chiller, Water Chiller), Heat Pump (Water to Water Heat Pump, Air to Water Heat Pump, Water Source Heat Pump, Air Source Heat Pump, Ground Source Heat Pump, Geothermal Heat Pump), Fan Coil Unit (Duct Fan Coil, Ceiling Fan Coil, Cassette Fan Coil, Floor Fan Coil), Air Handling Unit (AHU, Ceiling and Cabinet AHU), New Air Heat Exchange Units etc. and Refrigeration Equipments and Parts including Condensing Unit (Copeland, Bitzer, Danfoss Units etc), Evaporator, Condenser, Compressor Racks etc for cold storage, freezer, blast freezing. Our products have rewarded of CE, ISO, UL, BV etc international certificate.
We have the advantages:
Quality Assurance
Excellent After-sales Service
Professional Technical Teams
Delivery on Time
Communication in Time
Competitive Prices
So welcome to inquiry us anything you want.
Air Cooled Modular Chiller Specification:
LT LS QW F C 60 U M
LT: Company Products Code
LS: Water Chiller
QW: Hermetic Scroll Compressor
F: Air Cooled Type
C: Refrigeration Type; --:R22/ A-R410a/ B-R134a/ C-R407C
60: Modular Size
U: Heat Exchanger Type; U-U type/V-V type
M: Module type; M: master module/ S: slave module/ P: packaged type
* Ambient temperature 35oC; evaporator water in/out 12/7 oC;
** In the nominal water flow condition the pressure drop is between this ranges.
*** Sound pressure measured at a distance of 1 m and a height of 1.5 m above the ground in a dear field.
Features FOR Air Cooled Modular Chiller
1) Master module can work independently or together with up to 7 slave modules, capacity from 63 to 504kW.
2) Units with V type heat exchanger: panels, frame and base are made from galvanized steel protected with polyester powder painting to ensure total resistance to atmospheric agents.
3) Units with U type heat exchanger: bearing structure in aluminum, panels in stainless steel, and base in painted section steel.
4)3-phase scroll type compressor, with built-in thermal overload cut-out and crankcase heater, mounted on rubber vibration dampers.
5)External rotor type axial fans, equipped with three phase direct drive motors, low noise 8 poles, protection level IP54, provided with a protective outlet grille.
6) Evaporator built with high efficiency tube in tube heat exchanger, insulated with flexible close cell material.
7) Condenser built with seamless copper tubes mechanically expanded into blue hydrophilic aluminum fins.
8) Refrigerant circuit complete with charge valves, filter drier, sight glass, gas-liquid separator, thermostatic expansion valve, high & low pressure switch. The heat pump unit is completed also with 4-way valve, liquid receiver and one way valve.
9) Hydraulic circuit built with galvanized pipe, complete with water discharge connection for tube in tube heat exchanger&flange type hydraulic connectors in two directions easy for connections from both sides.
10) Electric panel consist of: compressor contactor, fan motor contactor, compressor protection breaker, fan protection breaker, phase sequence relay and microprocessor with function display (display only for master/packaged unit)
11) Automatic operation dramatically reducing maintenance cost thanks to reliable microprocessor system.
12) OPTIONAL
a) Paddle flow switch; b) Metallic filter for hydraulic circuit; c) Water pump;
d) Rubber ant-vibration mounting; e) Heat recovery functions.
-Projects Design, Issuing the HVAC system drawings;
-Making quotation for the projects;
-Technical Support, System Guidance;
-Engineers sending to overseas for installation;
-Producing high quality equipments for the HVAC, Refrigeration projects;
-Installation, Maintenance Services;
