Specifications
Oil refinery equipment:Super wet degumming,
Bleaching earth automatic metering,
Negative pressure decoloring, etc..
Ms Della Guo
Phone:+86-15824882783 Skype: phoenix719914

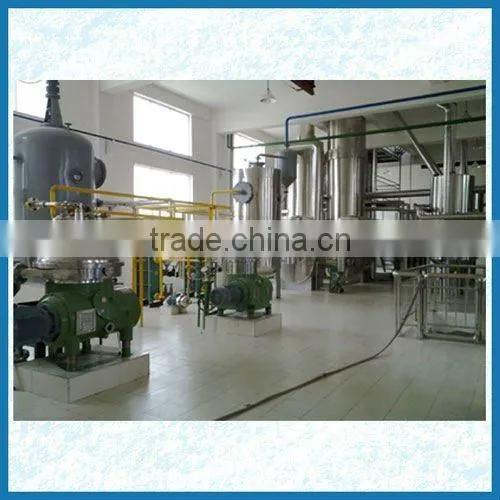

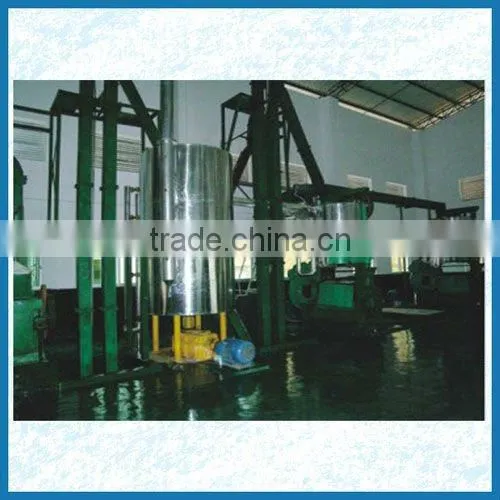

Oil Refinery Equipment
Basing on the traditional oil refining technology, Zhengzhou QI'E Grain and Oil Machinery Co.,Ltd has developed the latest combined packing layer plate deodorization soft tower and the physical and chemical mixed refining technology for crude oil of any quality. Moreover, a series of advanced technology and equipment are used, such as super wet deguming, bleaching earth automatic metering, negative pressure decoloring, high vacuum steam jet deodorization, deacidification, winterization dewaxing etc.. With advanced technology, superior equipment, full-automatic control and excellent economic and technical parameters, our equipment can meet customers' different refinery equipments at home and abroad.
Continuous Oil Refining Process Introduction
Alkali hot water
Crude oil→filter→mix→reactor→mix→reactor→centrifugal separation→oil residue
↑ ↓
Phosphoric acid hot water→mix ↓
↓
degumming oil←cooler←dry←centrifuge separation←mix←alkali liquor
↓ ↓
↓ vacuum steam jet pump←steam citric acid
↓ ↓
bleaching earth→mix→decoloring→filter→decoloring oil→mix→heat
↓
refined oil←filter←cool←deodorizing←vacuum
Main Processes Introduction
Hydration Deguming & Alkali Refining Deacidification Process
Neutralization: the crude oil is output by the oil feed pump from the oil tank, and next enters the crude oil heat exchanger to recover part of heat after metering and then is heated to the required temperature by the heater. After that, the oil is mixed with the metered phosphoric acid or citric acid from phosphate tank in the gas mixture (M401), and then enters the conditioning tank (R401) to make the non-hydratable phospholipids in oil change into the hydratable phospholipids. Add the alkali for neutralization, and the alkali quantity and alkali solution concentration depend on the quality of the crude oil. Through the heater, the neutralized oil is heated to the temperature (90°C) suitable for centrifugal separation to remove the phospholipids, FFA and other impurities in the crude oil. Then the oil goes to the washing process.
Washing: there is still about 500ppm soap in the neutralized oil from the separator. To remove the remaining soap, add into the oil about 5~8% hot water, with water temperature 3~5 °C higher than the oil generally. To achieve more stable washing effect, add phosphoric acid or citric acid when washing. The re-mixed oil and water in the mixer is heated to 90-95°C by the heater, and then enters the wash separator to separate the remaining soap and most water. The water with soap and oil enters into oil separator to separate out oil in the water. Further catch the oil outside, and the waste water is discharged to the sewage treatment station.
Vacuum drying stage: there is still moisture in the oil from the wash separator, and the moisture will affect the stability of the oil. So the oil at 90°C should be sent to vacuum drier to remove the moisture, and then the dehydrated oil goes to the decoloring process. Finally, pump out the dry oil by canned pump.
Continuous Refining Decoloring Process
The main function of decoloring process is to remove oil pigment, residual soap grain and metal ions. Under negative pressure, the mechanical mixing method combined with steam mixing will improve the decoloring effect.
The degummed oil firstly enters into the heater to be heated to the appropriate temperature (110°C), and then goes to the bleaching earth mixing tank. The bleaching earth is delivered from the low bleaching box to the temporary tank by wind. The bleaching earth is added by automatic metering and is interlockingly controlled with the oil.

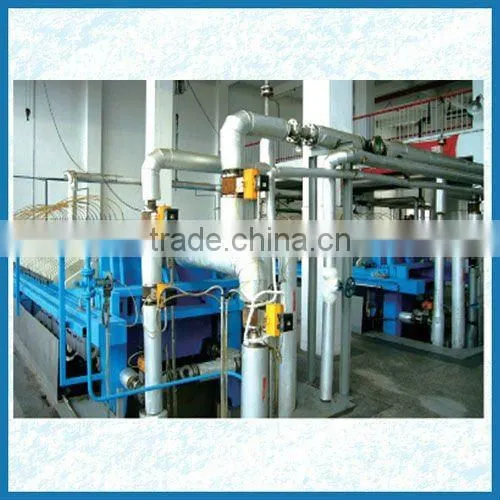

The oil mixed with the bleaching earth overflows into the continuous decolorizer, which is stirred by non-powered steam. The decolored oil enters into the two alternate leaf filters to be filtered. Then the filtered oil enters the decolored oil storage tank through the security filter. The decolored oil storage tank is designed as the vacuum tank with the nozzle inside, so as to prevent the decolored oil contacting with the air and influencing its peroxide value and color reversion.
Steam consumption |
700KG/T oil |
Electric consumption |
28Kwh/T oil |
Water (soften water) |
150Kg/T oil |
Phosphoric acid |
2~3 kg/T oil |
Alkali |
acid valuex1-3kg/T oil |
Circulating water cooling water yield |
150M3/H |
Bleaching earth consumption |
3-5Kg/T oil |
Waste bleaching earth oil content |
≤25~35% |
Refining losses |
acid valuex1.2 (chemical refining) acid valuex 0.6 (physics refining) |
Bleaching losses |
the quantity of bleaching earth×0.25% |
Deodorization loss consumption |
≤0.5%≤0.5% |
Refining rate |
1-refining consumption |
