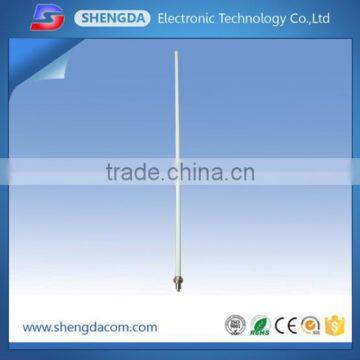

VHF Omni Base Station Antenna 2.2m Length With SO239 Connector

VHF Omni Base Station Antenna 2.2m Length With SO239 Connector thumbnail-1
VHF Omni Base Station Antenna 2.2m Length With SO239 Connector thumbnail-2
VHF Omni Base Station Antenna 2.2m Length With SO239 Connector thumbnail-3
VHF Omni Base Station Antenna 2.2m Length With SO239 Connector thumbnail-4
VHF Omni Base Station Antenna 2.2m Length With SO239 Connector thumbnail-5
VHF Omni Base Station Antenna 2.2m Length With SO239 Connector photo-1
VHF Omni Base Station Antenna 2.2m Length With SO239 Connector photo-2
VHF Omni Base Station Antenna 2.2m Length With SO239 Connector photo-3
VHF Omni Base Station Antenna 2.2m Length With SO239 Connector photo-4
VHF Omni Base Station Antenna 2.2m Length With SO239 Connector photo-5
US$ 10 - 30 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
OEM
Model Number:
SDBF2.4V
Contact Supplier Request Quote Chat Now
Quanzhou Shengda Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name OEM
Model Number SDBF2.4V
Product Description
Related Production

MRF0.6

Frequency Range(MHz): 800/900/1800/2100/2700MHz

VSWR: ≤1.5

Gain (dBi): 9

Material: Fiberglass

Height:550mm

Connector:SMA-Male

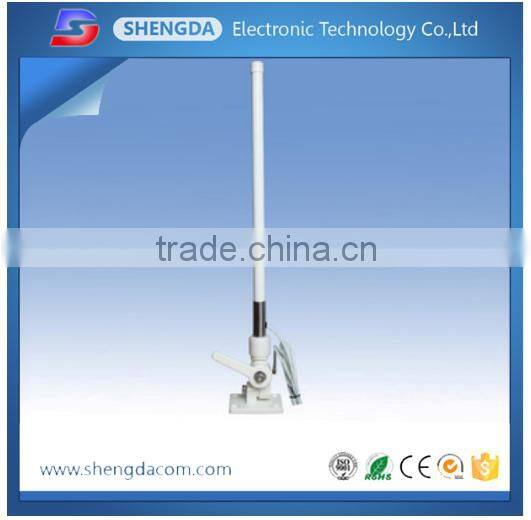

MRF120V

Frequency Range(MHz):156-163MHz
Gain (dBi):10.0
VSWR:≤1.5
Connector:N-Type
Height:1100mm
Material:Fiberglass, Nylon,Cupper
Mount Type:Standard Marine Mount
Cable Length/Type:3 m/RG58 U

MRF120W

Frequency Range(MHz):2400-2500MHz
Gain (dBi):10.0
VSWR:≤1.5
Connector:N-Type
Height:1000mm
Material:Fiberglass, Nylon,Cupper
Mount Type:Standard Marine Mount
Cable Length/Type:http://hz-productposting.china.cn/product/managementproducts/queryProductPreviewUrl.htm?id=603359994273 m/RG58 U

               MRF240C

Frequency Range(MHz):156-163MHz
Gain (dBi):6.5
VSWR:≤1.5
Connector:SO-239 or customization
Length:2400 mm
Packing weight (kg):1.3
Radiating Material:Cu
Radome Material:Fiberglass

                     MRF240V

Frequency Range(MHz):156-163MHz
Gain (dBi):6.5
VSWR:≤1.5
Connector:UHF-Male(PL259) or customization
Length:2400 mm
Radiating Material:Cu
Radome Material:Fiberglass

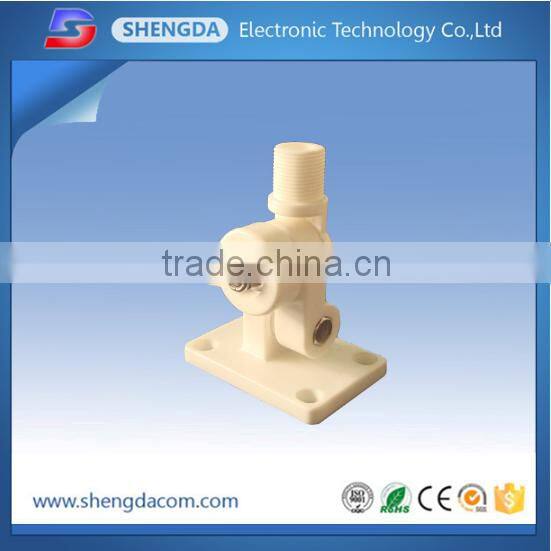

MRM01

MRM01 Reinforced Nylon 4-way Ratchet Marine mount with Standard 1"-14 male threads

Suitable for marine antenna and very popular in the market

Related Production

F22 Diamond antenna

Frequency Range: 144MHz
VSWR: less 1.5
Gain: 6.5 dBi
Length: 3200 mm
Radome Material: Fiberglass
Connector: UHF or N-Female

SDBF4.0  Diamond antenna

Frequency Range: 136-174MHz
VSWR: less 1.5
Gain: 8.5 dBi
Dimension: Ø38× 4000 mm
Radome Material: Fiberglass
Connector: UHF or N-Female

  SDBF5.0    CB base atennna

Frequency Range: 26-29MHz or 136-174MHz
VSWR: less than 1.5
Gain: 5.5dBi
Dimensions: Ø36× 3600mm
Radome Material: Aluminum Alloy
Connector: SO239(UHF)

X50 Diamond antenna(hot sale)

Frequency Range: 144/430MHz
VSWR: less 1.5
Gain: 4.5 dBi
Lenght: 1700 mm
Material:  Fiberglass
Connector: MJ/NJ

BC100 Diamond antenna

Frequency Range: 144/430MHz
VSWR: less 1.5
Gain: 5.5 dBi
Dimension: Ø38×1200 mm
Material: Cu and Fiberglass
Connector: UHF

D130 Diamond Discone antenna

Frequency Range: (25 to 1300MHz for receiving) (50/144/430/904/1200MHz for transmitting)
Coaxial cable:RG58A/U
Lenght: 1700 mm
Material: Cu and Fiberglass
Connector: SO239

Tips:All our diamond antennas are 100% original pakage and quality!
