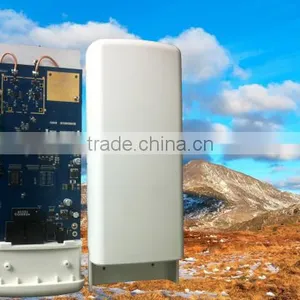

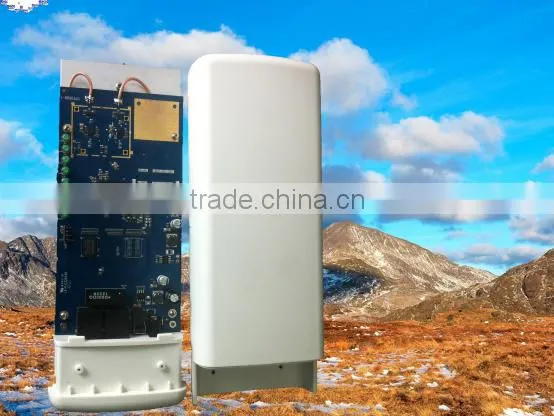

CP0015 Wireless Router AR9344

CP0015

1. Introduction

CP0015 is dedicated to long distance wireless network solutions,it features 14dBi high gain antenna dual polarization with high output power and high RX sensitivity can significantly extend the transmission range up to 1km-3km to deliver a more stable wireless connection and reduce the expense of equipment,It’s designed to deliver high reliability under harsh outdoor environment. Built-in advanced multi-functions provide flexibility in constructing scalable WiFi networks for all possible applications.

CP0015 offers bandwidth up to 300Mbps to accommodate heavy traffic services such as multimedia streaming. Establishing backbone network using 802.11a/n ensures stability and reduces interference since 802.11b/g instructure run rampant till now.

CP0015 provides seven operation modes for multiple users to access internet: AP/Gateway/WISP /WDS Bridge/ WDS Repeater/Client Bridge. Featuring passive power over Ethernet function is easy to deploy, To protect wireless connectivity,CP0015 encrypt wireless tranmissions through 64/128-bit WEP data encryption and also supports WPA/WPA2.The MAC address filter make you select exactly which stations should have access to your network.In addition,the User Isolation function can protect the private network between client and users.

  2.Features

-    2T2R,5.8GHz only

-    Data Rate up to 300Mbps

-    Signal Strength display(4 levels)

-    Multiple SSID up to 4

-    QoS:Traffic Control & WMM

-    Transmitting power and distance control(ACK Timeout)

-    High output transmission power and receiving sensitivity optimized

-    Support PTP and PTMP(Point to Multi-point)

-    Multi-operation mode :AP/Gateway/ WISP(CR)/WDS /Client Bridge

-    WPA2/WPA/AES/TKIP,SSH and 802.1x Authenticator

-    MAC & IP Address and URL Filter

-    Traffic statistics based port

-    Build-in WatchDog Timer

-    Supports Ping Watch Dog and Wireless Speed Test

-    Built-in NAT and DHCP server supporting Address Reservation

-    Supports UPnP, Dynamic DNS, Static Routing

-    Supports PPPoE, Dynamic IP, Static IP Internet Access

-    2 x LAN(10/100Mbps)FE

-    Web-based Administration Manager

-    IP65 outdoor Weather-proof housing

-    10dBi dual-polarized antenna to build long distance Wi-Fi connection

-    Passive POE(24V input) for flexible deployment

-    Emergency Recovery Push button Provide a self-aid page for users in case of firmware upgrade failure

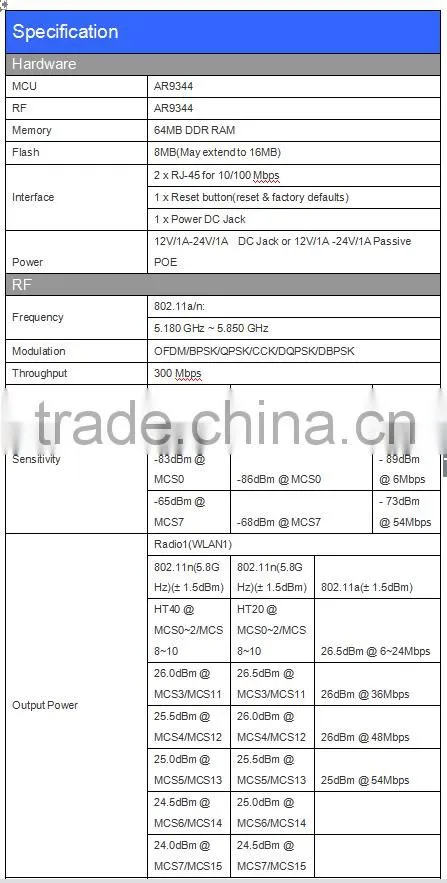

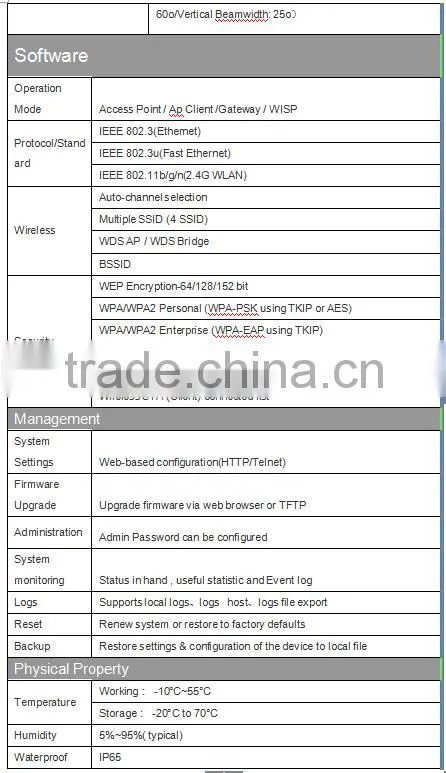

3. Specification

Our Services

It can be OEM, and use custom firmware.

Can make coloried. and welcome to ask FCC,CE,ROHS certs.

Company Information

 We have ourself SMD lines(YG200,JUKI KE 2070 and so on). tester  instrument(Litepoint IQFLEX,IQview,IQ201X,IQxel, Agilen spectrum analyzer). assembly lines and so on.

FAQ

 This module sourcecode is open for everyone.  our tech supporter should try our best to help all customers.
