CP-22E 2.7m Diamond VHF Fixed Station Antenna With High Gain High Performance

CP-22E 2.7m Diamond VHF Fixed Station Antenna With High Gain High Performance thumbnail-1
CP-22E 2.7m Diamond VHF Fixed Station Antenna With High Gain High Performance photo-1
US$ 20 - 50 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
OEM(Diamond Antenna)
Model Number:
CP22E(Diamond Antenna)
Contact Supplier Request Quote Chat Now
Quanzhou Shengda Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name OEM(Diamond Antenna)
Model Number CP22E(Diamond Antenna)
Product Description

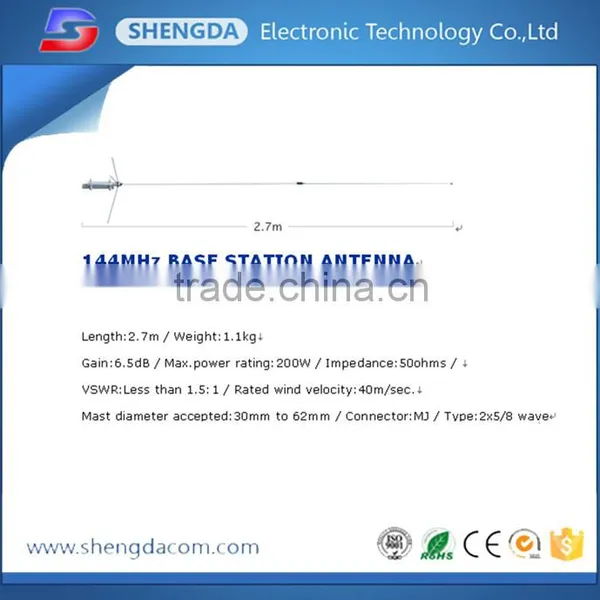

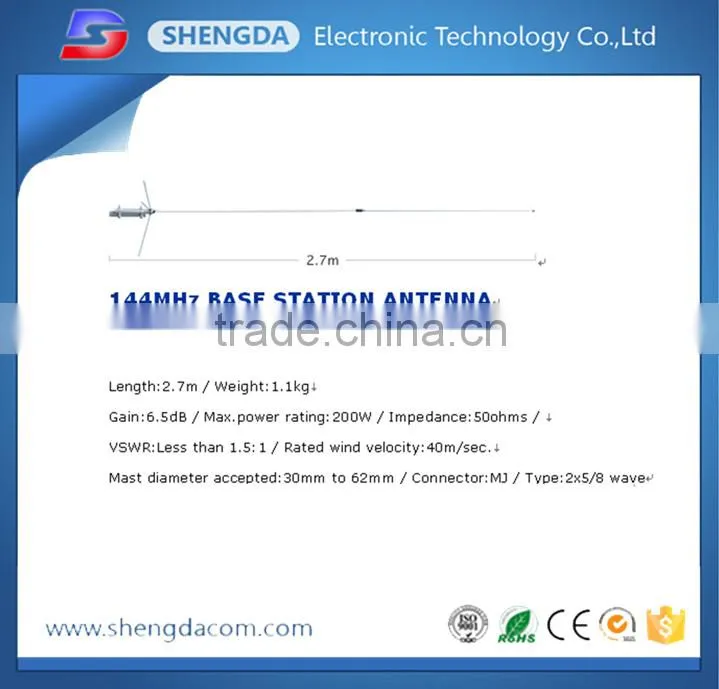

Diamond Model:CP-22E :144MHz(2m)

Length:2.7m

 Weight:1.1kg

Gain:6.5dB /

Max.power rating:200W

Impedance:50ohms

VSWR:Less than 1.5:1

Rated wind velocity:40m/sec.

Mast diameter accepted:30mm to 62mm

Connector:MJ

Type:2x5/8 wave

Related Production

MRF0.6

Frequency Range(MHz): 800/900/1800/2100/2700MHz

VSWR: ≤1.5

Gain (dBi): 9

Material: Fiberglass

Height:550mm

Connector:SMA-Male

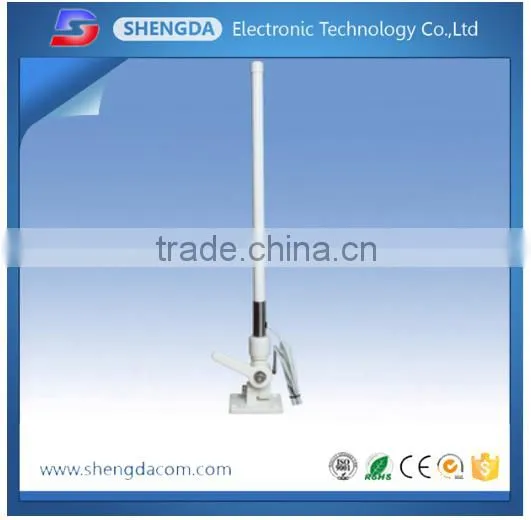

MRF120V

Frequency Range(MHz):156-163MHz
Gain (dBi):10.0
VSWR:≤1.5
Connector:N-Type
Height:1100mm
Material:Fiberglass, Nylon,Cupper
Mount Type:Standard Marine Mount
Cable Length/Type:3 m/RG58 U

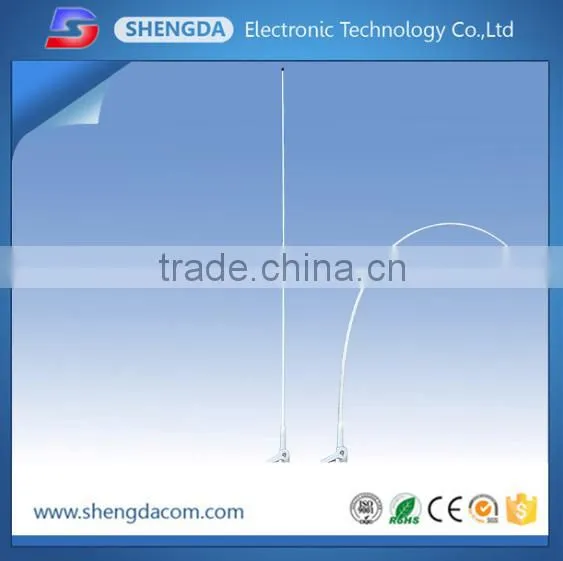

MRF120W

Frequency Range(MHz):2400-2500MHz
Gain (dBi):10.0
VSWR:≤1.5
Connector:N-Type
Height:1000mm
Material:Fiberglass, Nylon,Cupper
Mount Type:Standard Marine Mount
Cable Length/Type:https://img13.fr-trading.com/product/managementproducts/queryProductPreviewUrl.htm?id=603359994273 m/RG58 U

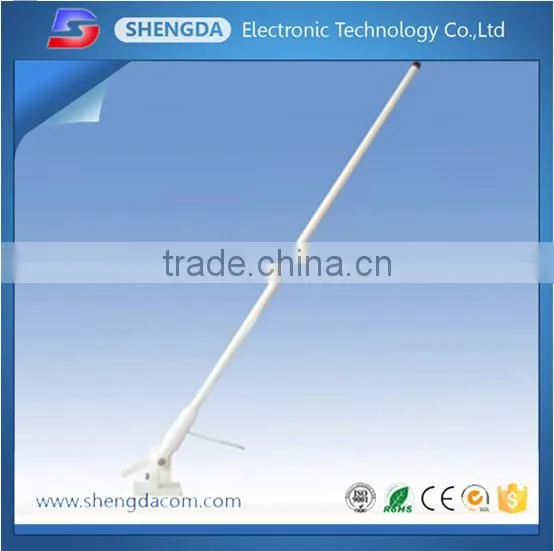

               MRF240C

Frequency Range(MHz):156-163MHz
Gain (dBi):6.5
VSWR:≤1.5
Connector:SO-239 or customization
Length:2400 mm
Packing weight (kg):1.3
Radiating Material:Cu
Radome Material:Fiberglass

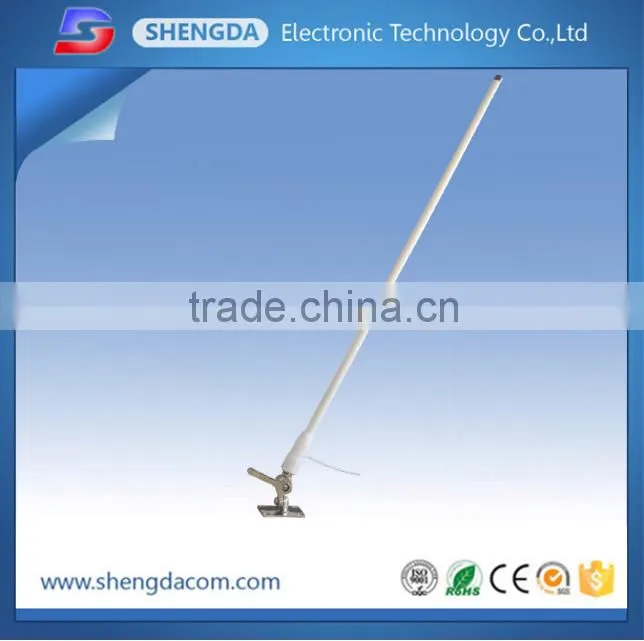

                     MRF240V

Frequency Range(MHz):156-163MHz
Gain (dBi):6.5
VSWR:≤1.5
Connector:UHF-Male(PL259) or customization
Length:2400 mm
Radiating Material:Cu
Radome Material:Fiberglass

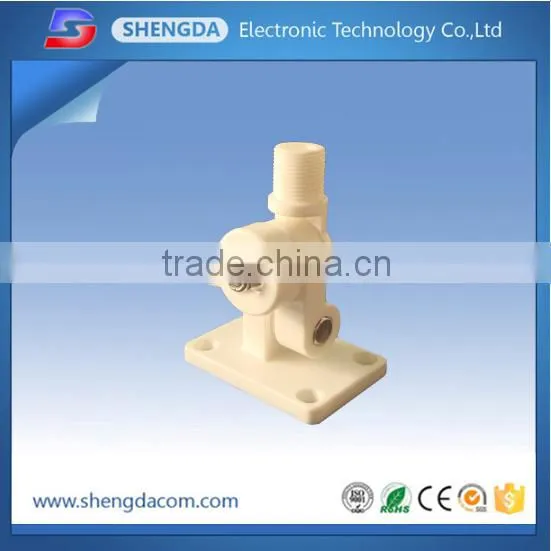

MRM01

MRM01 Reinforced Nylon 4-way Ratchet Marine mount with Standard 1"-14 male threads

Suitable for marine antenna and very popular in the market

Related Production

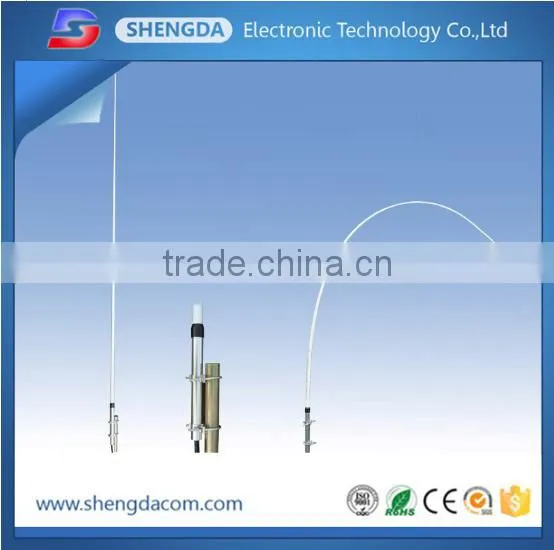

F22 Diamond antenna

Frequency Range: 144MHz
VSWR: less 1.5
Gain: 6.5 dBi
Length: 3200 mm
Radome Material: Fiberglass
Connector: UHF or N-Female

SDBF4.0  Diamond antenna

Frequency Range: 136-174MHz
VSWR: less 1.5
Gain: 8.5 dBi
Dimension: Ø38× 4000 mm
Radome Material: Fiberglass
Connector: UHF or N-Female

  SDBF5.0    CB base atennna

Frequency Range: 26-29MHz or 136-174MHz
VSWR: less than 1.5
Gain: 5.5dBi
Dimensions: Ø36× 3600mm
Radome Material: Aluminum Alloy
Connector: SO239(UHF)

X50 Diamond antenna(hot sale)

Frequency Range: 144/430MHz
VSWR: less 1.5
Gain: 4.5 dBi
Lenght: 1700 mm
Material:  Fiberglass
Connector: MJ/NJ

BC100 Diamond antenna

Frequency Range: 144/430MHz
VSWR: less 1.5
Gain: 5.5 dBi
Dimension: Ø38×1200 mm
Material: Cu and Fiberglass
Connector: UHF

D130 Diamond Discone antenna

Frequency Range: (25 to 1300MHz for receiving) (50/144/430/904/1200MHz for transmitting)
Coaxial cable:RG58A/U
Lenght: 1700 mm
Material: Cu and Fiberglass
Connector: SO239

Tips:All our diamond antennas are 100% original pakage and quality!
