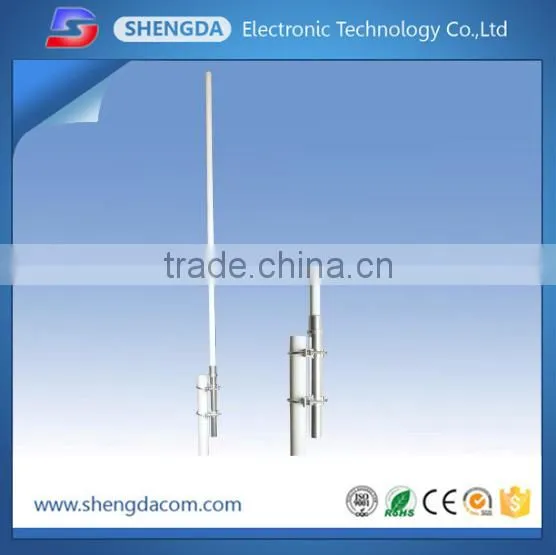

(144/430/1200MH) 3 Band 1.7m Fiberglass Marine Fixed Station Antenna With Stainless Steel Brackets Used for Fishing Boats SE5000

(144/430/1200MH) 3 Band 1.7m Fiberglass Marine Fixed Station Antenna With Stainless Steel Brackets Used for Fishing Boats SE5000 thumbnail-1
(144/430/1200MH) 3 Band 1.7m Fiberglass Marine Fixed Station Antenna With Stainless Steel Brackets Used for Fishing Boats SE5000 photo-1
US$ 20 - 50 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
OEM(Diamond Antenna)
Model Number:
SE5000 ( dIamond 3 bands station antenna)
Contact Supplier Request Quote Chat Now
Quanzhou Shengda Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name OEM(Diamond Antenna)
Model Number SE5000 ( dIamond 3 bands station antenna)
Product Description

X50 Frequency VSWR testing equipment result Youtube video:

        https://youtu.be/EQA63x-XIY0

Related Production

F22 Diamond antenna

Frequency Range: 144MHz
VSWR: less 1.5
Gain: 6.5 dBi
Length: 3200 mm
Radome Material: Fiberglass
Connector: UHF or N-Female

SDBF4.0  Diamond antenna

Frequency Range: 136-174MHz
VSWR: less 1.5
Gain: 8.5 dBi
Dimension: Ø38× 4000 mm
Radome Material: Fiberglass
Connector: UHF or N-Female

  SDBF5.0    CB base atennna

Frequency Range: 26-29MHz or 136-174MHz
VSWR: less than 1.5
Gain: 5.5dBi
Dimensions: Ø36× 3600mm
Radome Material: Aluminum Alloy
Connector: SO239(UHF)

X50 Diamond antenna

Frequency Range: 144/430MHz
VSWR: less 1.5
Gain: 4.5 dBi
Lenght: 1700 mm
Material:  Fiberglass
Connector: MJ/NJ

BC100 Diamond antenna

Frequency Range: 144/430MHz
VSWR: less 1.5
Gain: 5.5 dBi
Dimension: Ø38×1200 mm
Material: Cu and Fiberglass
Connector: UHF

D130 Diamond Discone antenna

Frequency Range: (25 to 1300MHz for receiving) (50/144/430/904/1200MHz for transmitting)
Coaxial cable:RG58A/U
Lenght: 1700 mm
Material: Cu and Fiberglass
Connector: SO239

Related Production

SDBF0.6FS Multi band antenna

Frequency Range(MHz):800/900/1800/1900/2100/2400/2700MHz
Gain (dBi):6.0
VSWR:≤1.5
Connector:FME
Length(with Barrel Spring):730 mm Length(without Barrel Spring):600mm
Material:Fiberglass,Cupper,Aluminum Alloy

      SDBF0.5-2.4G 3G 4G

Frequency Range(MHz):698-2700MHz
Gain (dBi):8.0
VSWR:≤2.0
Connector:N-Female
Dimension:Ø16× 540 mm
Material:Fiberglass,Cupper,Aluminum Alloy

         SDYL2-2.4G 3G 4G

Frequency Range(MHz):700-2700
Gain (dBi):12
Half-power beam width (°):Horz:63 Ver:49
VSWR:≤2.0
Connector:N-Type With Cable 200mm
Height/width/depth (mm):445×210×64
Reflector material:Aluminum Alloy
Radome material:PVC

     SDXD2-2.4G 3G 4G   Indoor

Frequency Range(MHz):698-2700
Impedance(ohm):50
Gain (dBi):3.0
Polarization:Vertical
Radiation:Omni
Vertical 3dB Beam Width:85°/40°
VSWR:<1.5
Maximum input power (W):50
Connector:N-Female(with 20cm RG-58U cable)
Dimensions:Ø167×100mm
Reflector Material:Aluminum Alloy
Radome Material:Abs

              SDWM5 -2.4G 3G 4G

Frequency Range(MHz):698-2700MHz
Impedance(ohm):50
Gain (dBi):8.0
Polarization:Vertical
VSWR:≤1.5
Maximum input power (W):100
Connector:N-Female With Cable of 300mm length
Connector position:N-Female
Height×width×depth (mm):210×180×44

       SDBF0.25

Frequency Range(MHz):
806-960/1710-2700 MHz
Gain (dBi):4/6
VSWR:≤1.5
Height:25cm(without bracket)
32cm(with bracket)
Radome Material:ABS
Radiating Element Material:

Zinc alloy
Connector Supplied:N-Female

Our Company
Packing & Delivery

Packing

Pack in Strong carton of antennas and radios

Delivery

3-15 days after payment confirmed

FAQ

Q1:What is your payment terms?

A: We accept the T/T,Western Union,Paypal and so on.

Q2:When can you arrange the shipment after I have placed and order?

A:If for the two way radio,usually we can arrange shipment within 15 days.

If for earphone and antenna,usually we can arrange the shipment 5-7 days.

Q3:Could you supply the sample for me to test first?

A:Yes,we can supply the sample first,however,the customer should pay the cost.

Q4:What is the MOQ of your products.

A:Usually,it is serious requirement.However,it depends in different products.

Q5:Can you accept customized?

A:OEM&ODM are welcomed.
