Help CenterLT150 Crawler Excavater
Related Products
Specifications
crawler excavater1.CE&ISO certificate
2.Brandly new style
3.Imported yanmar 4TNV106T enginee

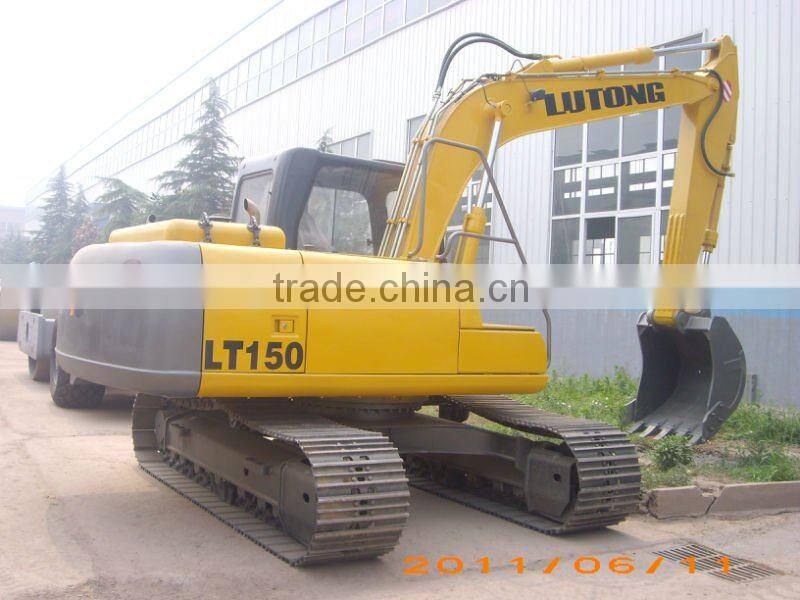

LT150-6 Crawler excavator
Enginee: | |
Model |
Imported yanmar 4TNV106T enginee |
Type |
Water-cooled .direct-spary.4 storke |
Displacement |
4.412 L |
Rated power |
69.9KW/2200.rpm(ISO9249) |
Max.output torque |
388.3N.m/1600.rmp(ISO9249) |
Hydraulic System: | |
Main pump |
2XColumn pump+ Column pump |
Max.displacement |
132.6 ml/r |
ure |
|
Boom,Arm,Bucket |
35Mpa |
Travel circuit |
35Mpa |
Swing circuit |
24Mpa |
Control circuit |
4Mpa |
Pilot pump |
4Mpa |
Main valve |
9 Variable |
Swing Syetem: | |
Parking brake |
When swing control rod in the neutral |
Tail swing radius |
2130 mm |
Swing ball bearing |
Heavy load.sealed oil lubrication |
Fuel tank |
220L |
Hydraulic oil tank |
80L |
Cool ant |
20L |
Travel drive |
2X3.5L |
Sing drivew |
3.8L |
Air conditioner |
1kg |
Operating weight |
15000kg |
Cylinger: | |
Bore X Stroke X diameter |
|
Boom |
2XΦ105X990X75(mm) |
Arm |
Φ115X1060X80(mm) |
Bucket |
Φ100X6852X75(mm) |
