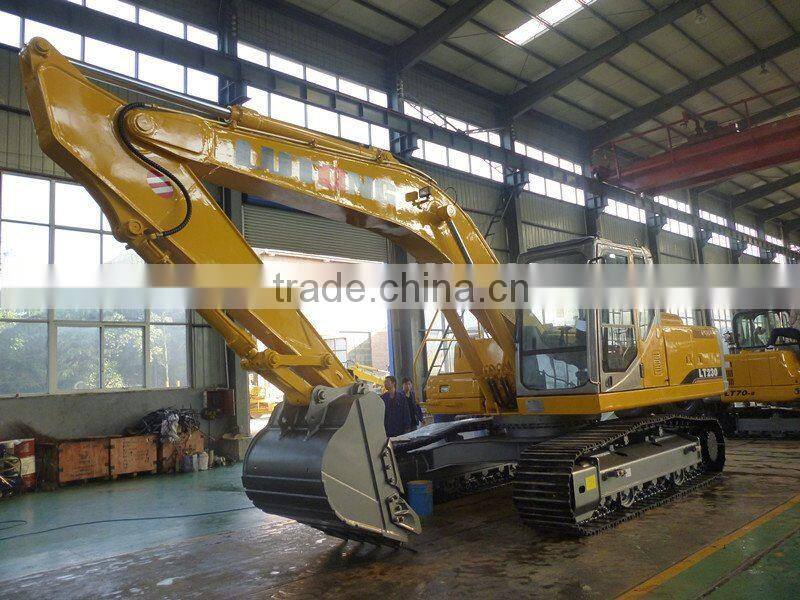

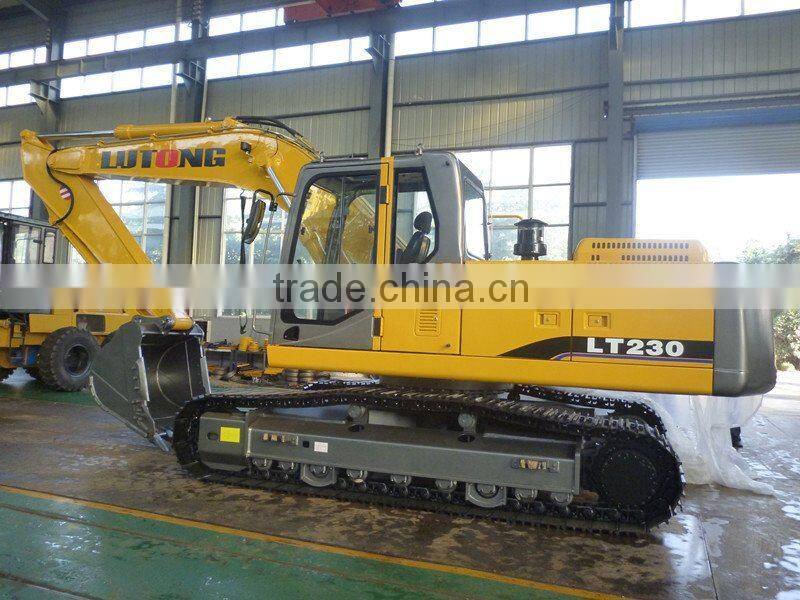

LT230 Crawler Excavater

Name: LT230 Crawler Excavater
Brand: LUTONG
SKU: 111184747
Availability: InStock

US$ 75,000 - 78,000 MOQ: 1 Unit

Key Specifications

Place of Origin:

Henan, China

Brand Name:

LUTONG

Model Number:

LT230-6

Luoyang Lutong Heavy Industry Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name LUTONG

Model Number LT230-6

Condition New

Moving Type Crawler Excavator

Operating Weight 23000kg

Bucket capacity 1.0-1.2m³

Maximum Digging Height 9389mm

Maximum Digging Depth 6165mm

Machine Weight 22400kg

Max Digging Radius 9540mm

Specifications

crawler excavater
1.CUMMINS engine powerful
2.Advanced hydraulic system
3.We offer free spare parts
4.Comfortable cabin

LT230-6 Crawler excavator

Model			LT230-6
Bucket capacity		m3	1.0~1.2
Standard bucket width		mm	1,000
Operation weight		kg	22,400
Dimension (in transportation)	Overall length	mm	9,760
	Overall width	mm	5,245
	Overall height	mm	3,025
	Min. clearance	mm	454
Engine	Model		6BTA5.9-C4
	Total displacement	L	5.9
	Rated output power	KW/rpm	125/2000
Digging performance	Max. digging height	mm	9,388
	Max. dumping height	mm	6,660
	Max. digging depth	mm	6,758
	Max. vertical digging depth	mm	6,103
	Max. digging radius	mm	9,738
	Boom deflection angle	°
	Min. slew radius	mm	3,573
	Min. rear slew radius	mm	7,809
	Bucket digging force	kn	140
Track type			Steel
Track width		mm	600
Travel system	Track length	mm	4,467
	Wheel base	mm	2,990
	Track gauge	mm	2,390
	Travel speed (Gear I/II)	km/h	5.21/3.16
	Gradeability	%	70
Slew speed		rpm	12.3
Bulldozing plate	Bulldozing plate width	mm
	Bulldozing plate height	mm
	Lifting distance	mm
Hydraulic pump type			Variable pump×2 +gear pump×1
Slew motor type			Piston hydraulic motor
Travel motor type			Piston hydraulic motor
Fuel tank capacity		L	350
Hyraulic oil tank capacity		L	280
