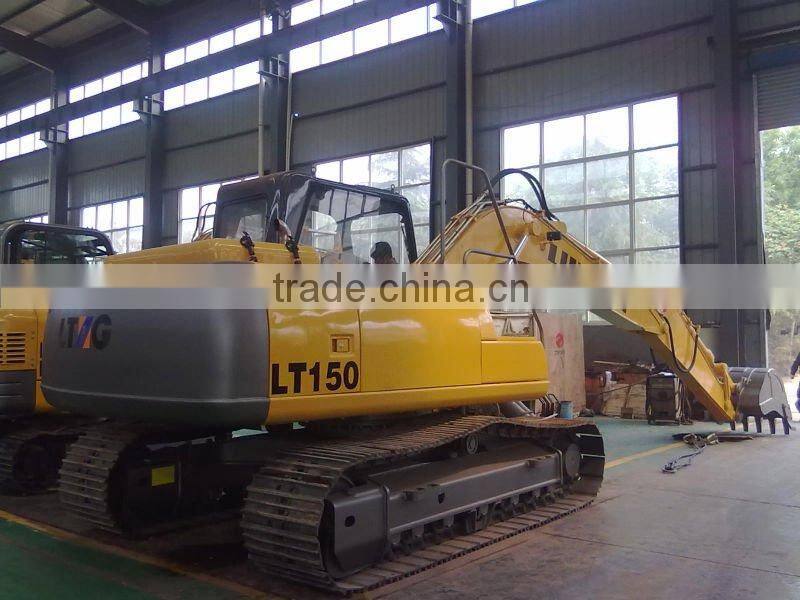

Crawler Excavator Yanmar Mini Excavator

Name: Crawler Excavator Yanmar Mini Excavator
Brand: LuTong
SKU: 111184667
Availability: InStock

Luoyang Lutong Heavy Industry Machinery Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Henan, China

Brand Name:

LuTong

Model Number:

LT150-6

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port/Tianjin Port/Qingdao Port-

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name LuTong

Model Number LT150-6

Condition New

Moving Type Crawler Excavator

Operating Weight 6800kg

Bucket capacity 2100*420 (W*H)

Maximum Digging Height 5752mm

Maximum Digging Depth 4022mm

Machine Weight 7000Kg

Max Digging Radius 6387mm

Specifications

1.Crawler Excavator Imported yanmar 4TNV106T enginee;
2.Excavator water-cooled.direct-spary.4 storke

Crawler Excavator: Engine
Model	Imported Yanmar 4TNV106T enginee
Type	Water-cooled .direct-spary.4 storke

BoreXstorke	106mmX 125 mm
Displacement	4.412 L
Rated power	69.9kw/2200.rpm(ISO9249)
Max.output torque	388.3N.m/1600.rmp(ISO9249)
Crawler Excavator: Hydraulic System
Main pump	2XColumn pump+ Column pump
Max.displacement	132.6 ml/r
ure
Boom,Arm,Bucket	35Mpa
Travel circuit	35Mpa
Swing circuit	24Mpa
Control circuit	4Mpa
Pilot pump	4Mpa
Main valve	9 Variable
Crawler Excavator: Swing Syetem
Parking brake	When swing control rod in the neutral automatic hydraulic lock


Tail swing radius	2130 mm
Swing ball bearing	Heavy load.sealed oil lubrication

Fuel tank	220L
Hydraulic oil tank	80L
Cool ant	20L
Travel drive	2X3.5L
Swing drive	3.8L
Air conditioner	1kg
Operating weight	15000kg
Crawler Excavator: Cylinger
Bore X Stroke X diameter
Boom	2XΦ105X990X75(mm)
Arm	Φ115X1060X80(mm)
Bucket	Φ85X600X55(mm)
Blade	Φ100X852X75(mm)
