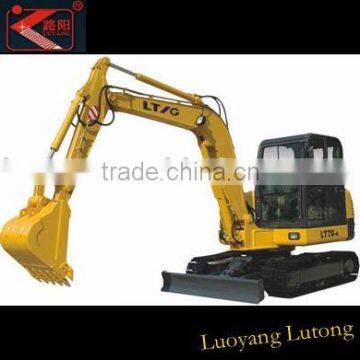

Crawler Excavator CUMMINS Excavator

Name: Crawler Excavator CUMMINS Excavator
Brand: LuTong
SKU: 111184669
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Henan, China

Brand Name:

LuTong

Model Number:

LT230-6

Luoyang Lutong Heavy Industry Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port/Tianjin Port/Qingdao Port-

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name LuTong

Model Number LT230-6

Condition New

Moving Type Crawler Excavator

Operating Weight 6800kg

Bucket capacity 1.0~1.2m³

Maximum Digging Height 9388mm

Maximum Digging Depth 6758mm

Machine Weight 23000Kg

Max Digging Radius 6387mm

Specifications

1.Crawler Excavator Imported CUMMINS enginee;
2.Excavator water-cooled.direct-spary.4 storke

Crawler Excavator: Engine
Model	Imported CUMMINS 6BTA5.9 enginee
Type	Water-cooled .direct-spary.4 storke

BoreXstorke	106mmX 125 mm
Displacement	5.9 L
Rated power	125kw/2000.rpm(ISO9249)
Governor	all speed control
Crawler Excavator: Hydraulic System
Main pump	Negative flow+Cross power system
Max.flow	2X238L
Hydraulic motor
Propel hydraulic motor	Two axial-pison motors
Swing hydraulic motor	Axial-piston motors
Swing circuit	30Mpa
Control circuit	4.2Mpa
Boom	2-&125X1290X&85
Cylinder
Crawler Excavator: Swing Syetem
Parking brake	When swing control rod in the neutral automatic hydraulic lock


Tail swing radius	2130 mm
Swing ball bearing	Heavy load.sealed oil lubrication

Fuel tank	220L
Hydraulic oil tank	80L
Cool ant	20L
Travel drive	2X3.5L
Swing drive	3.8L
Air conditioner	1kg
Operating weight	23000kg
Crawler Excavator: Cylinger
Bore X Stroke X diameter
Boom	2XΦ125X1290X85(mm)
Arm	Φ140X1510X100(mm)
Bucket	Φ125X1055X85(mm)
Blade	Φ100X852X75(mm)
