Specifications
PY220C 220HP Hydrodynamic Self-propelled Motor Grader1.220hp motor grader;
2.Powerful Cummins 6CTA8.3 engine;
3.F6+R3 gea

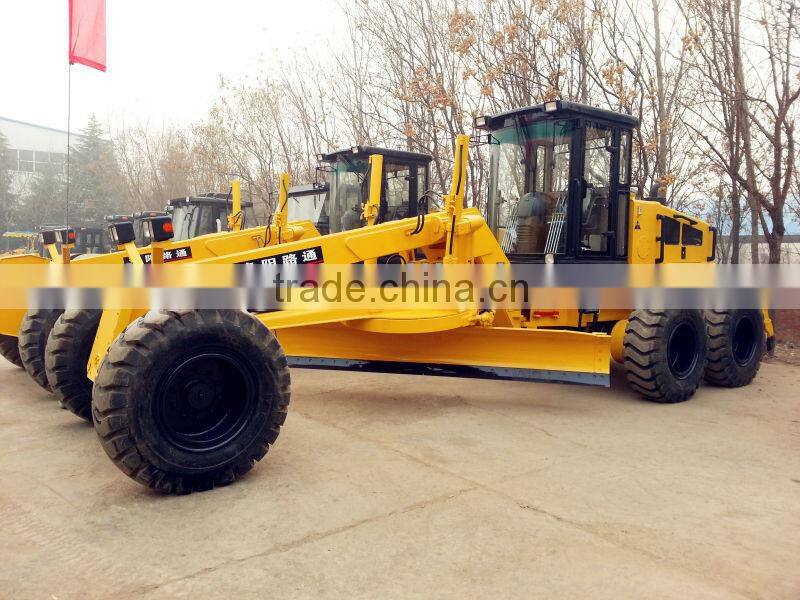

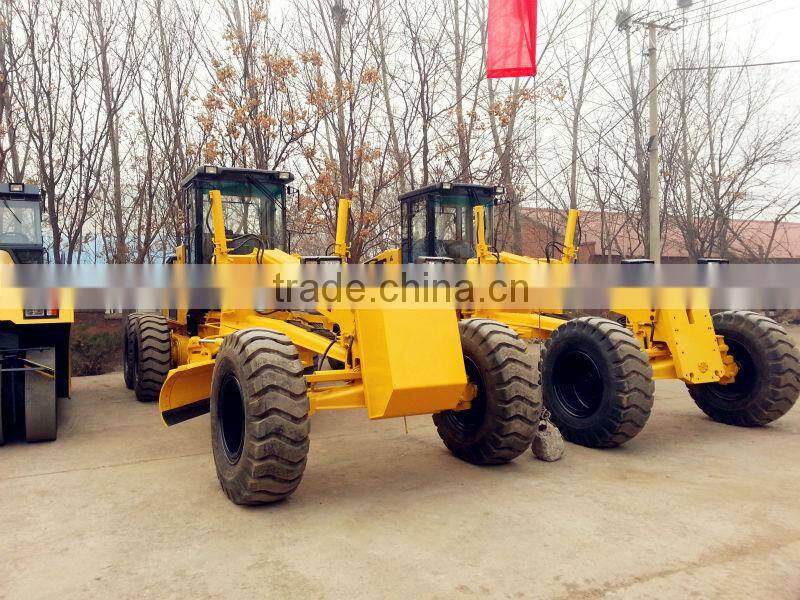

220HP LUTONG Hydrodynamic Self-Propelled Motor Grader PY220C
Main Features
1. Famous brand diesel engines turbocharged and water-cooled with reliable and powerful performance feature energy.
2. Torque converter and power-shift gearbox introduced from GERMANY ZF inc. are integrated together. Six forward gears and three backward gears meet various requirements during machine’s working and transporting.
3. Driving axle with integrated free-wheel anti-slip differential and strong roller chain drive tandem case, Boxed oscillated steering front axle with leaned wheels.

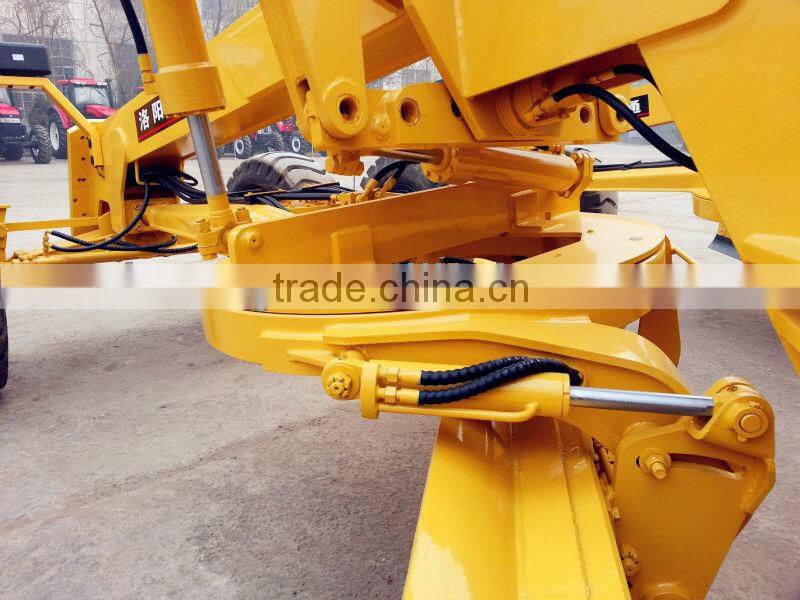

4. Popular working mechanism with pendulum-arm connecting rod structure, Standard equipped free-maintenance rolling-plate circle device. Double cylinders of the blade tip control can adjust the cutting angle depending on soil quality.
5. Flexible hydraulic control system with two sets of HUSCO five way control valve, Imported hydraulic equalizing valve for the blade lifting, Patent hydraulically –operated pin drawing device is designed firstly in board.
6. Steering system with center articulate joint and tilting turning front wheels can get offset travel of the entire machine.
7. Service braking system of, caliper disc brakes on four rear wheels and mechanical internal expanding parking brake let.
8. Dual diagonal appearance with whole metal hood 1m×1m distance.
9. Electro-hydraulically operated with entire instrumental monitoring system, Free-maintenance OPTIMA Sweden batteries have.

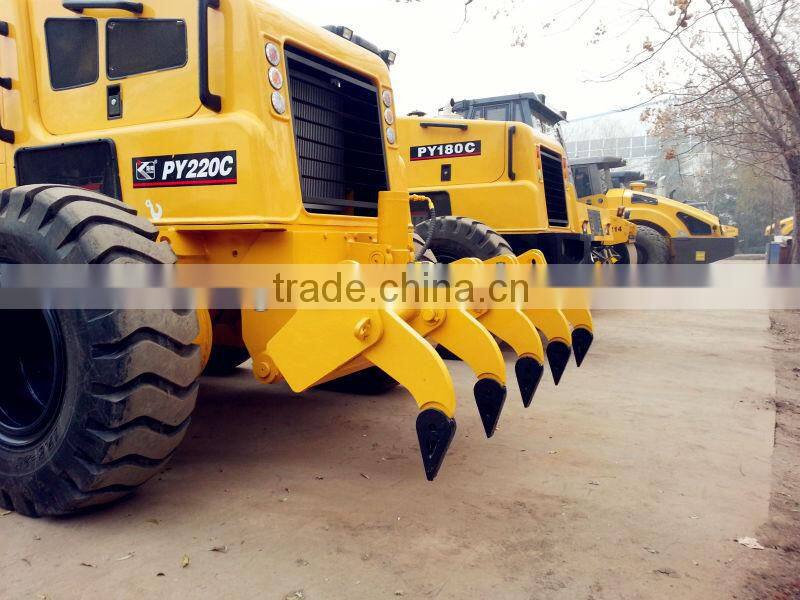

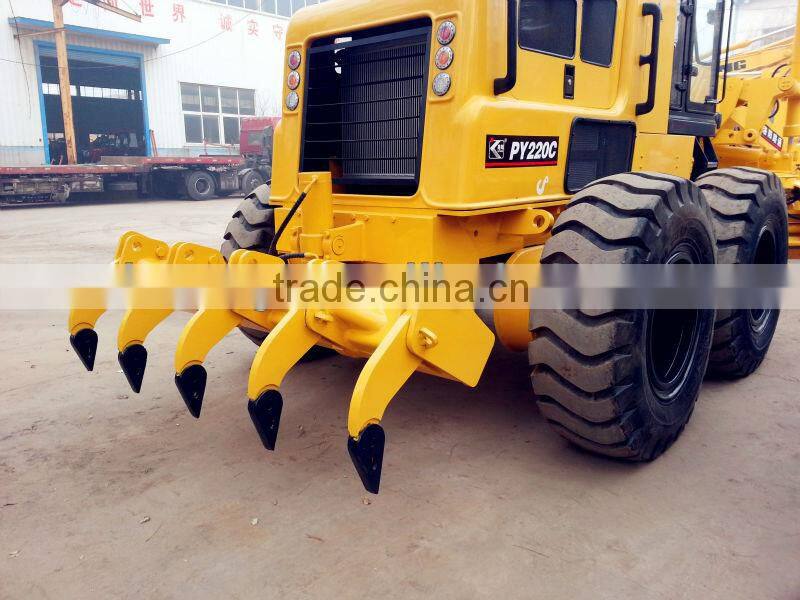

10. It is optional for front bulldozing plate and rear ripper.

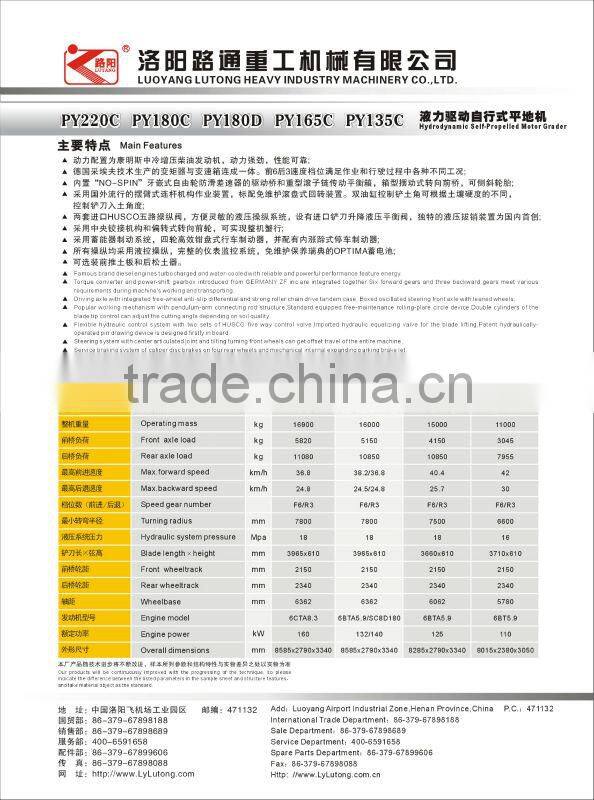

Main Technical Parameters
MODEL |
PY220C |
|
Operating mass |
kg |
16900 |
Front axle load |
kg |
5820 |
Rear axle load |
kg |
11080 |
Engine model |
6CTA8.3 |
|
Engine power |
KW |
160 |
Engine speed |
r/min |
2300 |
Overall dimensions |
mm |
8585x2790x3340 |
Overall length (with front blade& rear ripper) |
mm |
11000 |
Max. forward speed |
km/h |
36.8 |
Max. backward speed |
km/h |
24.8 |
Speed gear number |
F6/R3 |
|
Hydraulic system pressure |
Mpa |
18 |
Max. steering angle of front wheels |
° |
±45 |
Max. lean angle of front wheels |
° |
±15 |
Frame articulation angle |
° |
±25 |
Min. turning radius using articulation |
mm |
7800 |
Blade length × height |
mm |
3965x610 |
Front wheel track |
mm |
2150 |
Rear wheel track |
mm |
2340 |
Wheelbase |
mm |
6362 |
Maximum lift above ground |
mm |
410 |
Maximum depth of cutting |
mm |
535 |
Maximum blade position angle |
° |
90 |
Blade cutting angle |
° |
28—70 |
Cab |
Cabin with AC. |
|
Packing |
Nude Cargo |
