Specifications
220hp PY220C motor grader1.Powerful Cummins 6CTA8.3 engine;
2.HUSCO brand 5-way Control Valve;
3.Cabin with a/c.
China 220HP 17ton hydrodynamic self-propelled new motor grader (Cummins Engine)
1.Specifications
MODEL |
|
PY220C |
Operating mass |
kg |
16900 |
Front axle load |
kg |
5820 |
Rear axle load |
kg |
11080 |
Engine model |
|
6CTA8.3 |
Engine power |
KW |
160 |
Engine speed |
r/min |
2300 |
Overall dimensions |
mm |
8585×2790×3340 |
Overall length (with front blade& rear ripper) |
mm |
10800 |
Max. forward speed |
km/h |
36.8 |
Max. backward speed |
km/h |
24.8 |
Speed gear number |
|
F6/R3 |
Hydraulic system pressure |
Mpa |
18 |
Max. steering angle of front wheels |
° |
±45 |
Max. lean angle of front wheels |
° |
±15 |
Frame articulation angle |
° |
±25 |
Min. turning radius using articulation |
mm |
7800 |
Blade length × height |
mm |
3965×610 |
Front wheel track |
mm |
2150 |
Rear wheel track |
mm |
2340 |
Wheelbase |
mm |
6362 |
Maximum lift above ground |
mm |
410 |
Maximum depth of cutting |
mm |
535 |
Maximum blade position angle |
° |
90 |
Blade cutting angle |
° |
28—70 |
Engine |
|
Chinese Cummins |
Cab |
|
Cabin with AC. |
Packing |
|
Nude Cargo |
China 220HP 17ton hydrodynamic self-propelled new motor grader (Cummins Engine)
2. Advantage & Application
1) Chinese Cummins intercooled& turbocharged diesel engine
2) Integral torque converter and gearbox(Germany ZF technology)
3) Driving axle with built-in free-wheel anti-slip differential
4) Heavy-duty roller chains transmission balance box
5) Popular swing-arm connecting rod operating mechanism
6) Free-maintenance rolling-disc rotary device
7) Double cylinders control the balde cutting angle
8) Two sets of imported control valve (HUSCO Brand)
9) Imported hydraulic balancing valve for the blade lifting
10) Steering system:center articulated mechanism and tilting front wheels to achieve crab-style movement
11) Electro-hydraulic control: instrumentation monitoring & maintenance-free OPTIMA battery
China 220HP 17ton hydrodynamic self-propelled new motor grader (Cummins Engine)

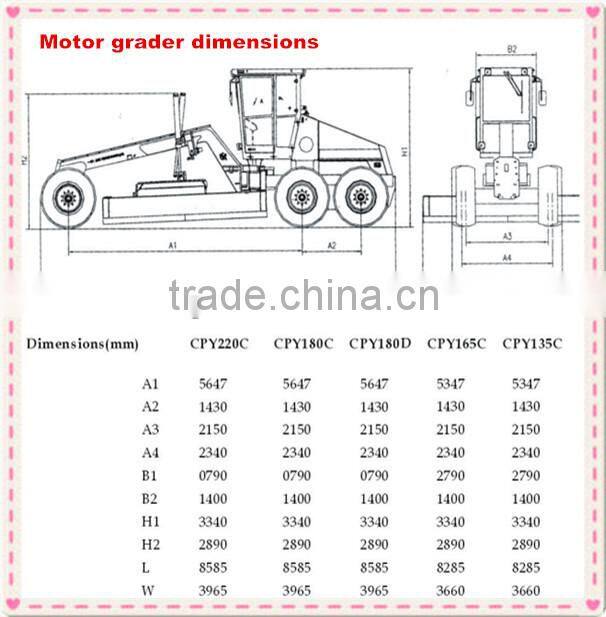

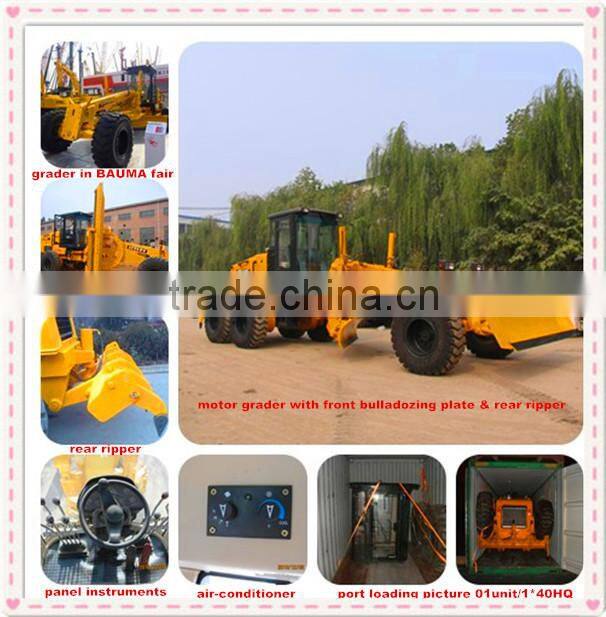

3.Dimensions and Images
