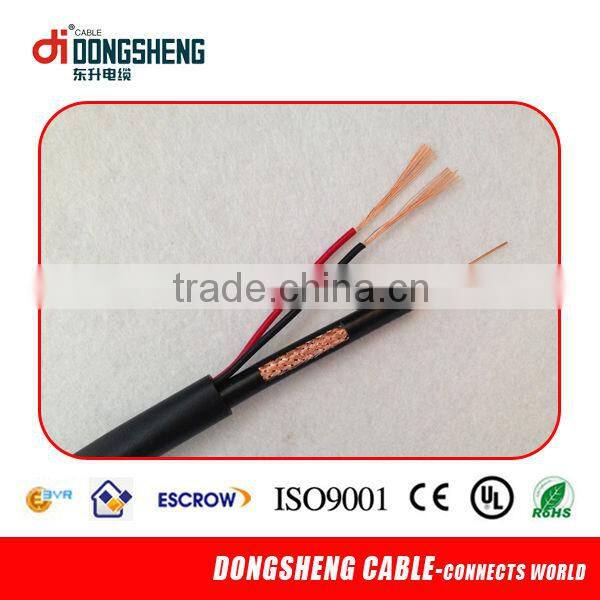

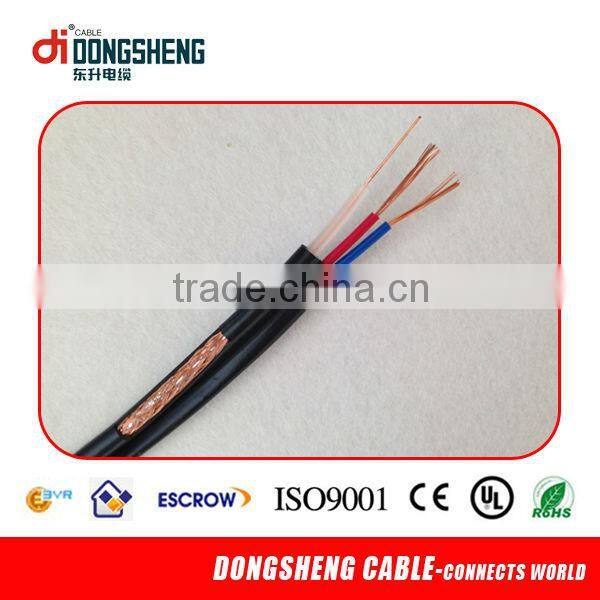

Commscope RG59 CCTV Cable
- Shanghai/Ningbo
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Dong Sheng | |
| Model Number | Commscope RG59 CCTV Cable | |||
| Number of Conductors | 1 |
Product Description
Commscope RG59 CCTV Cable
RG59 CCTV Cable
Belden RG59 Siamese Cable UL Listed,RG6-2C Camera Cable,CCTV Cable KX6-2C
Physical specification
Center Conductor: | 0.58+0.01mm CCS21%/ BC or 0.81mm,0.64mm, 7*0.2mmBC |
| Dielectric: | 3.7+0.05mm Solid PE |
| Bradi Coverage: | 35%-95% BC/CCA |
| Jacket: | 6.10+0.05mm PVC /PE |
2C Power wire:
0.37mmX7 CCA or BC+1.8 Black/red PVC or UTP Cat5e ,or 4 Core Telephone cable
Overall jacket: 6.0X3.5X5.5 PVC
2. rg59 2c coaxial cable electrical properties
| Impedance: | 75+3 Ohm |
| Capacitance: | 50+3pF/km |
| Velocity of Propagation: | 85% |
| Conductor resistance Max: | Inner:16.8 ohms/km Outer:26 ohms/km |
| Return Loss: | 20dB min (5-2150MHz)gbgfbbgfb |
Attenuation | [@68o F. (20o C.)] | |
| Frequency (MHz) | Maximum (dB/100 ft.) | Maximum (dB/100 m) |
| 5 | 0.46 | 1.5 |
| 50 | 1.31 | 4.3 |
| 100 | 1.80 | 5.9 |
| 200 | 2.56 | 8.4 |
| 400 | 3.66 | 12.0 |
| 800 | 5.34 | 17.5 |
| 862 | 5.58 | 18.3 |
| 950 | 5.86 | 19.2 |
| 1350 | 7.11 | 23.3 |
| 1750 | 8.24 | 27.0 |
| 2150 | 9.33 | 30.6 |
| 3000 | 11.22 | 36.8 |
Application
Used as a distribution cable for indoor CATV,CCTV systems and as a connection cable for satellite systems where lower attenuation required.
Packing 1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll Other lengths available according to client's request; 2) Inner packing: Wooden reel, plastic reel, and paper reel available. 3) Outer packing: Carton box, pull out box, pallet available. (Other packing available according to client's request. )
Cable Picture and Package
Factory Show
Certification
Testing Equipment
Exhibition
ther Cables:
1) Lan Cable / Network Cable UTP/ FTP /SFTP Cable Cat5e Cat6 Cat3
2) Telephone Cable,Telephone Drop Cable, PTT298 Cable , PTT299 Cable
3) Security Alarm Cable / Fire Alarm Cable
4) Optical Fiber Cable
5) Speaker Cable / Power Cable / Electrical Cable / Multi-Core Cable
6) Siamese CCTV Cable RG59+2C , KX6+2C , RG6+2C
7) Trunk Cable QR750 QR540 QR500 QR412
8) KoaxialKable CT100,CT165, KX6, KX8,17VATC,19VATC,SAT703,SAT602
9) 75 ohm Coaxial Cable RG6 RG59 RG7 RG11
10) 50 ohm Coaxial Cable RG174 RG58 RG8 RG213 RG214 RG223
11) 50ohm Cable LMR195 LMR200 LMR240 LMR300 LMR400 LMR500 LMR600
12) 75 ohm Coaxial Cable 3C-2V, 5C-2V, 4C-FB, 5C-FB
13) 50 ohm Coax Cable 3D-FB,4D-FB,5D-FB,7D-FB,8D-FB,10D-FB
14) Mini Coax Cable: RG591885A,8218 Cable,1.37mm,0.81mm ect
15) Cabo Coaxial RG6 RG59 RG11 QR500 RF4mm
16) Telecom Cable BT3002, PCM Cable, Multi-Core Coax Cable
17) Coaxial Cable Connector(BNC,RCA,Female, Male)
18) Indoor TV Antenna, Outdoor TV Antenna,Satellite Antenna
19) CATV Transimitter, CATV Amplifier,CATV Receiver
