Specification:
RG6 Tri Coaxial Cable-CATV/MATV/CCTV |
TYPE: |
RG6TSVM-35% or 95% |
||
Construction | ||||
Item |
Material |
Diameter(mm) |
||
Center Conductor |
Copper Clad Steel/BC |
1.02 |
||
Dielectric |
Foam PE |
4.57 |
||
1st Shield |
Bonded Aluminum Foil Copper Foil |
4.75 |
||
2nd Shield |
Aluminum Wire Braid CCA Wire Braid BC Wire Braid TC Wire Braid |
3×16×0.12 40% 4×16×0.16 60% 6×16×0.12 75% 7×16×0.16 95% 10×16×0.12 95% |
||
3rd Shield |
Aluminum Foil or
|
AL Foil |
||
|
Jacket
|
PVC |
7.06 ROHS,UV,UL,LSZH |
||
Messenger |
Galvanized Steel |
1.30 |
||
Electrical Charateristics |
|
|
||
Impedance(Ω) |
75±3 |
|||
Capacitance(pF/m) |
52±2 |
|||
Velocity of Propagation(%) |
85.0 |
|||
Shielding Effectiveness |
|
|||
5-1000MHZ(dB) |
≥90% |
|||
Return Loss |
|
|||
5-1000MHZ(dB) |
≥22 |
|||
1000-2000MHZ(dB) |
≥20 |
|||
Attenuation @68°F.(20 ºC )
@Frequency(Mhz) |
Max Attenuation(dB/100ft) |
Max Attenuation(dB/100m) |
||
5 |
0.58 |
1.90 |
||
55 |
1.60 |
5.25 |
||
187 |
2.85 |
9.35 |
||
211 |
3.05 |
10.00 |
||
400 |
4.15 |
13.61 |
||
500 |
4.66 |
15.29 |
||
750 |
5.65 |
18.54 |
||
865 |
6.10 |
20.01 |
||
1000 |
6.55 |
21.49 |
||
1500 |
8.20 |
26.80 |
||
1800 |
8.80 |
28.90 |
||
2200 |
9.80 |
32.20 |
||
3000 |
11.50 |
37.60 | ||

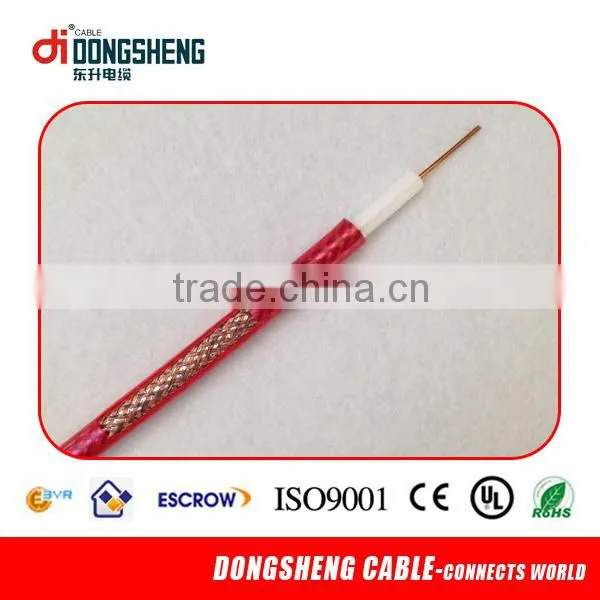

RG6 Coaxial Cable RG6 Products Photos and Package
1) Packing Lengths:100/roll,200m/roll,300m/roll,305m/roll, 500m woden reel, 1000m wooden reel
2) Inner Packing:Wooden reel,plastic reel,and paper reel
3) Outer Packing:Carton box,pull out box,pallet available
4) Other packing available according to clients' request
If you have any interest in our products,
Contact us any time,We'll answer you in the first time.
24 Hours Available
