US$ 0.1 - 100 MOQ: 30 Kilometers
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Dong Sheng
Model Number:
Belden Mini Coaxial Cable BT3002
Contact Supplier Request Quote Chat Now
Hangzhou Lin'an Dongsheng Cable Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Dong Sheng
Model Number Belden Mini Coaxial Cable BT3002
Type Coaxial
Number of Conductors 1

Specifications

1) USA Market Belden Mini Coaxial Cable BT3002
2) Since 1991 year
3) Application cctv sysmten
4) ISO9001/CE/ROHS

USA Market  Belden Mini Coaxial Cable BT3002



Mini Coaxial Cable BT3002



Product specification:

Belden 8218 Mini Coaxial Cable

Stranding: 7x35 Conductor Diameter

Conductor Material: Bare Copper Covered Steel

Insulation Material: Polyethylene

Outer Shield Type: Braid

Outer Shield Material: Tinned Copper

Outer Shield Coverage: 93 %

Outer Jacket Material: PVC



Electrical Charateristics

@Frequency(Mhz)

Max Attenuation(dB/100ft)

50

4.2

100

                        5.7

200

8.3

400

12.1

700

16.5

900

19.0

1000

20.0







Type

Imp.Ohms

Inner
Conductor(mm)

Dielectric
(mm)

Shield

Outer Sheath

O/D mm

RG174

50

7/0.16/BC

1.52 PE

TC

PVC/LSZH

2.80



RG174 mini coaxial cable ,Mini Coaxial Cable RG59 1885A , Sub-Miniature 59/U(1865A)

Miniature Coax Cable
Mini RG59(1855A)
Sub-Miniature 59/U(1865A)
RG174 mini-coax
RG178 mini-coax
RG179 mini-coax
RG188 A/U
0.81 mm Mini-Coax
1.13 mm Miniature Coax
1.32 mm Miniature Coax
1.37 mm Miniature Coax
1.48 mm Miniature Coax



Miniature Coax Cable » Mini RG59(1855A)
USA Market Belden Mini Coaxial Cable BT3002
Mini RG59(1855A) is the HDMI(High Definition Multimedia Interface) cable. HDMI cable to transmit through a high-definition, all-digital audio and video content. HDMI is the future direction of HDTV (high definition television).
• Mini RG59 have 23 AWG solid bare copper conductors, Foamed HDPE insulation, 100% bonded foil shield and 95% tinned copper braid shield, PVC jacket. • Return Loss: 5MHz to 1600MHz>23 dB ; 1601MHz to 4500MHz >21 dB.  • Out jacket following colors: brown, red, orange, yellow, blue, violet, gray, white, black, aqua, rose and green.
CCS:Copper clad-steelBC:Bare Copper
CCA:Copper clad-AluminiumSPCCS:Silver-plated Copper-covered Steel
TC:Tinned CopperSPC:Silver plate-copper
AL/P:Aluminium polypropyleneFPE:Foamed Polyethylene
PE:PolyethylenePTFE:Poly Tetra Fluoro Ethylene
FEP:Fluorinated Ethylene PropyleneLSF:Low Smoke and Fume
LSZH:Low Smoke Zero HalogenPVC:Polyvinyl Chloride

Type

Imp.Ohms

Inner              Conductor(mm)

Dielectric             (mm)

Shield

Outer Sheath

O/D mm

MiniRG59

75

1/0.58  BC

2.60   FPE

Boneded AL/P+95%TC

PVC

4.10

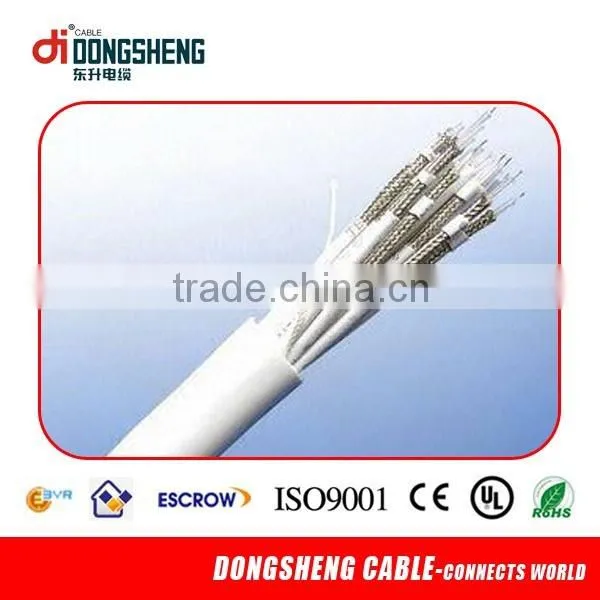

MiniRG59×3

75

1/0.58  BC

2.60   FPE

Boneded AL/P+95%TC

PVC

11.20

MiniRG59×4

75

1/0.58  BC

2.60   FPE

Boneded AL/P+95%TC

PVC

12.22

MiniRG59×5

75

   1/0.5   BC

2.60   FPE

Boneded AL/P+95%TC

PVC

13.80

MiniRG59×8

75

1/0.58   BC

2.60   FPE

Boneded AL/P+95%TC

PVC

16.20

MiniRG59×10

75

1/0.58   BC

2.60   FPE

Boneded AL/P+95%TC

PVC

20.22

MiniRG59×12

75

1/0.58  BC

2.60   FPE

Boneded AL/P+95%TC

PVC

20.96

MiniRG59×16

75

1/0.58  BC

2.60   FPE

Boneded AL/P+95%TC

PVC

23.27

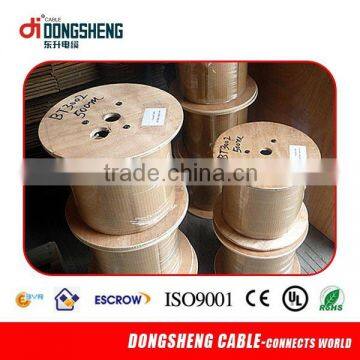

Cable Picture and Package

USA Market Belden Mini Coaxial Cable BT3002USA Market Belden Mini Coaxial Cable BT3002

USA Market Belden Mini Coaxial Cable BT3002USA Market Belden Mini Coaxial Cable BT3002

 USA Market Belden Mini Coaxial Cable BT3002USA Market Belden Mini Coaxial Cable BT3002USA Market Belden Mini Coaxial Cable BT3002USA Market Belden Mini Coaxial Cable BT3002

 USA Market Belden Mini Coaxial Cable BT3002

USA Market Belden Mini Coaxial Cable BT3002

Certificate:

 USA Market Belden Mini Coaxial Cable BT3002



Factory and Production line

USA Market Belden Mini Coaxial Cable BT3002



Exhibition Trade Show

USA Market Belden Mini Coaxial Cable BT3002



Other Cables:



1) Lan Cable / Network Cable UTP/ FTP /SFTP Cable Cat5e Cat6 Cat3

2) Telephone Cable,Telephone Drop Cable, PTT298 Cable , PTT299 Cable

3) Security Alarm Cable, Fire Alarm Cable

4) Optical Fiber Cable(GYXTC8S, GYXTC8S, ADSS, FTHH ect.)

5) Speaker Cable,Power Cable, Electrical Cable, Multi-Core Cable

6) Siamese CCTV Cable RG59+2C , KX6+2C , RG6+2C

7) Trunk Cable QR750 QR540 QR500 QR412

8) KoaxialKable CT100,CT165, KX6, KX8,17VATC,19VATC,SAT703,SAT602

9) 75 ohm Coaxial Cable RG6 RG59 RG7 RG11

10) 50 ohm Coaxial Cable RG174 RG58 RG8 RG213 RG214 RG223

11) 50ohm Cable LMR195 LMR200 LMR240 LMR300 LMR400 LMR500 LMR600

12) 75 ohm Coaxial Cable 3C-2V, 5C-2V, 4C-FB, 5C-FB

13) 50 ohm Coax Cable 3D-FB,4D-FB,5D-FB,7D-FB,8D-FB,10D-FB

14) Mini Coax Cable: RG591885A,8218 Cable,1.37mm,0.81mm ect

15) Cabo Coaxial RG6 RG59 RG11 QR500 RF4mm RG174 RG58 RG214 LMR400

16) Telecom Cable BT3002, PCM Cable, Multi-Core Coax Cable

17) Coaxial Cable Connector(BNC,RCA,Female, Male)

18) Indoor TV Antenna, Outdoor TV Antenna
