1) 120 ohm telecom pcm cable 8 Pairs2) Since 1991 year
3) For telecom system
4) ISO9001/CE/ROHS
120 ohm Telecom PCM Cable 8 Pair
Telecom PCM Cable 8 Pair
Telecom PCM Cable 8 Pairs , Telecommunicaion Cable PCM 16P ,PCM 32P
lid BC conductor. 2.PE insulation . 3.PET tape and AL foil shield on each pair. 4.PVC jacket .
More related products: cable, cables, communication cable, jumper wire, network cable, lan cable, data cable ,data transmission cable, Hookup wire , jumper wire, PCM cable, E1 cable, screen cable, shield cable, twist pair cable,
telecommunication cable .
Specification:
1)8P x 24/26AWG PCM cable
8x{1Px0.5mm TC Conductor+1.2mm Solid PE Insulation+Polyester Tap Wrapped+0.5mm TC Drain Wire+Al Foil Wrapped}+Polyester Wrapped+Rip Cord+10.0mm PVC Jacket
2)16P x 24/26AWG PCM cable
16Px0.5mm TC Conductor+0.98mm Solid PE Insulation+Polyester Tap Wrapped+0.5mm TC Drain Wire+Al Foil Wrapped+Rip Cord+11.0mm PVC Jacket
3)32P x 24/26AWG PCM cable
4x{8Px0.5mm TC Conductor+0.98mm Solid PE Insulation}+Polyester Tap Wrapped+0.5mm TC Drain Wire+Al Foil Wrapped+Rip Cord+14.0mm PVC Jacket
Parameters |
Minimum Requirement |
1. Conductor |
|
- Material |
tinned copper |
- Diameter (mm) |
0.50 ± .005 |
2 Insulation |
|
- Material |
polyethylene |
2.1 Twisting |
twisted |
2.2 Color |
White-brown |
3. Jacket |
|
- Material |
Polyvinyl chloride |
- Outside diameter (mm) |
2.70 nom |
4. Shielding |
Polyester-aluminized foil with 0.50 mm tin plated drain wire |
5. ELECTRICAL TEST |
|
|
5.1 DC Resistance @ 20° C (W/km) |
< 94
|
|
5.2 Mutual capacitance @ 20° C (nF/km) |
< 100 |
|
5.3 Insulation resistance (GW/km) |
>500 |
5.4 Dielectric strength (Vdc) |
>1500 |
|
5.5 Characteristic Impedance (W) |
|
at 1 MHz |
120 ± 12 |
5.6 Attenuation (dB/km @ 1 MHz) |
< 65 |
Application:
Used as a distribution cable for indoor CATV,CCTV systems and as a connection cable
for satellite systems where lower attenuation required

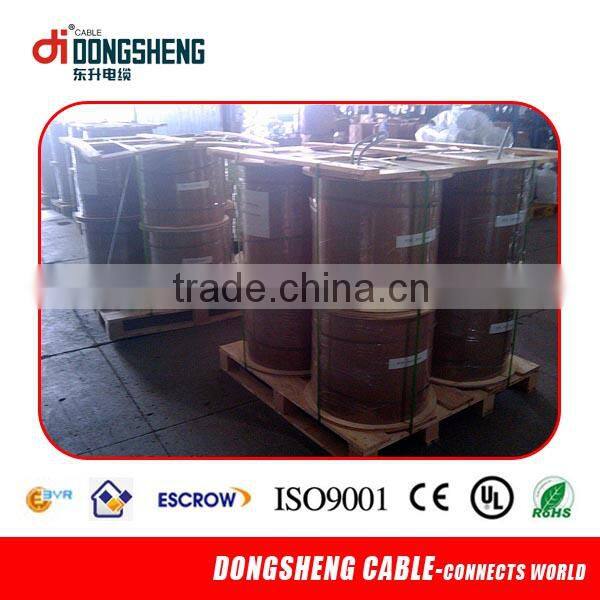

Packing:
1) Packing Lengths:100/roll,200m/roll,300m/roll
2) Inner Packing:Wooden reel,plastic reel,and paper reel
3) Outer Packing:Carton box,pull out box,pallet available
4) Other packing available according to clients’request
Certificate:
We have pass the IS09001, CCC, Rohs, CE, and UL, in order to meet your market requirement.
Factory and Production line
Exhibition Trade Show
We attend to 3-5 Fairs in Hongkong, Guangzhou, and aboard, to meet with the old customer,
also show our company and products to the future new customers.
