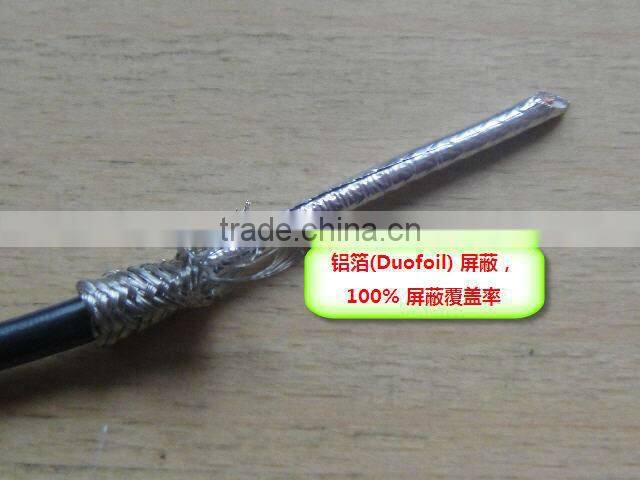

Help CenterTelecom PCM Cable 8Pairs
Related Products
-
Telecom Cable LadderUS$ 0.8 - 2MOQ: 10 Kilometers -
Hdpe Ducts for Telecom CableUS$ 0.8 - 2MOQ: 10 Kilometers
-
Telecommunication Cable PCM CableUS$ 0.8 - 2MOQ: 20 Kilometers
-
120Ohm Telecom 8P,16P,32P PCM CABLEUS$ 0.8 - 2MOQ: 20 Kilometers
-
120 Ohm PCM Cable (Overall Shield)US$ 0.8 - 2MOQ: 20 Kilometers
Specifications
ecom pcm cable 8Pairs2.The best cost-effective
3. 21 years cable experience
4. ISO9001/CE/ROHS/U

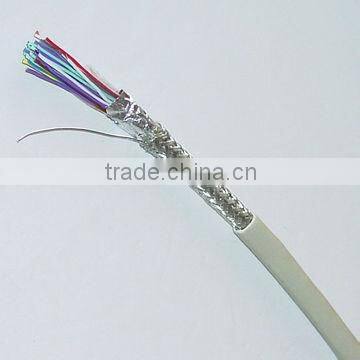

Telecom PCM Cable 8Pairs , Telecommunicaion Cable PCM 16P ,PCM 32P
lid BC conductor. 2.PE insulation . 3.PET tape and AL foil shield on each pair. 4.PVC jacket .
More related products: cable, cables, communication cable, jumper wire, network cable, lan cable, data cable ,data transmission cable, Hookup wire , jumper wire, PCM cable, E1 cable, screen cable, shield cable, twist pair cable,
telecommunication cable .
Specification:
1)8P x 24/26AWG PCM cable
8x{1Px0.5mm TC Conductor+1.2mm Solid PE Insulation+Polyester Tap Wrapped+0.5mm TC Drain Wire+Al Foil Wrapped}+Polyester Wrapped+Rip Cord+10.0mm PVC Jacket
2)16P x 24/26AWG PCM cable
16Px0.5mm TC Conductor+0.98mm Solid PE Insulation+Polyester Tap Wrapped+0.5mm TC Drain Wire+Al Foil Wrapped+Rip Cord+11.0mm PVC Jacket
3)32P x 24/26AWG PCM cable
4x{8Px0.5mm TC Conductor+0.98mm Solid PE Insulation}+Polyester Tap Wrapped+0.5mm TC Drain Wire+Al Foil Wrapped+Rip Cord+14.0mm PVC Jacket
Parameters | Minimum Requirement |
1. Conductor | |
- Material | tinned copper |
- Diameter (mm) | 0.50 ± .005 |
2 Insulation | |
- Material | polyethylene |
2.1 Twisting | twisted |
2.2 Color | White-brown |
3. Jacket | |
- Material | Polyvinyl chloride |
- Outside diameter (mm) | 2.70 nom |
4. Shielding | Polyester-aluminized foil with 0.50 mm tin plated drain wire |
5. ELECTRICAL TEST | |
5.1 DC Resistance @ 20° C (W/km) | < 94
|
5.2 Mutual capacitance @ 20° C (nF/km) | < 100 |
5.3 Insulation resistance (GW/km) | >500 |
5.4 Dielectric strength (Vdc) | >1500 |
5.5 Characteristic Impedance (W) | |
at 1 MHz | 120 ± 12 |
5.6 Attenuation (dB/km @ 1 MHz) | < 65 |
Application:
Used as a distribution cable for indoor CATV,CCTV systems and as a connection cable
for satellite systems where lower attenuation required
Packing:
1) Packing Lengths:100/roll,200m/roll,300m/roll
2) Inner Packing:Wooden reel,plastic reel,and paper reel
3) Outer Packing:Carton box,pull out box,pallet available
4) Other packing available according to clients’request
Certificate:
We have pass the IS09001, CCC, Rohs, CE, and UL, in order to meet your market requirement.
Factory and Production line
We use the bue advance production equipment for LAN CABLE,TELEPHONE CABLE, and COAXIAL CABLE, ensure the high performance in your project and system.
Exhibition Trade Show
We attend to 3-5 Fairs in Hongkong, Guangzhou, and aboard, to meet with the old customer, also show our company and products to the future new customers.
More types of Cables we do
We also produce these cables for more than 20 years, RG6,RG11,RG59 COAXIAL CABLE, TELEPHONE CABLE, ALARM CABLE.MICROPHONE CABLE etc.
Hangzhou Lin`an Dongsheng Cable Co.,Ltd, was established in 1991,located at the foot of the Tianmu Mountain in Lin`an city, is 28km away from Hangzhou City, which is close to Shanghai port and Ningbo port with facilitated transportation
As a professional cable manufacturer in china,We specialized in producing of Coaxial Cable RG59, RG6,RG11 CATV and CCTV, Lan Cable Cat3,Cat5e,CAT6 UTP/FTP /SFTP for Indoor and Outdoor, Telephone Cable,Combined Cable,and cable accessories etc. We are covering 1,6000 square meters, including standard workshops and warehouse,to ensure your goods in goods production condition.
Meanwhile,Our company has obtained ISO9001,also our products has passed CE,RoHS ,UL certificate,which is Promise high quality cable .
Dongsheng Cable products have been exported to Southeast Asia ,Middle East, European,South America,USA and gain good reputation.We will meet client requirements
