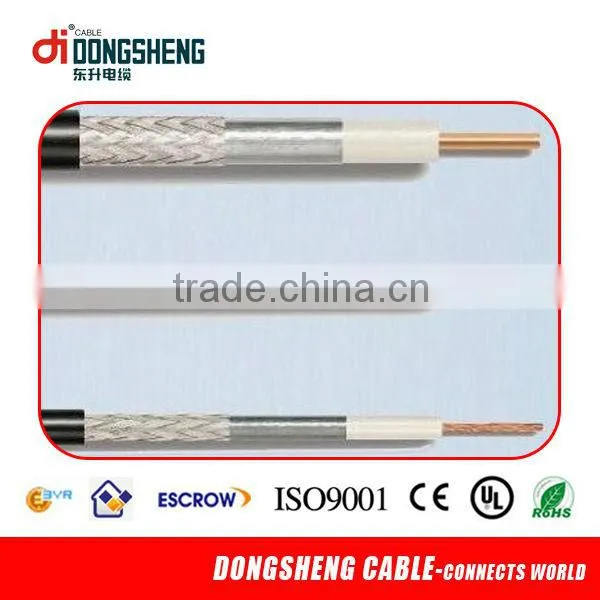

50Ohm RF Coaxial Cable LMR400
Specifications
1. High quality with reasonable price.
2. IOS9001, RoHs.
3. OEM is OK.
Detailed Information
Packaging & Delivery

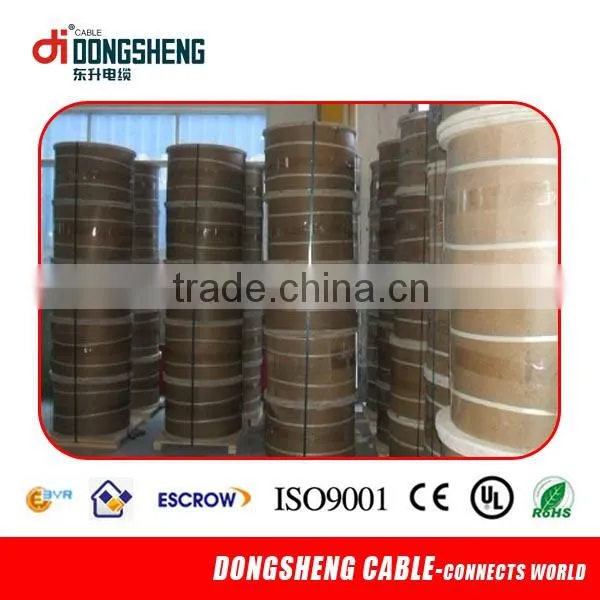

Packaging Detail: 500m/wooden reel 1000m/wooden reel.
Delivery Detail: 10-30 days after deposit.
Physical Dimensions | ||
Component |
Diameter |
Material |
Conductor |
Material |
Bare copper |
Nom. Dia. |
2.74mm |
|
Dielectric |
Material |
Foam PE |
Nom. Dia. |
7.24mm |
|
Shield |
Material |
Bonded Al foil +0.12*168 Al braiding |
Coverage |
95% |
|
Jacket |
Material |
PVC |
Nom. Thick. |
1.09mm |
|
Nom. Dia. |
10.02mm |
|
Electrical Performance | |
Nominal Impedance(Ohm) |
50 |
Nominal capacitance(pF/m) |
84 |
Velocity of Propagation (%) |
85 |
Cutoff Frequency(GHz) |
16.2 |
Screening Effectiveness |
>90 |
Sparker Test (VAC) |
4000 |
Attenuation | ||
Frequency(MHz) |
Maximum(dB/100m) |
Maximum(dB/100ft) |
150 |
4.92 |
1.50 |
300 |
7.20 |
2.19 |
450 |
8.86 |
2.70 |
960 |
13.22 |
4.03 |
1500 |
16.73 |
5.10 |
2000 |
19.68 |
6.00 |
2500 |
22.31 |
6.80 |
Application
axial cable for CATV, CCTV systems.
2.Plus F as connection cable
3.For satellite systems.
Transportation
1. All available shipping ways could be applied, by courier, air or sea.
2. Appointed shipping company or our own forwarders all could be used in shipment .
3. Full -way tracking the cargos for you before the goods arrive .

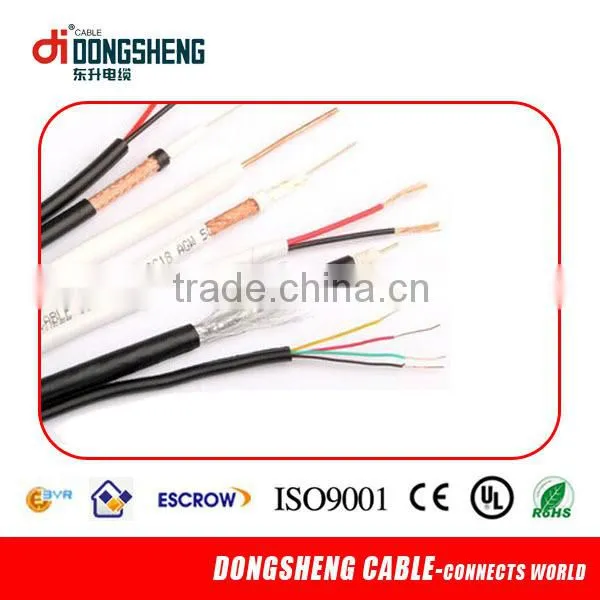

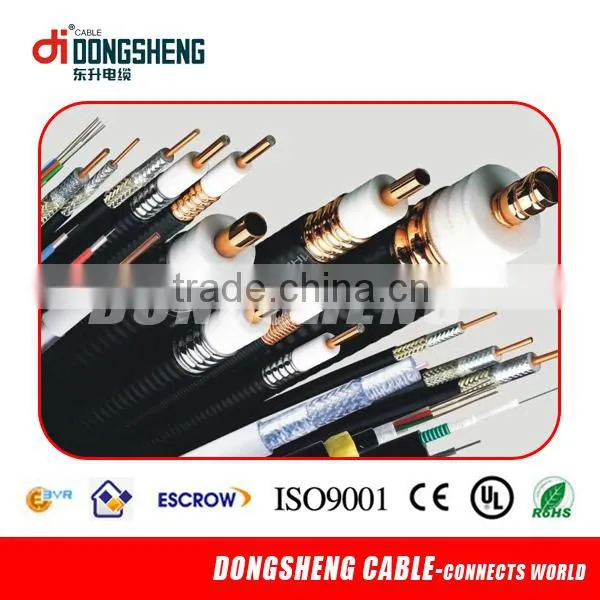

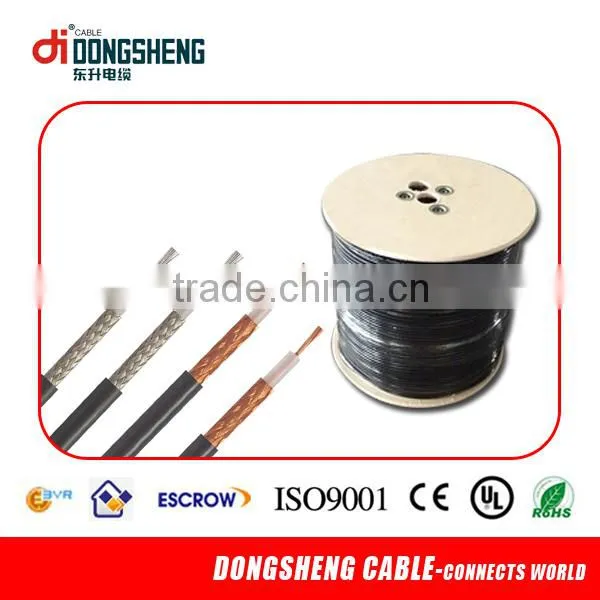

Products Photos:
24 hours Contact information:
Contact Pesron: Mr Nathan Zhou
Skype: nathan110211
Cell phone: 86-13758228194
