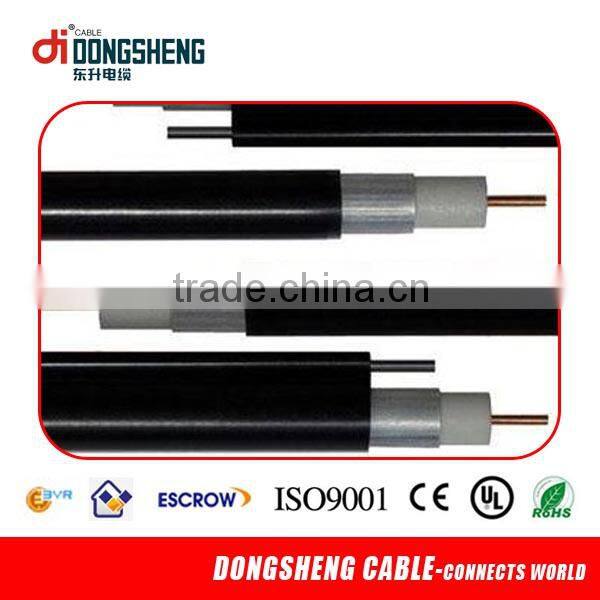

75 ohm rg500 trunk coaxial cable
75 ohm rg500 trunk coaxial cable
75 ohm p3.500 trunk coaxial cable
Belden QR500 Cable Coaxial, Commscope RG500 Coaxial Cable,Trunk Cable QR500
Product specification:
P3.500 Trunk Cable |
TYPE |
P3.500 Cabo Coaxial |
||
Construction | ||||
Item |
Material |
Diameter(mm) |
||
Center Conductor |
Copper Clad Aluminum |
2.77 |
||
Dielectric |
Foam PE |
11.43 |
||
Outer Shield |
Solid Aluminum Tube |
0.61thickness |
||
Jacket |
PE |
14.22 |
||
Electrical Charateristics |
||||
Impedance(Ω) |
75±3 |
|||
Capacitance(pF/m) |
50±3 |
|||
Velocity of Propagation(%) |
87.0 |
|||
DC Loop Resistance(Ω/km) |
5.64 |
|||
Maximum Pulling Tension(kgf) |
136 |
|||
Return Loss |
||||
5-1000MHZ(dB) |
≥22 |
|||
@Frequency(Mhz) |
Max Attenuation(dB/100m) |
5 |
0.52 |
55 |
1.77 |
83 |
2.17 |
211 |
3.58 |
250 |
3.94 |
300 |
4.30 |
350 |
4.69 |
400 |
5.02 |
550 |
5.97 |
600 |
6.27 |
750 |
7.09 |
865 |
7.68 |
1000 |
8.27 |
Packaging: 1) 500m/wooden reel 2)750m/wooden reel 3)1000m/wooden reel
Applications
(1) CATV-community antenna television.
(2) CCTV-closed-circuit television.
(3) DBS-direct broadcasting satellite.
P3 500 75 ohms De Cabo Coaxial
1) 75 ohm cable coaxial rg59
0.81mm CCS /CU+3.66mm FPE+Bonded Al Foil+64*0.12mm Al +6.0mmPVC
2) 75 ohm cable coaxial rg6
1.02mmCCS /CU+4.57mmFPE+Bonded Al Foil+64*0.16mmAl+6.9mmPVC+1.3 Messenger steel
3) 75 ohm cable coaxial rg11
1.63mmCCS/ CU+7.11mmFPE+Bonded Al Foil+128*0.15mmAl+10.03mmPVC+1.83mm Messenger Steel
Packing: 100m/Roll, 200m/Roll, 305m/Wooden drum, 500m/wooden drum
Cable Picture and Package
Factory Show
Certification
Testing Equipment
Exhibition
Other Cables:
1) Lan Cable / Network Cable Cat5e Cat6 Cat3
2) 75 ohm Coaxial Cable RG6 RG59 RG7 RG11 QR540 QR500
3) 50 ohm Coaxial Cable RG174 RG58 RG8 RG213 LMR400
4) Siamese CCTV Cable RG59+2C , KX6+2C , RG6+2C
5) 50 ohm RF Feeder Cable 1/4”S, 3/8”S, 1/2”S, 1/2”, 7/8”, 1-1/4”, 1-5/8”.
6) Mini Coax Cable: RG59,BT3002
7) Telephone Cable 1Pair,2 Pair,4 Pair
8) Security Alarm Cable, Fire Alarm Cable,Speaker Cable
9) Optical Fiber Cable (GYXTY, GYXTW, ADSS, FTTH etc.)
Coaxial Cable Connector,TV Antenna,CATV Transimitter, Amplifier, Receiver
