Disesl Forklift and Pallet Hand Truck Forklift

Disesl Forklift and Pallet Hand Truck Forklift thumbnail-1
Disesl Forklift and Pallet Hand Truck Forklift photo-1
US$ 8,000 - 250,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
HYDER
Contact Supplier Request Quote Chat Now
Shanghai Hyder Industry Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shanghai, China
Brand Name HYDER
Model Number FD30
Type Powered Pallet Truck
Power Souce Diesel Engine
Rated Loading Capacity 3ton
Max. Lifting Height 6000MM
Min. Lifting Height 3000MM
Fork Length 1070MM
Fork Width 125MM
Overall Dimensions 2705*1225*2075MM
Certification CE,ISO9001
After-sales Service Provided Engineers available to service machinery overseas

CE high quality competitive price diesel counter balanced forklift truck



Product Advantages:

1. Reasonable Structure Layout; Simple Maintenance,high power DEUTZ/Xinchai/ISUZU/Yanmar engine

2. Streamlined Design, fluency, harmony and elegance in shape

3. The short turning radius and Load Sensing Hydraulic Power Steering System

4. The design with the man-machine engineering principle reduces operator fatigue and stress

5. No harmful gas released  and is nice for the environment protection and energy saving

6. Scientific ergonomic designs ensure the comfort of driving,advanced technique with good after-sale service



Using TCM technology, Diesel/Gasoline/LPG engine are optional
- Capacity up to 1.5-25tons
- Spacious room and wide view for the operator
- Strong steel mast for large lifting capacity
- Maximum lifting height up to 6 meters
- High power and efficiency brand-name engine
- Adjustable steering wheel and F/R lever
- Optional closed compartment design for special customer needs
- Optional A/C and heating for operator comfort in any working environment



Product Parameter:

Manufacturer     HYDER
Model   Power shift T/M FD30T
Manual shift T/M FD30C
Load capacity   kg 3000
Load center   mm 500
Power unit Diesel/gasoline/electric   Diesel
Tire type Front/rear   Pneumatic
Wheel Front/rear   2/2
Max. lifting height   mm 3000
Free lift   mm 150
Fork size L*W*T mm 1070*125*45
Tilt range Mast forward/backward deg 6/12
Overall length(without fork)   mm 2705
Total width   mm 1225
Mast height (fork lowering)   mm 2075
Overall height fork raised With backrest mm 4250
Height to head guard   mm 2140
Turning raduis(outside)   mm 2445
Speed Max Travelling     full/no load km/h 18/19.5
Lifting             full/no load mm/s 450/500
Lowering         full/no load mm/s 450/450
Max.drawbar pull Power shift T/M   full/no load kg 1500/1000
Manual shift T/M   full/no load kg 1550/1000
Gradeability at 1.6km/h Power shift T/M   full/no load % 18/20
Manual shift T/M full/no load % 18/20
Truck weight   kg 4380
Tires Number front/rear 2/2
Model front axle 28x9-15-12PR
rear axle 6.50-10-10PR
Ground clearence At lowest point(mast) mm 120
Frame mm 135
Brake Service brake   Hydraulic-foot pedal
Parking brake   Mechanical-hand lever
Battery Voltage/capacity V/AH 12/80
Engine Model   ISUZU C240
Rated power PS(kw/rpm) 34.3/2500
Rated torque kg-m   max.(N.m) 137/1800
Number of cylinders   4
Emission L 2.369
Fuel tank capacity   L 70
Transmission Speed forward/backward Power shift T/M 1-1 power shift T/M
Manual shift T/M 2-2 power shift T/M
Operating pressure Hydraulic system pressure kg/cm² 180

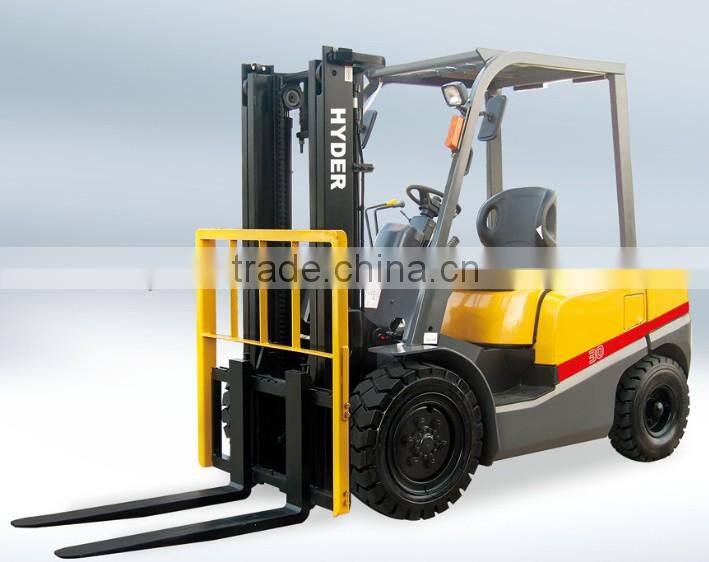

Product Picture:



 disesl forklift and pallet hand truck forklift



Detail View:

disesl forklift and pallet hand truck forklift



Product Features:



disesl forklift and pallet hand truck forklift

Attachment:



Our Factory:

 disesl forklift and pallet hand truck forklift





Options:

As a professional manufacturer of forklift, we also can offer you customized service,

the following items are optional:

Tires: Pneumatic and Solid tire

Color: Yellow,red,orange and white for your options

Engine: DEUTZ/Xinchai/Yanmar/ISUZU engine are optional

Mast: 2 stage mast,2-stage full free lift mast,3-stage full free lift mast

Transmission: Mechanical and Hydraulic transmission for options

Types:1.5ton-25ton diesel forklift,2ton-4ton gasoline/LPG forklift and 1ton-4ton electric forklift are available

Attachment: Side shifter,rotator,ejector,fork positioner,paper roll clamp,soft clamp,barrel clamp and so on





For the details of customized configurations and options, please contact with us.

disesl forklift and pallet hand truck forklift
