Home > Products > Diesel Forklift > disesl forklift all terrain forklift truck
disesl forklift all terrain forklift truck
- 500 Unit / Units per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Place of Origin: | Shanghai, China | Brand Name: | HYDER |
Model Number: | FD30 | Type: | Powered Pallet Truck | Power Souce: | Diesel Engine |
Rated Loading Capacity: | 3ton | Max. Lifting Height: | 6000MM | Min. Lifting Height: | 3000MM |
Fork Length: | 1070MM | Fork Width: | 125MM | Overall Dimensions: | 2705*1225*2075MM |
Certification: | CE,ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Exporting seaworthy standard carton
Product Description
CE high quality competitive price diesel counter balanced forklift truck
Product Advantages:
1. Reasonable Structure Layout; Simple Maintenance,high power DEUTZ/Xinchai/ISUZU/Yanmar engine
2. Streamlined Design, fluency, harmony and elegance in shape
3. The short turning radius and Load Sensing Hydraulic Power Steering System
4. The design with the man-machine engineering principle reduces operator fatigue and stress
5. No harmful gas released and is nice for the environment protection and energy saving
6. Scientific ergonomic designs ensure the comfort of driving,advanced technique with good after-sale service
Using TCM technology, Diesel/Gasoline/LPG engine are optional
- Capacity up to 1.5-25tons
- Spacious room and wide view for the operator
- Strong steel mast for large lifting capacity
- Maximum lifting height up to 6 meters
- High power and efficiency brand-name engine
- Adjustable steering wheel and F/R lever
- Optional closed compartment design for special customer needs
- Optional A/C and heating for operator comfort in any working environment
Product Parameter:
Manufacturer | HYDER | ||
Model | Power shift T/M | FD30T | |
Manual shift T/M | FD30C | ||
Load capacity | kg | 3000 | |
Load center | mm | 500 | |
Power unit | Diesel/gasoline/electric | Diesel | |
Tire type | Front/rear | Pneumatic | |
Wheel | Front/rear | 2/2 | |
Max. lifting height | mm | 3000 | |
Free lift | mm | 150 | |
Fork size | L*W*T | mm | 1070*125*45 |
Tilt range | Mast forward/backward | deg | 6/12 |
Overall length(without fork) | mm | 2705 | |
Total width | mm | 1225 | |
Mast height (fork lowering) | mm | 2075 | |
Overall height fork raised | With backrest | mm | 4250 |
Height to head guard | mm | 2140 | |
Turning raduis(outside) | mm | 2445 | |
Speed | Max Travelling full/no load | km/h | 18/19.5 |
Lifting full/no load | mm/s | 450/500 | |
Lowering full/no load | mm/s | 450/450 | |
Max.drawbar pull | Power shift T/M full/no load | kg | 1500/1000 |
Manual shift T/M full/no load | kg | 1550/1000 | |
Gradeability at 1.6km/h | Power shift T/M full/no load | % | 18/20 |
Manual shift T/M full/no load | % | 18/20 | |
Truck weight | kg | 4380 | |
Tires | Number | front/rear | 2/2 |
Model | front axle | 28x9-15-12PR | |
rear axle | 6.50-10-10PR | ||
Ground clearence | At lowest point(mast) | mm | 120 |
Frame | mm | 135 | |
Brake | Service brake | Hydraulic-foot pedal | |
Parking brake | Mechanical-hand lever | ||
Battery | Voltage/capacity | V/AH | 12/80 |
Engine | Model | ISUZU C240 | |
Rated power | PS(kw/rpm) | 34.3/2500 | |
Rated torque | kg-m max.(N.m) | 137/1800 | |
Number of cylinders | 4 | ||
Emission | L | 2.369 | |
Fuel tank capacity | L | 70 | |
Transmission | Speed forward/backward | Power shift T/M | 1-1 power shift T/M |
Manual shift T/M | 2-2 power shift T/M | ||
Operating pressure | Hydraulic system pressure | kg/cm² | 180 |

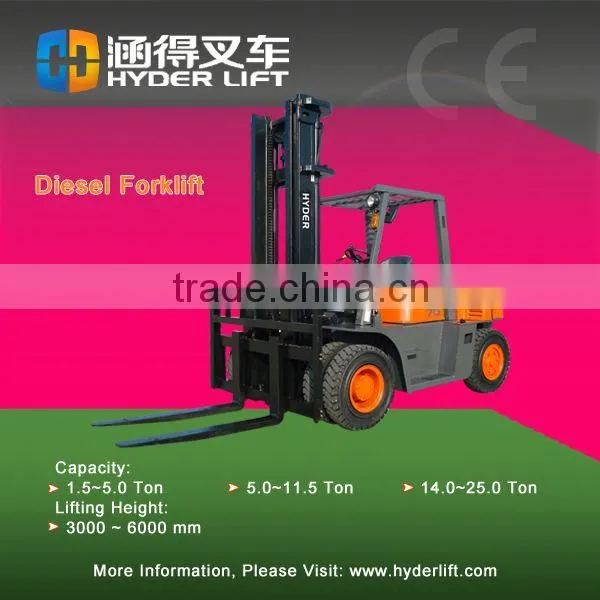

Product Picture:
Detail View:
Product Features:
Attachment:
Our Factory:
Options:
As a professional manufacturer of forklift, we also can offer you customized service,
the following items are optional:
Tires: Pneumatic and Solid tire
Color: Yellow,red,orange and white for your options
Engine: DEUTZ/Xinchai/Yanmar/ISUZU engine are optional
Mast: 2 stage mast,2-stage full free lift mast,3-stage full free lift mast
Transmission: Mechanical and Hydraulic transmission for options
Types:1.5ton-25ton diesel forklift,2ton-4ton gasoline/LPG forklift and 1ton-4ton electric forklift are available
Attachment: Side shifter,rotator,ejector,fork positioner,paper roll clamp,soft clamp,barrel clamp and so on
For the details of customized configurations and options, please contact with us.
