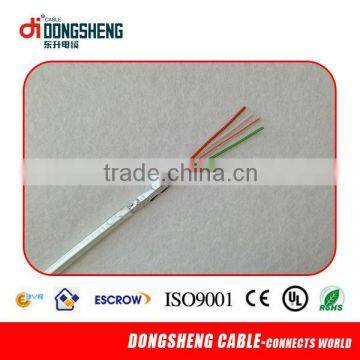

Cat3 Jumper Telephone Cable Fault Locator
Specifications:
1)1 Pair Cat3 Telephone Cable
1Px24AWG BC/CCA Conductor+0.90mm PE Insulation+3.0PVC jacket
2)2 Pair Cat3 Telephone Cable
2Px24AWG BC/CCA Conductor+0.90mm PE Insulation+4.2PVC jacket
3)4 Pair Telephone Cable,PTT298 Cable
4Px24AWG BC/CCA Conductor+0.90mm PE Insulation+5.2PVC jacket

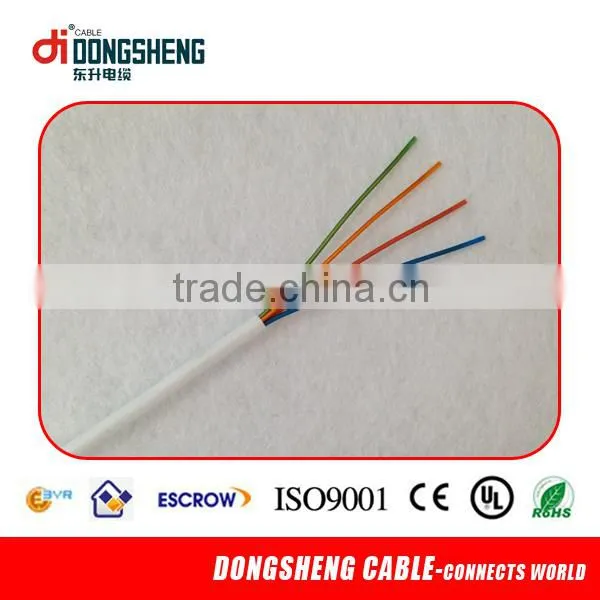

4)4 Core Telephone Cable
4C*24AWG BC/CCA+0.90mmPE+Ripcord+3.8mmPVC Jacket
5) 8 Core Telephone Cable
8C*24AWG BC/CCA+0.90mmPE+Ripcord+5.0mmPVC Jacket
6) Telephone Cable 3Pair,5Pair,10Pair,25Pair
7) Customers' specifications are welcomed.

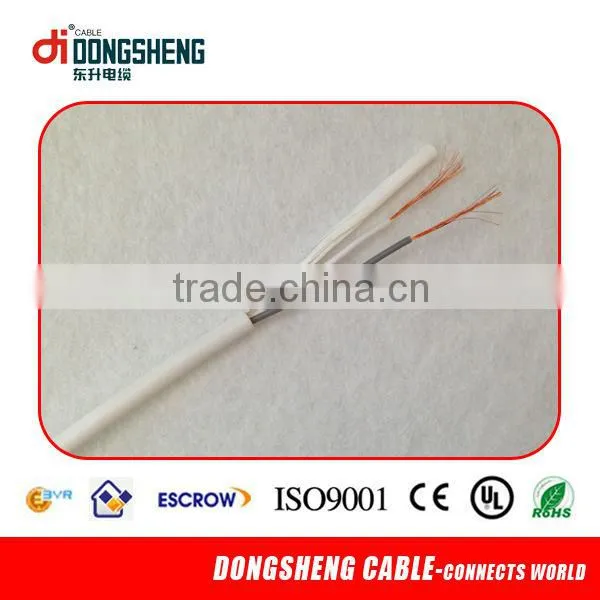

Telephone Drop Cable
1)figure 8 and figure B or Figure D, 1.02mm copper or CCS, PE or 2)PE or PVC jacket
Drop wire telephone cable
1.Conductor: 1.02mm or 0.64mm CCS or Bare copper. conductor diameter can be produced as per customer request.
2. PVC or PE jacket.
3. 305meters,500meters or 1000meters per roll.
1.PHYSICAL DIMENSIONS |
|
|
|
Diameter of Conductor,mm |
1.02mm +/-0.01 |
||
Min. insulation Thickness.mm |
1.00mm |
||
OVERALL DIAMETER |
Major .MM |
6.85-7.50 |
|
Minor.MM |
3.85-4.5 |
||
H.PHYSICAL TESTS |
|
|
|
A.Conductor |
|
|
|
Elongation, % |
1.5 |
||
Tensile strength,kg/mm2 |
128 |
||
B.Insulation |
|
||
Elongation, % |
7.5 |
||
Tensile strength,kg/mm2 |
0.0186 |
||
ELECTRICAL TESTS |
|
||
Conductor Resistance,ohm/KM |
80.4 |
||
2 Pair Cat3 Telephone Cable Application:
10 Base-T
100 Base-TX
100VG-AnyLan
1000 Base-T(Gigabit Ethernet)
155 Mbps ATM
622 Mbps ATM
Data Sheet:
Frequency (Mhz) |
RL (dB) |
ATT (dB/100) |
NEXT (dB) |
PS. NEXT (dB) |
1 |
20 |
2 |
65.3 |
62.3 |
4 |
23 |
4.1 |
56.3 |
53.3 |
8 |
24.5 |
5.8 |
51.3 |
48.8 |
10 |
25 |
6.5 |
50.3 |
47.3 |
16 |
25 |
8.2 |
47.3 |
44.3 |
20 |
25 |
9.3 |
45.8 |
42.8 |
25 |
24.3 |
10.4 |
44.3 |
41.3 |
31.25 |
23.3 |
11.7 |
42.9 |
39.9 |
62.3 |
20.7 |
17 |
38.4 |
35.4 |
100 |
19 |
22 |
35.3 |
32.3 |
Packing:
1) With plastic/paper spool:100m,200m,300m per reel
2) With PE film:100m,200m,300m per reel
3) Out packing:Carton
If you have any interest in our products,
Contact us any time,We'll answer you in the first time.
24 Hours Available
Contact:Amos
What's app:+86-18758199420
Skype:live:amos_290
Send Inquiry to This Supplier
