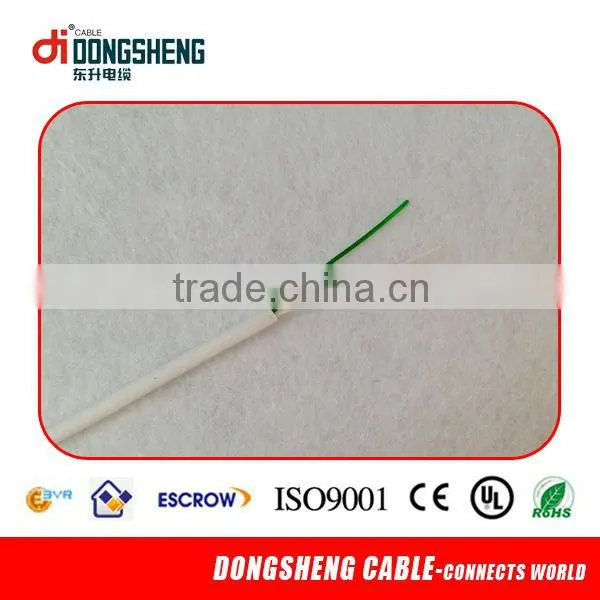

Copper drop wire telephone cable
drop wire telephone cable
1)figure 8 and figure B or Figure D, 1.02mm copper or CCS, PE or 2)PE or PVC jacket
drop wire telephone cable
1.Conductor: 1.02mm or 0.64mm CCS or Bare copper. conductor diameter can be produced as per customer request.
2. PVC or PE jacket.
3. 500meters or 1000meters per roll.
1.PHYSICAL DIMENSIONS |
|
|
|
Diameter of Conductor,mm |
1.02mm +/-0.01 |
||
Min. insulation Thickness.mm |
1.00mm |
||
OVERALL DIAMETER |
Major .MM |
6.85-7.50 |
|
Minor.MM |
3.85-4.5 |
||
H.PHYSICAL TESTS |
|
|
|
A.Conductor |
|
|
|
Elongation, % |
1.5 |
||
Tensile strength,kg/mm2 |
128 |
||
B.Insulation |
|
||
Elongation, % |
7.5 |
||
Tensile strength,kg/mm2 |
0.0186 |
||
ELECTRICAL TESTS |
|
||
Conductor Resistance,ohm/KM |
80.4 |
||
Note:
1) Conductor: BC, TC, CCA solid or stranded conductor
2) From 1 pair to 100 Pairs, shield or non-shield
3) Colour coded PP or PE insulation
Characteristic:
Rated temperature: 60 degree
Rated voltage: 150V
Application:
Telephone handset cord or line cord
Products Photos:
Packing:
100M/ROLL. 200M/ROLL, 500M/Wooden reel,or 300m/Plastic Reel
Certificate:
We have pass the IS09001, CCC, Rohs, CE, and UL, in order to meet your market requirement.
Factory and Production line
We use the bue advance production equipment for LAN CABLE,TELEPHONE CABLE, and COAXIAL CABLE, ensure the high performance in your project and system.
Exhibition Trade Show
We attend to 3-5 Fairs in Hongkong, Guangzhou, and aboard, to meet with the old customer, also show our company to the future new customers.
More types of Cables we do
We also produce these cables for more than 20 years, RG6,RG11,RG59 COAXIAL CABLE, TELEPHONE CABLE, ALARM CABLE.MICROPHONE CABLE etc.
Hangzhou Lin`an Dongsheng Cable Co.,Ltd, was established in 1991,located at the foot of the Tianmu Mountain in Lin`an city, is 28km away from Hangzhou City, which is close to Shanghai port and Ningbo port with facilitated transportation
As a professional cable manufacturer in china,We specialized in producing of Coaxial Cable RG59,RG6,RG11 CATV and CCTV, Lan Cable Cat3,Cat5e,CAT6 UTP/FTP /SFTP for Indoor and Outdoor,Telephone Cable,Combined Cable,and cable accessories etc. We are covering 1,6000 square meters,including standard workshops and warehouse,to ensure your goods in goods production condition.
Meanwhile,Our company has obtained ISO9001,also our products has passed CE,RoHS ,UL certificate, which is Promise high quality cable .
Dongsheng Cable products have been exported to Southeast Asia ,Middle East, European,South America,USA and gain good
reputation.We will meet client requirements with top quality,advanced technology, perfect management and excellent service
