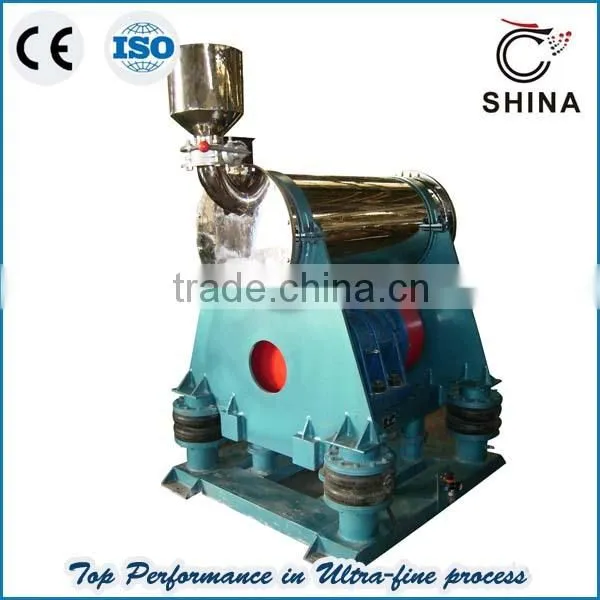

Help CenterSmall Crushers for Sale
Related Products
Specifications
1.CE cerficate;ISO9001:2008
2.Long using life
3.Long quality guaranteen
4.best after-sales service all over the world
Performance Features
- Laboratory equipment no any rotation part, and very easy to dismantle and clean;
- Smallest space occupation,
- Smallest output for one batch, and 5g at least for a production;
- Highest collection efficiency, and 99% of product can be collected;
- Product size variable between d50: 2-100micron;
- Can be integrated inside the isolation cover.
- Production capacity differs to the product fineness, normally around 2-10kg/hr
- Main part is processed from one piece of steel by CNC machine, no welding seam;
- Bundantful sucessful running projects, safe to buy.
There are two kinds of construction materials: 1. carbon steel plateform with stainless steel 304 grinding tube; 2. whole stainless steel 304 meet GMP/FDA cerficate. Customers can choose according the situation of project.
Widely used for chemical, minerals, building materials, metallurgy, abrasive, ceramics, fire-proof material, medicines, pesticides, food, health supplies, new materials and other industries.
|
Type Parameters |
MZ03 |
MZ10 |
MZ30 |
MZ50 |
MZ100 |
MZ200 |
MZ300 |
MZ500 |
Tube Volume L |
3 |
10 |
30 |
50 |
100 |
200 |
300 |
500 |
Feeding Size mm |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
Productn Fineness um |
10~150 |
10~150 |
10~150 |
10~150 |
10~150 |
10~150 |
10~150 |
10~150 |
Production Capacity kg/h |
0.5~1 |
1~5 |
5~20 |
10~50 |
20~150 |
50~300 |
100~500 |
150~800 |
Installation Power kw |
0.37 |
0.75 |
1.5 |
2.2 |
3.7 |
7.5 |
11 |
15 |
Remarks: Capacities based on limestone (density 2,7 kg/dm3)
Feed capacity approx.3-times fines capacity
Fines content in fee approx.70%
Data depending on tests
Quality guarantee is for one year. During one year, if there is any problem or destroy (non-artificial damage), we will repair or change for free. After one year, if there is any problem, we will still supply good service, and we will charge cost if parts needed to be changed.
- Flow sheet of the process
- Electrical interlocking sequence
- Dimension drawings for supplied equipment
- Operation manuals
- Technical information and specification for local supply
- Engineering drawings for local supplies
- Technology data and drawings for installation and commissioning
- Spare parts list
