Specifications
pvc and aluminum foil coating machine1.face, back coating together
2.500-650pcs/hour
3.need 8 people
ating,cut together
pvc and aluminum foil gypsum board coating machine
NAME |
MAIN PART |
TOTAL WEIGHT |
TECHNICAL PARAMETERS |
|||||
|
|
COATING MACHINE |
LENGTH:2M,WIDTH:2.3M |
7000kgs |
PRODUCING CAPACITY |
500-650PCS/ONE HOUR |
|||
POWER |
380 V/220V |
|||||||
PRESSING MACHINE |
LENGTH:2M, |
|
FACING MACHINE :3.0KW/h |
|||||
PRESS AND DELIVER:5.2KW/h | ||||||||
CUT MACHINE |
LENGTH:1.8M,WIDTH:1.2M |
CUT MACHINE :30KW/h |
||||||
LENGTH*WIDTH*HEIGHT(READY PRODUCTION LINE ) |
55M*1.8M*1.5M |
|||||||
DUST CONTROL |
LENGTH:5M, |
NEED WORKERS |
8 |
|||||
FIX AND DEBUG TIME |
ABOUT 10 DAYS |
|||||||
THE GYPSUM BOARD COULD MAKE |
THICKNESS 6mm---16mm |
|||||||
COMPARE WITH SAME INDUSTRY | ||
COMPARE PROJECT |
SAME INDUSTRY |
OUR PRODUCTION LINE |
PRODUCTIVE TECHNOLOGY |
coat the aluminum and then PVC and then cut , various process ,need more people , the intensity of labor is big , and cost expensive |
coat the PVC and aluminum together ,flow production ,save the transfer cost and the loss ,the intensity of labor is more smaller , and cost more cheaper |
LABOR COST |
coating 11 peoples ,cut need 5,total: more than 16 |
coating 5 peoples ,cut need 3 , just need 8 peoples |
THE METHOD OF COATING |
paint the glue on gypsum board , if the gypsum board not smoothly , easy crack |
paint the glue on PVC or aluminum , reduce or stop crack |
GLUE USE LEVEL OF FACE |
400-500PCS/BARREL |
500-600PCS/BARREL |
GLUE USE LEVEL OF BACK |
600-700PCS/BARREL |
1000-1100PCS/BARREL |

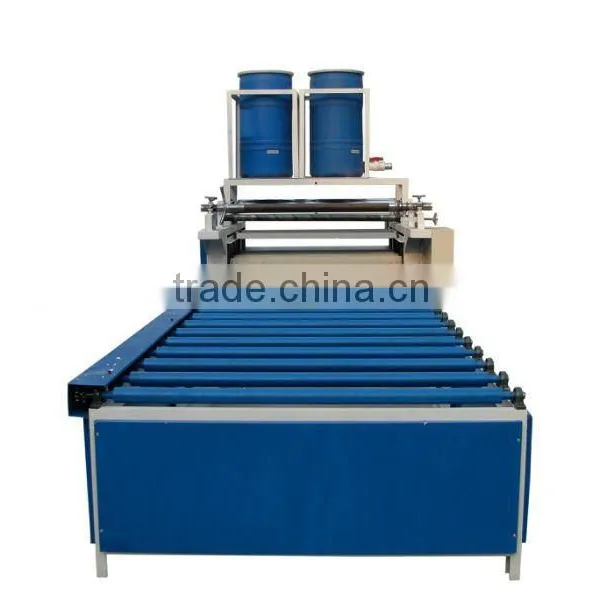

COATING MACHINE AS BELOW
PRESS MACHINE
CUT AND DUST CONTROL MACHNE
THE TOTAL PRODUCTION LINE
THE PRODUCTION
