Help CenterSuperfine Mineral Powder Grinding System Air Flow Powder Classifier Separator
Related Products
-
Ultrafine Powder Air Classifier for Sale Air SeparatorUS$ 4,500 - 60,000MOQ: 1 Unit -
Multi-Wheel Air Classifier/ Air Separator Series ATPUS$ 5,000 - 60,000MOQ: 1 Unit
-
Ultra Micron Separator Machine Dry Powder Classifier ITCUS$ 8,000 - 70,000MOQ: 1 Unit
-
Germany Technology Powder Separator Machine ITCUS$ 8,000 - 70,000MOQ: 1 Unit
-
Ultrafine Dry Powder Classifying Machine Air Separator MillUS$ 4,000 - 60,000MOQ: 1 Unit
Process:

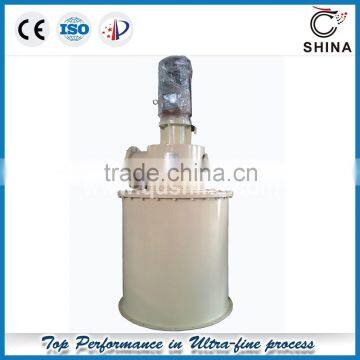

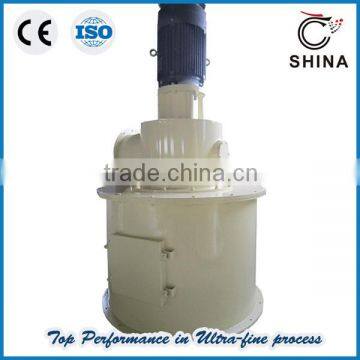

ITC air classifier is designed for fine classification in the range of 5~150μ.
This type of classifier belongs to the family of turbo classifier.
The classifier ITC is a so-called deflecting wheel separator.
The feed material is transported “airborne” by the primary air into the classifying chamber.
The secondary air, entering the classifier chamber via a ring of guide vanes, has to disperse agglomerates.
Mainly the classifier is integrated in a grinding-classifying circuit.
For this application a high feed rate with a good yield is assured.
The materials of construction are selected for highest strength during production.
The wheel is placed in a vertical position to get a good dispersion of the feed product.
The machines of the series ITC can be protected against wear.
Feature:
- Fine classification with high performance
- Direct and belt drive
- Feed in the classifying zone by air
- Adjustment of cut point by variable rotor speed
via frequency converter
- High feed rates possible
- Construction materials mild steel, stainless steel or wear protected
- The solid construction and the selected materials of construction give a long life time with low maintenance costs and low investment
Advantage:
Higher Capacity
Special designed for coarse final product with higher capacity. Secondary air design improves the classifying efficiency.
Higher Hardness Material
Inside are easy for wear-resistant with kind of material, which can be suitable for material with higher hardness.
Higher Flexible Design
According to customers' workshop height, the motor driven way can be direct or belt. Inlet also can from top or from bottom.
Technical Data:
Note: 1. Capacity depends on material properties and final product fineness
2. Product Fineness is adjustable according to different technical data

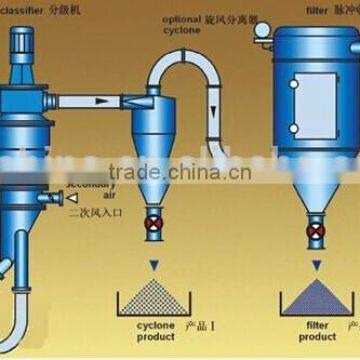

Layout of air classifier series ITC
Customers Say
“I do rear earth polishing powder business for more than 20 years. After I visit Qingdao shina factory, and checking the quality of air jet mill and other machines, I made decision to buy from Qingdao shina. Now, in my workshop, there is one set of air jet mill QWJ10 production line and one set of air classifier IMC 100 production line. Both of them are running very well. Thank Qingdao shina for its good quality and service. ”
--- Mr. Yu from taian, Shandong, China
“Good design, professional technology, great service, Qingdao shina—not one big factory on factory size, but its powerful on technology is really strong. Wish we can cooperate with each other again.”
--- Mrs. Mistakidou from Greece
“I bought many machines from China. But Qingdao shina really gives me great impression. They use good materials for each parts, they won't delete each small “machinery process”, like fire-treatment for some parts to make sure its quality. I have bought one unit of air classifier ATP315 for GCC powder and draft fan, one set of air jet mill QWJ20 production line for talc powder. I recommend QINGDAO SHINA.”
--- Mr. Muhammad from Pakistan
Packaging Solutions：
1. Nude Packing 2. Wodden Box Packing 3. Wooden Pallet
Delivery Photos (Parts)：
Outside and Inside of Our Factory:
Our Comfortable Office:
Our Kinds of High Precision Machining Equipments:
After-sales Service:
We have one good after-sales team.
All the engineers have experience more than 5~10 years and can speak very good English.
We supply services for engineering, consultancy, supervision erection and commissioning with test run.
We will reply customers within 24 hours as soon as possible to solve problems.
Quality Guarantee Period:
If the machine is damaged because of the design, manufacture or the materials of the machine within one and half year, we will repair it or change the parts for free;
If the machine is damaged because of man-made cause or outside the warranty period, we will also provide warmly service, and we only charge the cost of parts if necessary.
