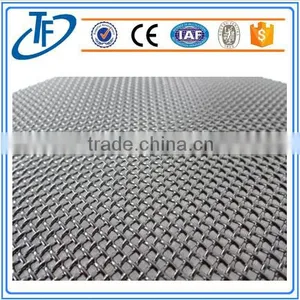

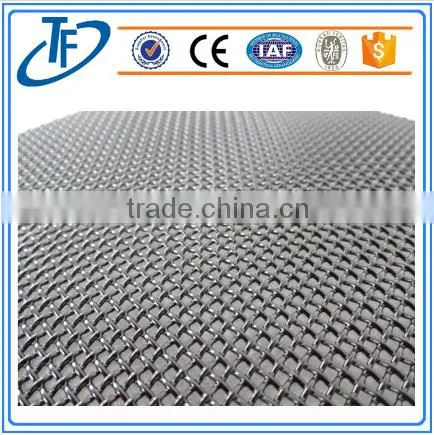

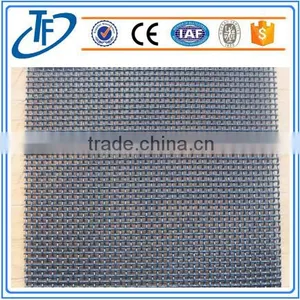

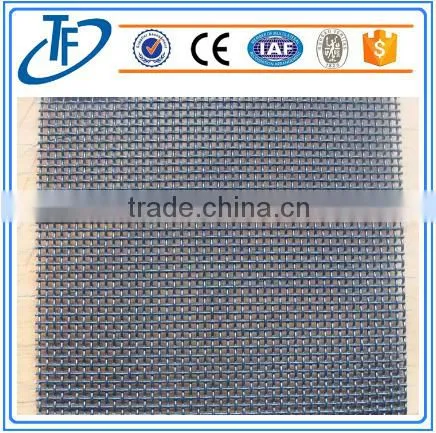

304 316L stainless steel wire mesh /stainless steel crimped wire mesh /stainless steel screen wire mesh

FOB Price

USD $1.00 - $7.00 / Kilometer

100 Kilometers(Min.Order)

Supply Ability 1000 Roll / Rolls per Month
Port TIANJIN
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Standard:	AISI, ASTM, DIN, EN, GB, JIS	Grade:	300 Series	Wire Gauge:	0.02-5mm
Length:	Customer Request	Application:	spring, screw, rope, wire mesh weaving	Certification:	Other, AISI,ASTM,DIN,EN,GB,JIS
C Content (%):	Standard Level	Si Content (%):	1.00%	Place of Origin:	Hebei, China
Brand Name:	TUOFANG	Model Number:	316

Product Description

304 316L stainless steel wire mesh /stainless steel crimped wire mesh /stainless steel screen wire mesh

Product Description

Specifications

304 stainless steel wire

certification:ISO9001

material:202,302,321,304,316,316L

feature:surface smooth,

304 stainless steel wire

material:202,302,321,430,410,304,304L,308,309,310,312,314,316,316L

diameter:0.025mm-32mm

category:hard wire,soft wire,

feature:surface smooth,corrosion-resistant,good softness

uses:wire-drawing,weaving of wire mesh,soft pipe,beam of cabinet, steel wire rope, fiter material and equipment,spring,etc.

Chemical composition of stainless steel wire:

AISI Grade	Chemical Composition (%)
	C	Si	Mn	P	S	Ni	Cr	Mo
304	≤0.08	≤1.00	≤2.00	≤0.045	≤0.030	8.00~10.50	18.00~20.00	-
304H	>0.08	≤1.00	≤2.00	≤0.045	≤0.030	8.00~10.50	18.00~20.00	-
304L	≤0.030	≤1.00	≤2.00	≤0.045	≤0.030	9.00~13.50	18.00~20.00	-
316	≤0.045	≤1.00	≤2.00	≤0.045	≤0.030	10.00~14.00	10.00~18.00	2.00~3.00
316L	≤0.030	≤1.00	≤2.00	≤0.045	≤0.030	12.00~15.00	16.00~18.00	2.00~3.00
430	≤0.12	≤0.75	≤1.00	≤0.040	≤0.030	≤0.60	16.00~18.00	-
430A	≤0.06	≤0.50	≤0.50	≤0.030	≤0.50	≤0.25	14.00~17.00	-

Size of Stainless Steel Wire

Wire Diametermm)	Tolerancemm	Max.Deviation Tolerancemm
0.020-0.049	+0.002 -0.001	0.001
0.050-0.074	±0.002	0.002
0.075-0.089	±0.002	0.002
0.090-0.109	+0.003 -0.002	0.002
0.110-0.169	±0.003	0.003
0.170-0.184	±0.004	0.004
0.185-0.199	±0.004	0.004
0.200-0.299	±0.005	0.005
0.300-0.310	±0.006	0.006
0.320-0.499	±0.006	0.006

Our Services

We are the professional manufacture of holland wire mesh and any other wire mesh. We have experience in this line.Based on our experience, with our resonable price,high quality and considerate servise.Our products enjoy high reputation in our market.

Company Information

Our company is located in the biggest wire mesh production base - Anping County, the home town of wire meshes in the worldwide . Now we are one of the leading manufacturers of wire meshes. With reasonable prices and good services, we have got recognition and trust among customers worldwide.

Our main products are all kinds of wire mesh products including gabion box,358 fence,razor wire, Bull bar network,heavy duty security fencing,welded wire mesh,wind or dust nets,airport fence,wall spike,chain link fence,horse gate,palisade fence,temporary fence,peach shaped fence,pet cage and so on.

FAQ

1. Q:Can I get some samples?
     A:Yes , we can supply the free sample , but the shipping cost be paid by our customers.

2. Q:Is there a discount?
     A:Different quantity has different discount.

3. Q:How about delivery leadtime.
     A:Delivery leadtime :about 7-10 days  after confirmed.(Chinese holiday not included)

4.Q:What is the payment terms ?
    A:30% by T/T in advance , the balance against the copy of B/L
        L/C at sight

5. Q:What is your available port of shipment?
    A:TianJin QingDao ShangHai

6.Q:How many methods for surface teatment?
    A: Galvanizing     PVC coated       powder coated

7.Q:What kind of packing you will use?
    A:Packing with pvc film and will packing in steel pallet , strong and safe.
