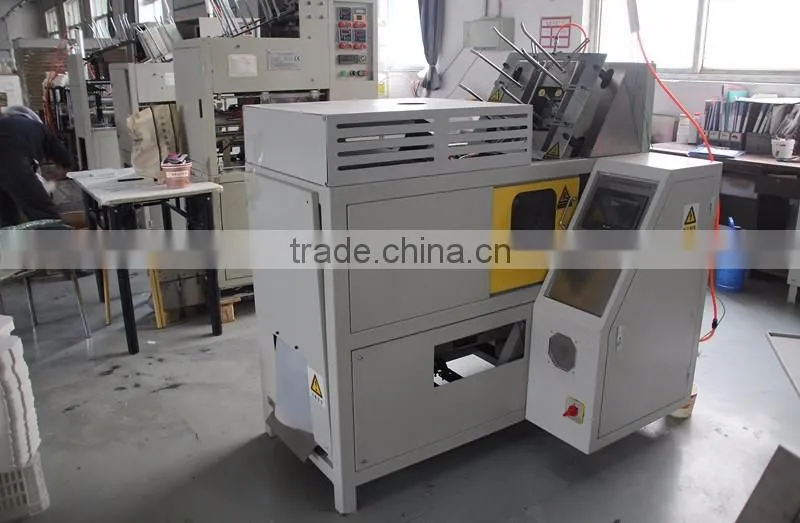

Fully automatic paper meal box direct forming machine
Technical details of our paper box forming machine
Model |
THCJ-C |
Rated productivity |
19-22pcs/min / 25-30pcs/min with PLC |
Raw material of box |
170-360g/m2, one side PE coated paper |
Molding temperature |
160-200℃ |
Air pressure |
0.7-0.9Mpa |
Air flow volume |
1.08m3/min |
Total power |
3.3kw |
Electrical supply |
220V 50Hz |
Weight |
350kg |
Dimension |
1300*880*1300mm |
Size of box |
Mold can be changed to produce different size |
Additional equipment |
air compressor |
Forming method |
Heat sealing |
Heat method |
Heat pipe, single-heat pipe single-control |
Products size |
Fold size width max 310mm, height max 50mm |
Model |
THP-A1 |
Electrical Supply |
220V 50Hz |
Total power |
4.2KW |
Rated Productivity |
15-25pcs/min(per working position) |
Weight |
250KG |
Package size (L×W×H) |
1200 x 500 x 1400mm |
Air pressure |
0.6mpa |
Working air volume |
1m3/min |
|
Remark:The cover of machine made by stainless steel We can make the paper cup machine suitable for your requirement | |
| Model | THJ-A |
| Speed | 50 pcs/min |
Size range of products |
250 x300mm |
Max Paper Width |
400mm |
Suitable Material |
100-400g/m2 PE Coated paper |
| Total Power | 3kw |
| Machine weight | 1000kg |
| Machine size | 2400 x 1400 x 1700 mm |
Working Air Source: |
Air pressure 0.4-0.6Mpa (Need to buy compressor) |

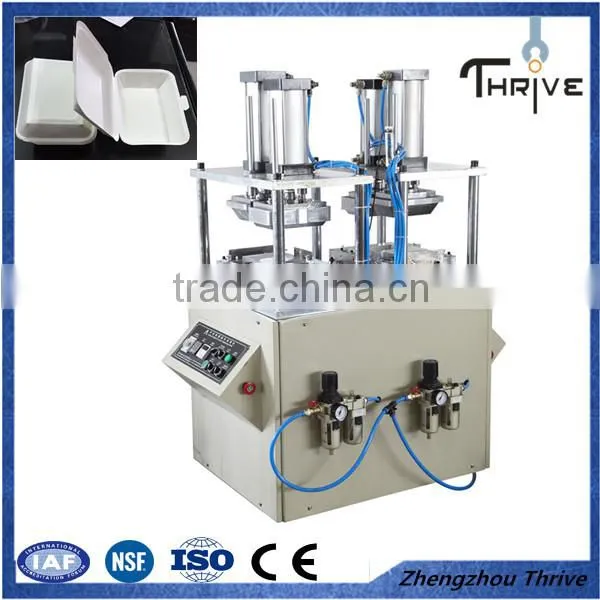

Brief introduction of model THP-A1
With two independent working position, our Semi-Automatic Paper Meal Box forming machine can produce paper containers various in size.
Thanks to it replaceable moulds, this machine is applied to process so many containers in different size and different shape, like paper meal box, paper bowl, paper plate, and paper dish.
Characteristics of model THP-A1
This type paper dinner container forming machine is a semi-automatic equipment, it has one working places with one kinds of molds.
There is an inductor in the machine. It can perform a role of protecting.
The inductor will stop the machine and protect your hands if you put your hands in it.

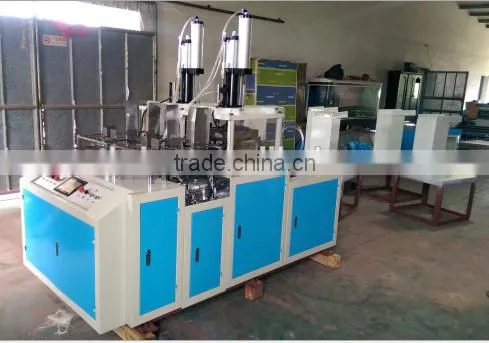

Brief introduction of model THJ-A
THJ-A automatic paper box forming equipment, new technology introduced from abroad, according to the self innovation and improvement.
The formation of fast, easy to operate and so on. This machine adopts intelligent computer control heating device, suitable for single PE and double PE coated paper coated paper.

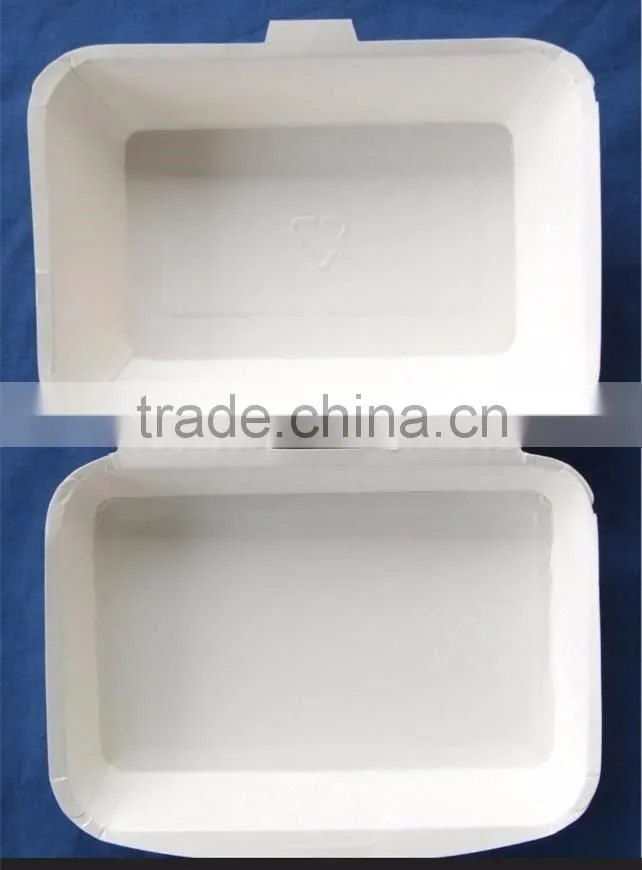

THJ-A automatic paper lunch box forming machine through the automatic feed paper, heating and hot pressing molding (bonding boxes cover half rounded,and four right angles, four corner), and automatic collection of the continuous process for the production of single-cell disposable paper boxes, paper boxes.

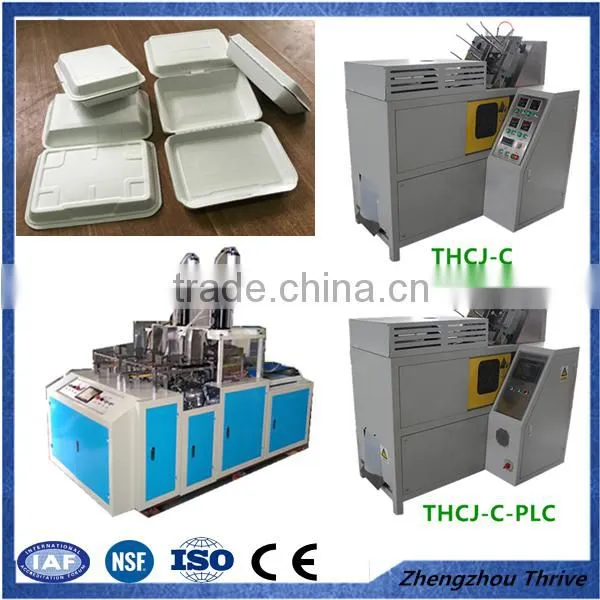

Features of model THCJ-C
1 Mold can be changed, to meet many customers’ requirements
2 Patented products.
3 The device has full-featured, stable performance, beautiful appearance, high-speed, environmental protection, low noise, easy to operate, easy to maintain closed mechanical structure , to ensure safe.
4 high pass rate, low waste
5 Automatic power-off function to protect the safety of operating personnel. One button start to produce, easy to operate, high degree of automation.
6 production stability, good consistency of equipment
7 Muti-machine combinations form of pipeline operations, saving labors.
8 the microcomputer count , it is clear and intuitive to know the production quantity.
9 single-heat pipe single-control, low power consumption
10 the composite molding technology, lunch boxes one time forming
11 it has equipment to stack box automatic
12 it can choose PLC operating system, easier to operate, lower failure rate, higher stability.
Package :
Our paper lunch box forming machines are putted in strong wooden cases.
Delivery time :
We will send the machine within 3-15 working days after receiving the down payment
Pre-sale service:
1,Recommend the most suitable machine for customers,especially according
customers demand
2,Strictly control easy production line and easy parts,to ensure machine quality.
3 every machine is tested before delivery,to ensure machine function well.
After-sale service:
1,one year warranty
2,lifelong free technical support and spare parts support
3,Help customers solve problem rapidly
Warranty:
1,Wearing parts can be free replacement within a year
2,The warranty does not include changing accessories
3,The company will not be responsible for the damage caused by the people.
